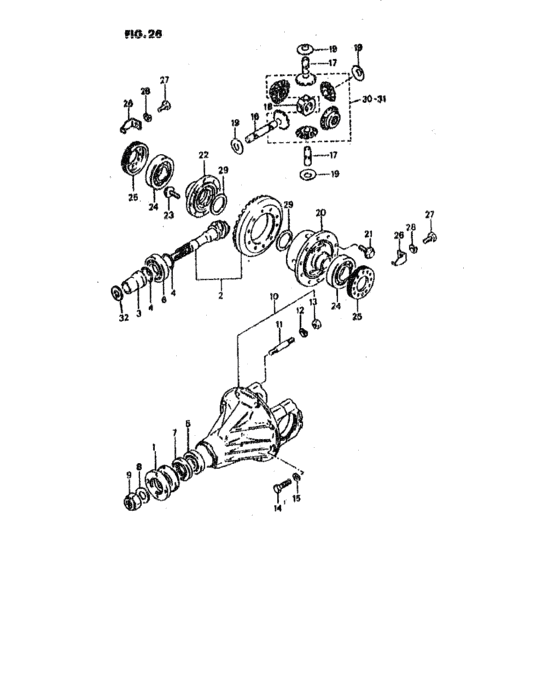

Differentiel avant-arriere (DIFFERENTIEL AVANT-ARRIERE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-80401-000
フランジ,ユニバーサルジョイント
|
27110-80401-000 |
— | ||
| replacement | |||||
|
1
|
1
27110-80402-000 FLANGE,UNIVERSAL JOINT |
27110-80402-000 |
US $38.40 |
||
|
2
|
2
27311-A8000-200
Couple conique
|
27311-A8000-200 |
— | ||
|
3
|
3
27315-86000-000
Entretoise roulement
|
27315-86000-000 |
— | ||
|
4
|
4
09181-30001-000 SHIM(30X38X0.3) |
09181-30001-000 |
US $8.50 |
||
|
5
|
5
09265-A2500-500
Roulement conique av
|
09265-A2500-500 |
— | ||
|
6
|
6
09265-A3000-300
Roulement avant
|
09265-A3000-300 |
— | ||
|
7
|
7
09283-35008-000
Seal, oil (35x62x10)
|
09283-35008-000 |
— | ||
| replacement | |||||
|
7
|
7
09283-35052-000 SEAL,OIL(35X62X14.8) |
09283-35052-000 |
from US $10.34 |
||
|
8
|
8
09160-19010-000
Washer
|
09160-19010-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-19022-000 WASHER(19X32X3.2)Washer (19x32x3.2) |
09160-19022-000 |
from US $1.92 |
||
|
9
|
9
09159-18003-000 NUT |
09159-18003-000 |
from US $1.92 |
||
|
10
|
10
27450-63203-000
Carrier assy, differential
|
27450-63203-000 |
— | ||
| replacements | |||||
|
10
|
10
27450-80713-000 CARRIER ASSY,DIFF |
27450-80713-000 |
US $216 |
||
|
10
|
10
09265-25039-000 BEARING(25X62X18.25) |
09265-25039-000 |
US $27.20 |
||
|
10
|
10
09265-30018-000 BEARING(30X72X20.75) |
09265-30018-000 |
from US $38.40 |
||
|
11
|
11
09108-10014-000
スタッドボルト
|
09108-10014-000 |
— | ||
|
12
|
12
08321-A3110-600
Spring washer
|
08321-A3110-600 |
— | ||
|
13
|
13
08310-11106-000
Nut
|
08310-11106-000 |
— | ||
| replacement | |||||
|
13
|
13
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
14
|
14
01707-08253-000
Vis
|
01707-08253-000 |
— | ||
|
15
|
15
08321-83108-600
Rondelle
|
08321-83108-600 |
— | ||
|
16
|
16
27351-63200-000
シャフト,ピニオン,NO.1
|
27351-63200-000 |
— | ||
| replacement | |||||
|
16
|
16
27555-53F00-000 SHAFT,DIFF SIDE PINION |
27555-53F00-000 |
US $26.31 |
||
|
17
|
17
27355-63200-000 SHAFT,PINION NO.2 |
27355-63200-000 |
US $20.06 |
||
|
18
|
18
27356-A6300-000
Joint, diff pinion shaft
|
27356-A6300-000 |
— | ||
|
19
|
19
09164-15003-000 WASHER |
09164-15003-000 |
from US $0.95 |
||
|
20
|
20
27411-80000-000 CASE,DIFF |
27411-80000-000 |
US $142.42 |
||
|
21
|
21
09103-10028-000
Bolt, oil pump drive gear
|
09103-10028-000 |
— | ||
| replacement | |||||
|
21
|
21
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear |
09103-10290-000 |
from US $1.76 |
||
|
22
|
22
27421-80000-000
CASE,DIFF
|
27421-80000-000 |
— | ||
|
23
|
23
09103-08030-000
ボルト,8X18.5
|
09103-08030-000 |
— | ||
| replacement | |||||
|
23
|
23
09103-08348-000 BOLT(8X18.5) |
09103-08348-000 |
US $1.76 |
||
|
24
|
24
09265-A4100-100
Bearing
|
09265-A4100-100 |
— | ||
|
25
|
25
27461-63201-000 ADJUSTER,DIFF SIDE BEARING |
27461-63201-000 |
US $8.48 |
||
|
26
|
26
27462-63202-000 PLATE,BEARING LOCK |
27462-63202-000 |
US $2.74 |
||
|
27
|
27
01104-08126-000
Vis
|
01104-08126-000 |
— | ||
| replacement | |||||
|
27
|
27
01500-08127-000 Bolt |
01500-08127-000 |
from US $0.76 |
||
|
28
|
28
08321-83108-600
Rondelle
|
08321-83108-600 |
— | ||
|
29
|
29
09160-35006-000 WASHER(35X46X0.9) |
09160-35006-000 |
from US $1.60 |
||
|
30
|
30
27300-73832-000
Jeu de pignons
|
27300-73832-000 |
— | ||
| replacement | |||||
|
30
|
30
27300-73835-000
Bevel pinion & gear set
|
27300-73835-000 |
— | ||
|
31
|
31
27300-73822-000
Jeu de pignons
|
27300-73822-000 |
— | ||
| replacement | |||||
|
31
|
31
27300-73824-000
Diff side gear set,rear
|
27300-73824-000 |
— | ||
|
32
|
32
09181-26001-000 SHIM(26X32.5X0.3)Washer (26x32.5x0.3) |
09181-26001-000 |
US $14.40 |
||
