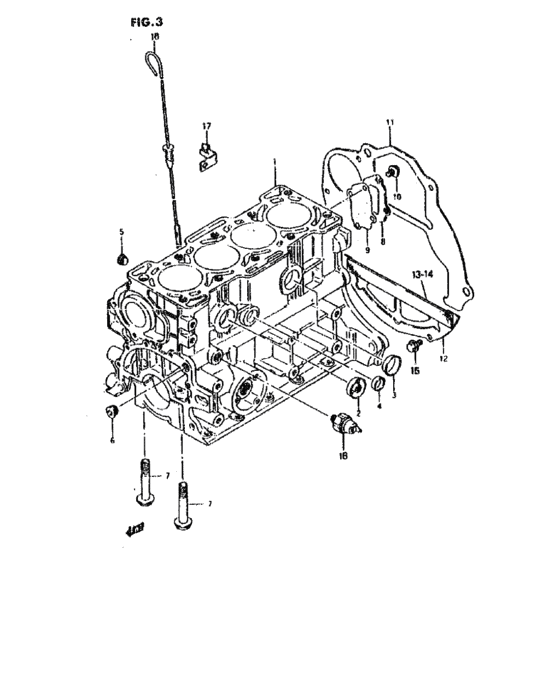

Ensemble bloc cylindre (ENSEMBLE BLOC CYLINDRE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-80001-000 BLOCK ASSY,CYLINDER |
11200-80001-000 |
US $1,812.88 |
||
|
2
|
2
11250-80000-000
Bouchon de dessablag
|
11250-80000-000 |
— | ||
| replacements | |||||
|
2
|
2
09241-30010-000 PLUG |
09241-30010-000 |
US $2.40 |
||
|
2
|
2
09241-30009-000
Plug
|
09241-30009-000 |
— | ||
|
3
|
3
09241-30002-000
プラグ,OD:30
|
09241-30002-000 |
— | ||
| replacement | |||||
|
3
|
3
09241-30010-000 PLUG |
09241-30010-000 |
US $2.40 |
||
|
4
|
4
09241-20002-000
プラグ
|
09241-20002-000 |
— | ||
| replacement | |||||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.44 |
||
|
5
|
5
09246-A0500-100
Bouchon canal huille
|
09246-A0500-100 |
— | ||
|
6
|
6
09246-06002-000
PLUG
|
09246-06002-000 |
— | ||
| replacement | |||||
|
6
|
6
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
7
|
7
01517-10603-000
Bolt, no.1
|
01517-10603-000 |
— | ||
|
8
|
8
11221-73000-000 PLATE,CYLINDER BLOCK |
11221-73000-000 |
US $2.72 |
||
|
9
|
9
11229-73000-000 GASKET,CYL BLOCK PLATE |
11229-73000-000 |
US $1.76 |
||
|
10
|
10
01514-06103-000
Vis fixation deflect
|
01514-06103-000 |
— | ||
|
11
|
11
11311-80000-000
Plaque carter embray
|
11311-80000-000 |
— | ||
| replacement | |||||
|
11
|
11
11311-82700-000
PLATE,CLUTCH HSG UPPER
|
11311-82700-000 |
— | ||
|
12
|
12
11320-73000-000
プレート,クラッチハウジング,ロア
|
11320-73000-000 |
— | ||
| replacement | |||||
|
12
|
12
11320-73001-000 PLATE,CLUTCH HSG LOWER |
11320-73001-000 |
US $6.77 |
||
|
13
|
13
11322-73000-000
Joint plaque inf
|
11322-73000-000 |
— | ||
|
14
|
14
11323-73000-000
Joint plaque inf
|
11323-73000-000 |
— | ||
|
15
|
15
01514-06103-000
Vis fixation deflect
|
01514-06103-000 |
— | ||
|
16
|
16
16910-80002-000
Tige d'huille
|
16910-80002-000 |
— | ||
|
17
|
17
16915-80000-000 SUPPORTER,OIL LEVEL GAUGE |
16915-80000-000 |
US $12.77 |
||
|
18
|
18
37820-A8200-000
Mono contact huile
|
37820-A8200-000 |
— | ||
