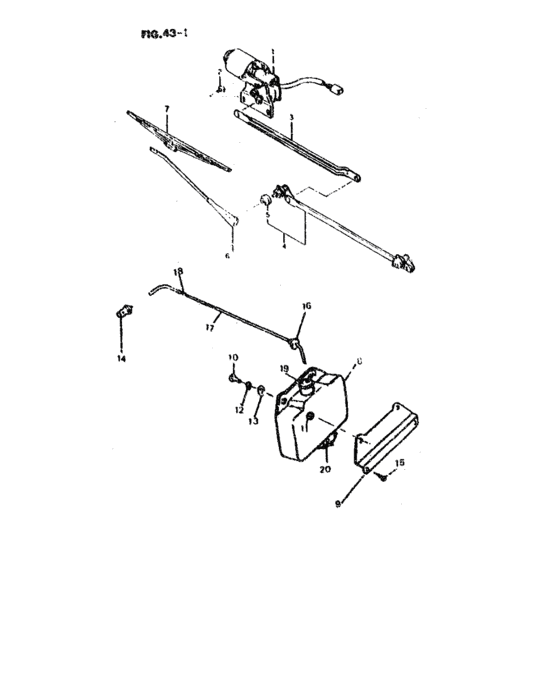

Essuie-glace nippon (ESSUIE-GLACE NIPPON) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-80020-000
Moteur
DROIT 45580 |
38101-80020-000 |
— | ||
| replacement | |||||
|
1
|
1
38101-80031-000 MOTOR ASSY,WIPERDROIT 45580 |
38101-80031-000 |
US $284.80 |
||
|
2
|
2
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
2
|
2
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
2
|
2
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
3
|
3
38255-80000-000 ROD,WIPER LINKDROIT 45500 |
38255-80000-000 |
US $28 |
||
|
4
|
4
38102-80031-000
Biella nippon
|
38102-80031-000 |
— | ||
| replacements | |||||
|
4
|
4
38102-80032-000 LINK ASSY,WIPER |
38102-80032-000 |
US $104 |
||
|
4
|
4
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
US $2.56 |
||
|
4
|
4
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
US $2.24 |
||
|
5
|
5
38274-78000-000 CAP |
38274-78000-000 |
US $1.76 |
||
|
6
|
6
38310-A0003-000
Bras
|
38310-A0003-000 |
— | ||
|
7
|
7
38340-A6364-100
Blade
|
38340-A6364-100 |
— | ||
|
8
|
8
38400-E8000-000
Ensemble reservoir
|
38400-E8000-000 |
— | ||
|
9
|
9
38480-80000-000 NOZZLE ASSY,FR WASHER |
38480-80000-000 |
US $24.32 |
||
|
9
|
9
38400-B8000-000
Suppport
|
38400-B8000-000 |
— | ||
|
10
|
10
01104-06166-000
Bolt
|
01104-06166-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
11
|
11
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
11
|
11
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
11
|
11
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
12
|
12
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
13
|
13
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
14
|
14
38480-80000-000 NOZZLE ASSY,FR WASHER |
38480-80000-000 |
US $24.32 |
||
|
15
|
15
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
15
|
15
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
15
|
15
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
16
|
16
82191-A8000-200
Passacable
|
82191-A8000-200 |
— | ||
|
17
|
17
38400-C8000-000
Tuyanterie eau
|
38400-C8000-000 |
— | ||
|
18
|
18
00000-A0028-200
Soupapee
|
00000-A0028-200 |
— | ||
|
19
|
19
00000-A0029-200
Tank plug
|
00000-A0029-200 |
— | ||
|
20
|
20
00000-A0028-100
Pompe
|
00000-A0028-100 |
— | ||
