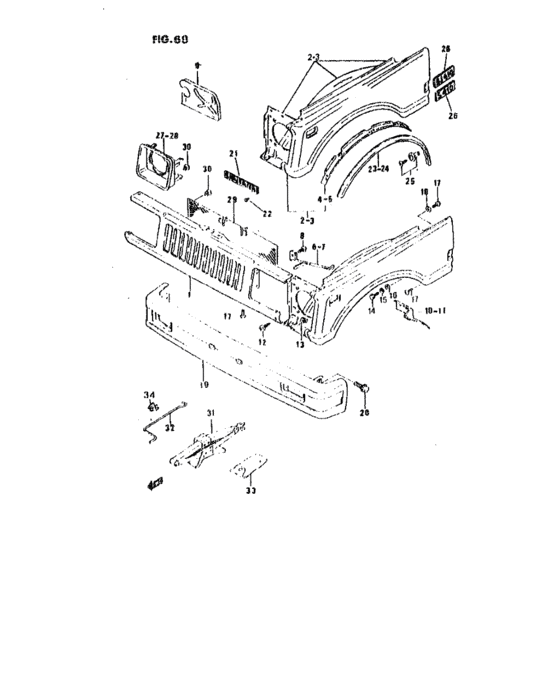

Face avant (FACE AVANT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58100-80003-000
PANEL,FR
|
58100-80003-000 |
— | ||
|
2
|
2
58600-A8015-100
Ensemble aile avant droit
|
58600-A8015-100 |
— | ||
|
3
|
3
58800-A8015-100
Ensemble aile avant gauche
|
58800-A8015-100 |
— | ||
|
4
|
4
58622-80002-000
HOLDER,FR FENDER EXT,R
|
58622-80002-000 |
— | ||
|
5
|
5
58822-80002-000
HOLDER,FR FENDER EXT,L
|
58822-80002-000 |
— | ||
|
6
|
6
58723-80003-000
Support projecteur
|
58723-80003-000 |
— | ||
| replacement | |||||
|
6
|
6
58723-80004-000
Member,headlamp housing rh
|
58723-80004-000 |
— | ||
|
7
|
7
58923-80003-000
Support projecteur
|
58923-80003-000 |
— | ||
| replacement | |||||
|
7
|
7
58923-80004-000
Member,headlamp housing lh
|
58923-80004-000 |
— | ||
|
8
|
8
09125-06036-000 SCREW(6X15) |
09125-06036-000 |
US $1.60 |
||
|
9
|
9
58763-83000-000
Baffle, front fender
|
58763-83000-000 |
— | ||
| replacement | |||||
|
9
|
9
58763-83001-000 BAFFLE,FR FENDER |
58763-83001-000 |
US $9.44 |
||
|
10
|
10
58771-80001-000 LINER,FR FENDER,R |
58771-80001-000 |
US $11.36 |
||
|
11
|
11
58971-80001-000 LINER,FR FENDER,L |
58971-80001-000 |
US $11.36 |
||
|
12
|
12
03241-06128-000
Vis
|
03241-06128-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
13
|
13
09148-A0600-300
Ecrou
|
09148-A0600-300 |
— | ||
|
14
|
14
01104-06128-000
Screw
|
01104-06128-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
15
|
15
08321-A3106-800
Grower washer
|
08321-A3106-800 |
— | ||
|
16
|
16
09160-06016-000
Washer (6x16x1.2)
|
09160-06016-000 |
— | ||
| replacement | |||||
|
16
|
16
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
17
|
17
09125-06036-000 SCREW(6X15) |
09125-06036-000 |
US $1.60 |
||
|
18
|
18
09160-06003-000 WasherWasher (6.7x16x0.8) |
09160-06003-000 |
US $1.82 |
||
| replacement | |||||
|
18
|
18
09160-06129-000 WASHER(6.5X16X1) |
09160-06129-000 |
from US $0.96 |
||
|
19
|
19
71710-80002-000
Pare-chocs avant
|
71710-80002-000 |
— | ||
|
20
|
20
01514-08123-000
Bolt
|
01514-08123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
20
|
20
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
21
|
21
77814-T8000-100
Amagramme santana
|
77814-T8000-100 |
— | ||
|
22
|
22
09229-A0301-100
Rivet, identification plate
|
09229-A0301-100 |
— | ||
|
23
|
23
77111-80000-000
Extension d'aile droit
|
77111-80000-000 |
— | ||
| replacement | |||||
|
23
|
23
77110-80810-281 EXTENSION,FR FENDER,R |
77110-80810-281 |
US $60.72 |
||
|
24
|
24
77121-80000-000
Extension d'aile gauche
|
77121-80000-000 |
— | ||
| replacement | |||||
|
24
|
24
77120-80810-281 EXTENSION,FR FENDER,L |
77120-80810-281 |
US $60.72 |
||
|
25
|
25
09409-07306-000 CLIPClip |
09409-07306-000 |
from US $1.76 |
||
|
26
|
26
77815-B8000-300
Embleme aile sj410
|
77815-B8000-300 |
— | ||
|
26
|
26
77815-A8000-300
Monogramme 3410
|
77815-A8000-300 |
— | ||
|
27
|
27
72111-A8000-200
Support projecteur droit
|
72111-A8000-200 |
— | ||
|
28
|
28
72161-A8000-200
Support projecteur gauche
|
72161-A8000-200 |
— | ||
|
29
|
29
72120-80000-000
NET,FR PANEL
|
72120-80000-000 |
— | ||
|
30
|
30
09409-09302-000
クリップ
|
09409-09302-000 |
— | ||
| replacement | |||||
|
30
|
30
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
31
|
31
09824-A0002-200
Ens cric
|
09824-A0002-200 |
— | ||
|
32
|
32
09824-A0001-700
Levier cric
|
09824-A0001-700 |
— | ||
|
33
|
33
09816-A0008-300
Cle bougie
|
09816-A0008-300 |
— | ||
|
33
|
33
09816-A0007-400
Box, spanner 19
|
09816-A0007-400 |
— | ||
|
33
|
33
09813-A0000-600
Cle 10x12
|
09813-A0000-600 |
— | ||
|
33
|
33
09813-A0000-900
Cle 14x17
|
09813-A0000-900 |
— | ||
|
33
|
33
09812-A0000-700
Pince multiple
|
09812-A0000-700 |
— | ||
|
33
|
33
09814-A0000-100
Screwdriver body
|
09814-A0000-100 |
— | ||
|
33
|
33
09814-A0000-700
Pinces
|
09814-A0000-700 |
— | ||
|
33
|
33
09800-A0018-000
Trousse a outils
|
09800-A0018-000 |
— | ||
|
33
|
33
09811-A0018-200
Trousse
|
09811-A0018-200 |
— | ||
|
34
|
34
09403-09309-000 CLAMPClamp, switch housing |
09403-09309-000 |
US $2.56 |
||
