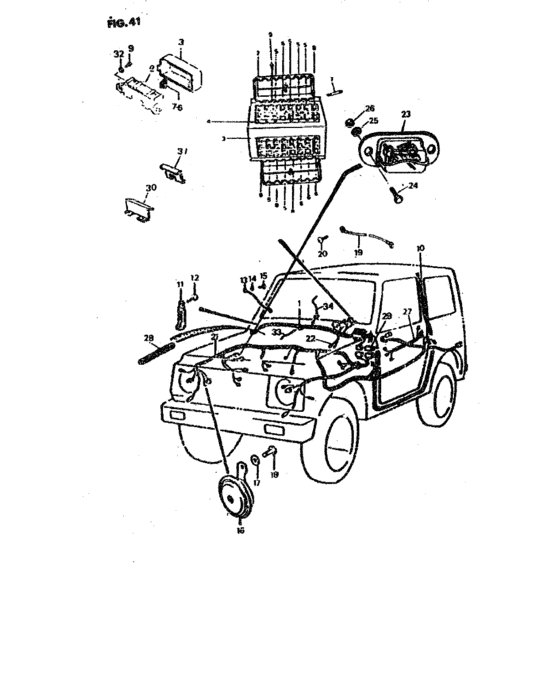

Faisceau (FAISCEAU) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-A8304-000
Faisceau
H 52340 |
36610-A8304-000 |
— | ||
|
1
|
1
36610-A8304-300
Faisceau
DROIT 52341 |
36610-A8304-300 |
— | ||
|
2
|
2
36710-A8001-000
Boite a fusibles
H 52340 |
36710-A8001-000 |
— | ||
|
2
|
2
35160-00000-000
Circuit imprime
DROIT 52341 |
35160-00000-000 |
— | ||
|
3
|
3
36710-B8001-000
Boite a fusibles
H 52340 |
36710-B8001-000 |
— | ||
|
3
|
3
35163-00000-000
Couverc, boite fus
DROIT 52341 |
35163-00000-000 |
— | ||
|
4
|
4
35155-00000-000
Fuse 10 a
DROIT 52341 |
35155-00000-000 |
— | ||
|
4
|
4
00000-A0017-000
Fusible 10a
|
00000-A0017-000 |
— | ||
|
5
|
5
00000-A0017-100
Fusible 15a
|
00000-A0017-100 |
— | ||
|
5
|
5
35156-00000-000
Fuse
DROIT 52341 |
35156-00000-000 |
— | ||
|
6
|
6
00000-A0017-200
Fusible 5a
|
00000-A0017-200 |
— | ||
|
6
|
6
35154-00000-000
Fusible 5 amp
DROIT 52341 |
35154-00000-000 |
— | ||
|
7
|
7
35157-00000-000
Fuse 20 a
DROIT 52341 |
35157-00000-000 |
— | ||
|
8
|
8
36710-C8001-000
Support boite
H 52340 |
36710-C8001-000 |
— | ||
|
9
|
9
03141-04126-000
Screw
|
03141-04126-000 |
— | ||
| replacement | |||||
|
9
|
9
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
10
|
10
36820-A6100-000
Cable plafon mod - v
|
36820-A6100-000 |
— | ||
|
11
|
11
09404-A0641-500
Collier de serrage
|
09404-A0641-500 |
— | ||
|
12
|
12
03141-05128-000
スクリュ
|
03141-05128-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
13
|
13
36821-A8000-000
Cablage
|
36821-A8000-000 |
— | ||
|
14
|
14
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
15
|
15
03111-05128-000
Screw
|
03111-05128-000 |
— | ||
| replacement | |||||
|
15
|
15
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
16
|
16
38500-A8010-000
Avertisseur
|
38500-A8010-000 |
— | ||
|
17
|
17
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
18
|
18
01104-08126-000
Vis
|
01104-08126-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-08127-000 Bolt |
01500-08127-000 |
from US $0.76 |
||
|
19
|
19
39312-A8000-000
Cable vale
|
39312-A8000-000 |
— | ||
|
20
|
20
36620-A8304-000
Faisceau
H 59845 |
36620-A8304-000 |
— | ||
|
20
|
20
36620-B8304-100
Wiring assy,n.2
DROIT 59846 |
36620-B8304-100 |
— | ||
|
20
|
20
03141-06128-000
Mold.inner fix.screw
|
03141-06128-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
21
|
21
36620-I8005-500
Faisceau
H 52340 |
36620-I8005-500 |
— | ||
|
22
|
22
36620-C0005-500
Cable
|
36620-C0005-500 |
— | ||
|
23
|
23
00000-A0022-600
Fusible 50amp
|
00000-A0022-600 |
— | ||
|
23
|
23
36620-B8005-500
Porte fusible
H 59845 |
36620-B8005-500 |
— | ||
|
24
|
24
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
25
|
25
08321-A3105-600
Washer
|
08321-A3105-600 |
— | ||
|
26
|
26
08310-11056-000
Nut
|
08310-11056-000 |
— | ||
| replacement | |||||
|
26
|
26
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
27
|
27
36610-H8304-000
Cable anti-brouillard
|
36610-H8304-000 |
— | ||
|
27
|
27
36610-J8304-000
Cable lampe anti-brouillard
|
36610-J8304-000 |
— | ||
|
28
|
28
35174-00000-000
Soundproof
|
35174-00000-000 |
— | ||
|
29
|
29
35197-00000-000
Diodes box
|
35197-00000-000 |
— | ||
|
30
|
30
35159-00000-000
Upper bracket, fuse box
|
35159-00000-000 |
— | ||
|
31
|
31
35158-00000-000
Lower bracket, fuse box
|
35158-00000-000 |
— | ||
|
32
|
32
02008-00000-000
Washer
|
02008-00000-000 |
— | ||
|
33
|
33
35206-00000-000
Cable alimentation bobine
|
35206-00000-000 |
— | ||
|
34
|
34
35209-00000-000
Cable alimentation starter
|
35209-00000-000 |
— | ||
