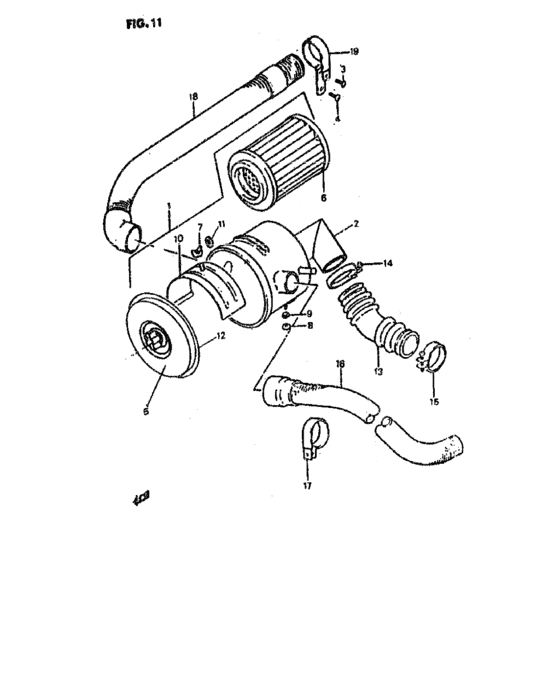

Filtre a air (FILTRE A AIR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-E8002-000
Filtre air mann
|
13701-E8002-000 |
— | ||
|
2
|
2
13701-D8002-000
Boitier arriere
|
13701-D8002-000 |
— | ||
|
3
|
3
03141-05103-000
スクリュ
|
03141-05103-000 |
— | ||
| replacement | |||||
|
3
|
3
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
4
|
4
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
4
|
4
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
5
|
5
00000-A0000-900
Couvercle filtre
|
00000-A0000-900 |
— | ||
|
6
|
6
13780-B7921-000
Filtre air mann
|
13780-B7921-000 |
— | ||
|
7
|
7
00000-A0001-000
Ecrou papillon
|
00000-A0001-000 |
— | ||
|
8
|
8
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
8
|
8
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
9
|
9
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
10
|
10
00000-A0000-800
Correcteur admission
|
00000-A0000-800 |
— | ||
|
11
|
11
00000-A0001-100
Rondelle mann
|
00000-A0001-100 |
— | ||
|
12
|
12
00000-A0001-200
Joint couvercle
|
00000-A0001-200 |
— | ||
|
13
|
13
13881-80010-000 HOSE,AIR CLEANER OUTLET |
13881-80010-000 |
US $47.89 |
||
|
14
|
14
08004-00000-000
Collier
|
08004-00000-000 |
— | ||
|
15
|
15
08003-00000-000
Clamp, upper
|
08003-00000-000 |
— | ||
|
16
|
16
13840-A8000-200
Tube aire chaud
|
13840-A8000-200 |
— | ||
|
17
|
17
09403-A4840-100
Collier
|
09403-A4840-100 |
— | ||
|
18
|
18
13870-A8003-000
Tube aire froid
|
13870-A8003-000 |
— | ||
|
19
|
19
13896-A7910-000
Collier
|
13896-A7910-000 |
— | ||
