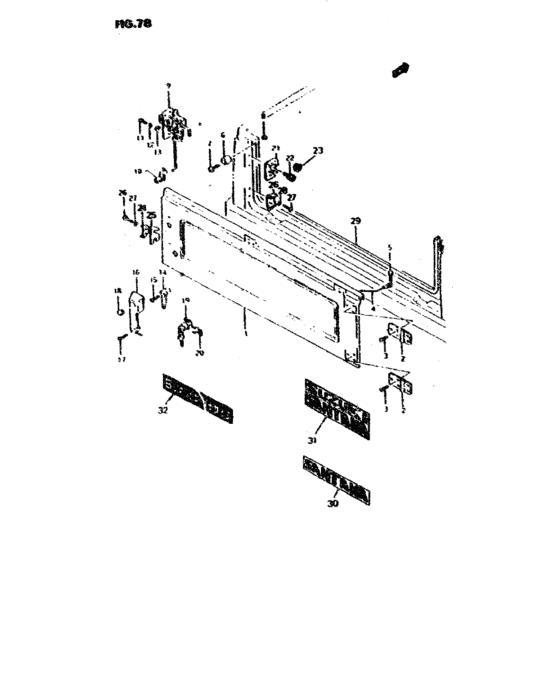

Hayon arriere (HAYON ARRIERE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67700-80060-000
Ens panneau hayon
|
67700-80060-000 |
— | ||
| replacement | |||||
|
1
|
1
67700-80360-000 PANEL ASSY,REAR GATE |
67700-80360-000 |
US $366.16 |
||
|
2
|
2
67790-80031-000
Charniere porte
|
67790-80031-000 |
— | ||
| replacement | |||||
|
2
|
2
67790-80033-000 HINGE,RR GATE |
67790-80033-000 |
US $27.97 |
||
|
3
|
3
09125-00002-000
Vis
|
09125-00002-000 |
— | ||
|
4
|
4
72850-80002-000 CABLE,RR GATE |
72850-80002-000 |
US $8.66 |
||
|
5
|
5
09100-86075-000
Vis
|
09100-86075-000 |
— | ||
|
6
|
6
72875-80001-000
Appui hayon
|
72875-80001-000 |
— | ||
| replacements | |||||
|
6
|
6
09320-06014-000 CUSHION |
09320-06014-000 |
US $27.20 |
||
|
6
|
6
72875-80003-000 CUSHION,REAR GATE |
72875-80003-000 |
US $2.88 |
||
|
7
|
7
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
7
|
7
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
8
|
8
08313-A1106-600
Nut
|
08313-A1106-600 |
— | ||
|
9
|
9
82550-80082-000
LOCK ASSY,RR GATE SIDE,L
|
82550-80082-000 |
— | ||
|
10
|
10
09200-05016-000
Commande distance
|
09200-05016-000 |
— | ||
|
11
|
11
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
12
|
12
08321-A3106-800
Grower washer
|
08321-A3106-800 |
— | ||
|
13
|
13
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
14
|
14
82591-80060-000
HANDLE,REAR GATE LOCK
|
82591-80060-000 |
— | ||
|
15
|
15
02112-06125-000
Screw 6x12
|
02112-06125-000 |
— | ||
| replacements | |||||
|
15
|
15
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
15
|
15
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
16
|
16
82592-80060-000
COVER,RR GATE LOCK HANDLE
|
82592-80060-000 |
— | ||
|
17
|
17
02112-06125-000
Screw 6x12
|
02112-06125-000 |
— | ||
| replacements | |||||
|
17
|
17
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
17
|
17
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
18
|
18
09250-14006-000 PLUG(OD:17)Cap, oil level gauge hole |
09250-14006-000 |
from US $1.92 |
||
|
19
|
19
82280-A0010-000
Verrou
|
82280-A0010-000 |
— | ||
|
20
|
20
77461-80000-000
Lock clip
|
77461-80000-000 |
— | ||
|
21
|
21
77810-60020-000
Gache serrure
|
77810-60020-000 |
— | ||
| replacement | |||||
|
21
|
21
77810-60021-000 STRIKER,RR GATE LATCH |
77810-60021-000 |
US $25.09 |
||
|
22
|
22
09126-A0800-500
Vis
|
09126-A0800-500 |
— | ||
|
23
|
23
09163-A0800-200
Rondelle grower
|
09163-A0800-200 |
— | ||
|
24
|
24
78251-68201-000 MALE,BACK DR ST0P |
78251-68201-000 |
US $11.04 |
||
|
25
|
25
77891-63100-000 SPACER |
77891-63100-000 |
US $4.48 |
||
|
26
|
26
78261-68201-000 MALE,BACK DR ST0P |
78261-68201-000 |
US $11.04 |
||
|
27
|
27
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
27
|
27
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
28
|
28
08321-A3106-800
Grower washer
|
08321-A3106-800 |
— | ||
|
29
|
29
84681-A8000-100
Tire scellante
|
84681-A8000-100 |
— | ||
|
30
|
30
77813-C8001-000
Anag. santana noir
|
77813-C8001-000 |
— | ||
|
30
|
30
77813-08001-000
Santana blan
|
77813-08001-000 |
— | ||
|
31
|
31
77813-A8001-000
Anagramme noir suzuki
|
77813-A8001-000 |
— | ||
|
32
|
32
50227-00000-000
Anagramme 5 vit u.k
|
50227-00000-000 |
— | ||
