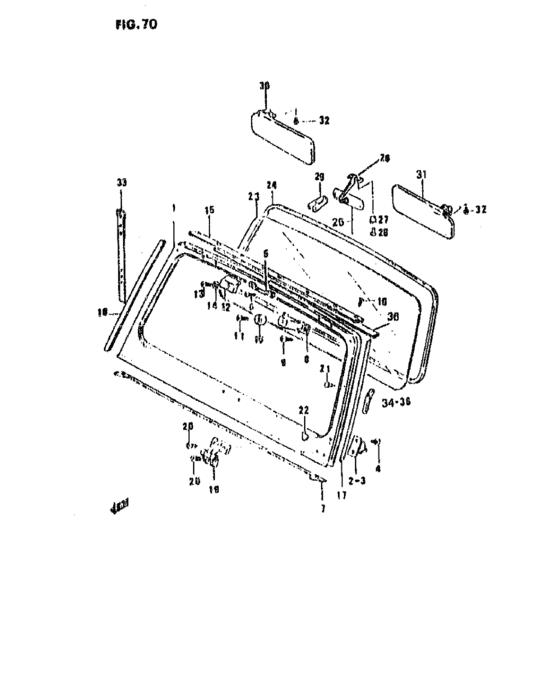

Pare-brise (PARE-BRISE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59101-A8002-300
Pare-brise mod-j
|
59101-A8002-300 |
— | ||
|
2
|
2
72411-80000-000 STAY,FRONT WINDOW LOCK,R |
72411-80000-000 |
US $2.72 |
||
|
3
|
3
72412-80000-000 STAY,FRONT WINDOW LOCK,L |
72412-80000-000 |
US $2.72 |
||
|
4
|
4
02142-06165-000
Screw
|
02142-06165-000 |
— | ||
| replacement | |||||
|
4
|
4
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
5
|
5
72415-80000-000 HOOK,FR WINDOW STOPPER |
72415-80000-000 |
US $2.83 |
||
|
6
|
6
02112-05103-000
Bolt
|
02112-05103-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
7
|
7
72413-80003-000
Etancheite int
|
72413-80003-000 |
— | ||
| replacement | |||||
|
7
|
7
72413-83000-000 WEATHERSTRIP,FR WDO UNDER |
72413-83000-000 |
US $77.60 |
||
|
8
|
8
72414-80000-000 BRACKET,FR WINDOW CUSHION |
72414-80000-000 |
US $2.72 |
||
|
9
|
9
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
9
|
9
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
10
|
10
09320-06006-000 CUSHION |
09320-06006-000 |
from US $1.04 |
||
|
11
|
11
03211-06163-000
Screw (6x16)
|
03211-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
03211-0616A-000 SCREW |
03211-0616A-000 |
US $0.80 |
||
|
12
|
12
78142-A8010-000
Caoutchouc mod v
|
78142-A8010-000 |
— | ||
|
13
|
13
02142-05168-000
Screw
|
02142-05168-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-05167-000 SCREWScrew, air intk guide no.2 |
02142-05167-000 |
from US $0.76 |
||
|
14
|
14
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
15
|
15
72418-80003-000 GARNISH,FR WINDOW,UPR |
72418-80003-000 |
US $26.60 |
||
|
16
|
16
03111-05203-000
New Genuine Part
|
03111-05203-000 |
— | ||
| replacement | |||||
|
16
|
16
03111-0520A-000 SCREW |
03111-0520A-000 |
US $0.80 |
||
|
17
|
17
84644-A8000-100
Seal, fr window side
|
84644-A8000-100 |
— | ||
|
18
|
18
84645-C8010-100
Trim, front window open.
|
84645-C8010-100 |
— | ||
|
19
|
19
72420-80010-000 HINGE,FR WINDOW |
72420-80010-000 |
US $31.20 |
||
|
20
|
20
09125-06022-000 SCREW(6X16)Screw (6x16) |
09125-06022-000 |
US $11.80 |
||
|
21
|
21
09250-02001-000
CAP(OD:6)
|
09250-02001-000 |
— | ||
| replacement | |||||
|
21
|
21
09250-02002-000 Cap(Od:6) |
09250-02002-000 |
US $1.92 |
||
|
22
|
22
09250-14003-000 CAP(OD:18) |
09250-14003-000 |
US $2.08 |
||
|
23
|
23
84511-80171-000
Glace partebrisse
|
84511-80171-000 |
— | ||
|
24
|
24
84611-A8010-000
Profil parebrisse
|
84611-A8010-000 |
— | ||
|
25
|
25
86103-A7302-000
Miroir retroviseur jour
|
86103-A7302-000 |
— | ||
|
26
|
26
86123-A6301-000
Bras retroviseur
|
86123-A6301-000 |
— | ||
|
27
|
27
86124-A6301-000
Mirror fix.bush
|
86124-A6301-000 |
— | ||
|
28
|
28
02132-05205-000
Screw
|
02132-05205-000 |
— | ||
| replacement | |||||
|
28
|
28
02122-0520A-000 SCREW |
02122-0520A-000 |
from US $0.80 |
||
|
29
|
29
86169-78400-000
SUPPORT,RR VIEW INSIDE MIRROR
|
86169-78400-000 |
— | ||
|
30
|
30
84801-A8001-100
Pare-soleil
|
84801-A8001-100 |
— | ||
|
30
|
30
84801-A8303-000
Pare soleil droit
|
84801-A8303-000 |
— | ||
|
31
|
31
84802-A8001-100
Pare soleil gauche
|
84802-A8001-100 |
— | ||
|
32
|
32
02132-05105-000
Screw
|
02132-05105-000 |
— | ||
| replacement | |||||
|
32
|
32
02122-0510A-000 SCREW |
02122-0510A-000 |
US $0.80 |
||
|
33
|
33
72450-A8000-000
Courroie fenetre
|
72450-A8000-000 |
— | ||
|
34
|
34
84648-80011-000 GARNISH,FR WINDOW SIDE,R |
84648-80011-000 |
US $2.24 |
||
|
35
|
35
84649-80011-000 GARNISH,FR WINDOW SIDE,L |
84649-80011-000 |
US $2.24 |
||
|
36
|
36
72419-83010-000 PAD,FR WINDOW GARNISH |
72419-83010-000 |
US $12.01 |
||
