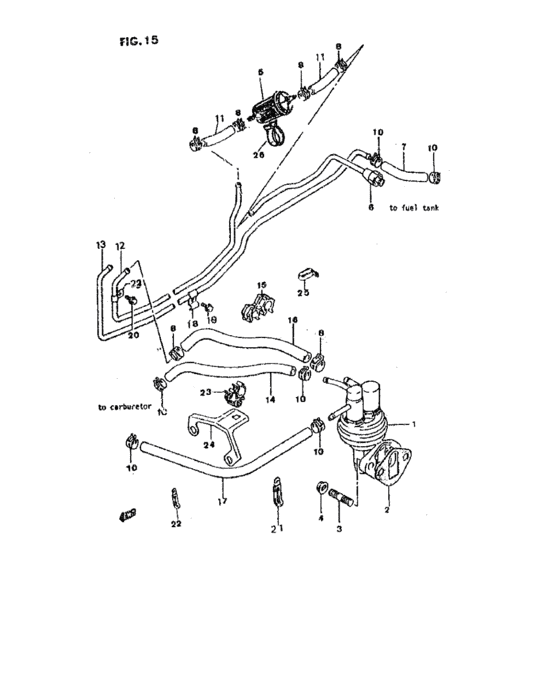

Pompe d'alimentation (POMPE D'ALIMENTATION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-D8000-000
Ens pompe
|
15100-D8000-000 |
— | ||
|
2
|
2
15319-73001-000
ガスケット,フューエルポンプ
|
15319-73001-000 |
— | ||
| replacement | |||||
|
2
|
2
15319-63B00-000 GASKET,FUEL PUMP |
15319-63B00-000 |
US $8.16 |
||
|
3
|
3
01107-08253-000 Bolt m8x1.25x25 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
3
|
3
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
4
|
4
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
5
|
5
15410-A6340-100
Filter, fuel
|
15410-A6340-100 |
— | ||
|
6
|
6
15810-A8001-000
Tube sortie reservoi
|
15810-A8001-000 |
— | ||
|
7
|
7
09343-A0403-600
Hose,l.125
|
09343-A0403-600 |
— | ||
|
8
|
8
00010-00000-000
Collier tuyau
|
00010-00000-000 |
— | ||
|
9
|
9
09401-B1140-200
Clamp
|
09401-B1140-200 |
— | ||
|
10
|
10
09401-C1140-200
Collier
|
09401-C1140-200 |
— | ||
|
11
|
11
09343-B0706-900
Tuyau
|
09343-B0706-900 |
— | ||
|
11
|
11
09343-D0710-800
Tuyau l.250
|
09343-D0710-800 |
— | ||
|
12
|
12
15821-A8301-000
Tube combut filtre
|
15821-A8301-000 |
— | ||
|
13
|
13
15861-83010-000
Tube retoir
|
15861-83010-000 |
— | ||
| replacement | |||||
|
13
|
13
15861-83022-000 PIPE,FUEL RTN |
15861-83022-000 |
US $47.10 |
||
|
14
|
14
09343-B0710-800
Tuyau
|
09343-B0710-800 |
— | ||
|
14
|
14
15840-A8300-200
Tuyau pompe filtre
|
15840-A8300-200 |
— | ||
|
15
|
15
09408-00083-000 CLAMP |
09408-00083-000 |
US $17.30 |
||
|
16
|
16
09343-B0404-700
Tuyau
|
09343-B0404-700 |
— | ||
|
17
|
17
09343-A0511-900
Tube l375
|
09343-A0511-900 |
— | ||
|
18
|
18
15819-78000-000
Clamp, fuel pipe
|
15819-78000-000 |
— | ||
| replacement | |||||
|
18
|
18
15819-78101-000
CLAMP
|
15819-78101-000 |
— | ||
|
19
|
19
09403-83010-000
Etrier
|
09403-83010-000 |
— | ||
|
20
|
20
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
21
|
21
09404-A0840-500
Collier
|
09404-A0840-500 |
— | ||
|
22
|
22
24759-A7813-000
Clamp, harness no. 1
|
24759-A7813-000 |
— | ||
|
23
|
23
09403-08309-000 CLAMP |
09403-08309-000 |
US $2.08 |
||
|
24
|
24
15881-A8300-200
Support
|
15881-A8300-200 |
— | ||
|
25
|
25
15891-73001-000
CLAMP,FUEL HOSE NO.1
|
15891-73001-000 |
— | ||
| replacement | |||||
|
25
|
25
09404-10418-000
CLAMP(L:137)
|
09404-10418-000 |
— | ||
|
26
|
26
09403-A4530-100
Clip fij. filtre
|
09403-A4530-100 |
— | ||
