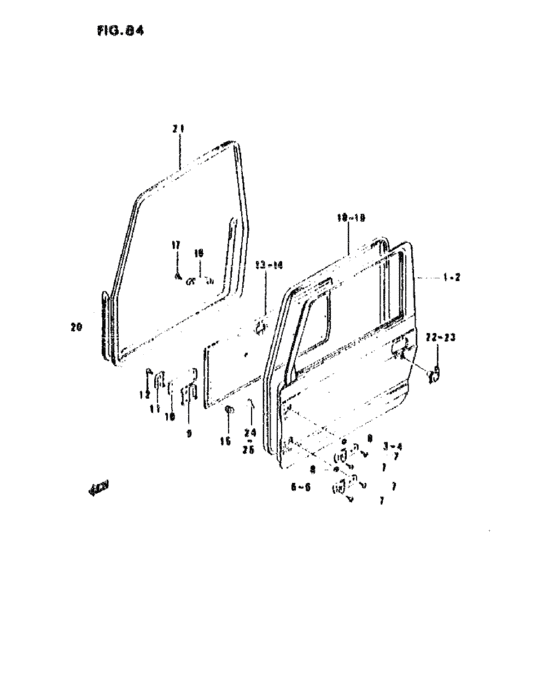

Porte avant (PORTE AVANT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-80123-000
パネルアッシ,ドア,ライト(ミラー:アリ)
|
68001-80123-000 |
— | ||
| replacements | |||||
|
1
|
1
68001-80C12-000 PANEL ASSY,FRONT DOOR,R |
68001-80C12-000 |
US $983.44 |
||
|
1
|
1
03111-0625A-000 SCREW |
03111-0625A-000 |
from US $0.80 |
||
|
1
|
1
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
1
|
1
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
1
|
1
82201-82C00-000 LATCH ASSY,FR DR,R |
82201-82C00-000 |
from US $103.41 |
||
|
1
|
1
82610-70D02-000 STRIKER,FR DOOR LATCH |
82610-70D02-000 |
US $20 |
||
|
1
|
1
03111-06253-000
Screw
|
03111-06253-000 |
— | ||
|
1
|
1
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
|
2
|
2
68002-80123-000
パネルアッシ,ドア,レフト(ミラー:アリ)
|
68002-80123-000 |
— | ||
| replacements | |||||
|
2
|
2
68002-80C12-000
PANEL ASSY,FRONT DOOR,L
|
68002-80C12-000 |
— | ||
|
2
|
2
03111-0625A-000 SCREW |
03111-0625A-000 |
from US $0.80 |
||
|
2
|
2
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
2
|
2
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
2
|
2
82202-82C00-000 LATCH ASSY,FR DR,L |
82202-82C00-000 |
US $104.14 |
||
|
2
|
2
82610-70D02-000 STRIKER,FR DOOR LATCH |
82610-70D02-000 |
US $20 |
||
|
2
|
2
03111-06253-000
Screw
|
03111-06253-000 |
— | ||
|
2
|
2
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
|
3
|
3
69310-80110-000 HINGE,FR DOOR UPPER RH |
69310-80110-000 |
US $61.60 |
||
|
4
|
4
69340-80110-000
ヒンジ,ドアアッパ,レフト
|
69340-80110-000 |
— | ||
| replacement | |||||
|
4
|
4
69310-80110-000 HINGE,FR DOOR UPPER RH |
69310-80110-000 |
US $61.60 |
||
|
5
|
5
69320-80110-000 HINGE,FR DOOR LOWER RH |
69320-80110-000 |
US $52 |
||
|
6
|
6
69350-80110-000
ヒンジ,ドアロア,レフト
|
69350-80110-000 |
— | ||
| replacement | |||||
|
6
|
6
69320-80110-000 HINGE,FR DOOR LOWER RH |
69320-80110-000 |
US $52 |
||
|
7
|
7
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
7
|
7
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
8
|
8
09160-08086-000 WASHER(8.5X18X0.5) |
09160-08086-000 |
US $12.50 |
||
|
9
|
9
76182-63101-000 PROTECTOR,OPENING TRIM |
76182-63101-000 |
US $13.60 |
||
|
10
|
10
81811-A8010-000
Courroie ret porte
|
81811-A8010-000 |
— | ||
|
11
|
11
76182-58002-000 GARNISH,DR OPEN STOPPER |
76182-58002-000 |
US $1.82 |
||
|
12
|
12
02132-05205-000
Screw
|
02132-05205-000 |
— | ||
| replacement | |||||
|
12
|
12
02122-0520A-000 SCREW |
02122-0520A-000 |
from US $0.80 |
||
|
13
|
13
83710-80111-000
Garniture porte d/st
|
83710-80111-000 |
— | ||
|
13
|
13
83710-A8010-100
Garniture porte lx
|
83710-A8010-100 |
— | ||
|
14
|
14
83720-80111-000
Garniture porte gauche st
|
83720-80111-000 |
— | ||
|
14
|
14
83720-A8010-100
Garniture porte lx
|
83720-A8010-100 |
— | ||
|
15
|
15
09409-08305-000
Clip
|
09409-08305-000 |
— | ||
| replacements | |||||
|
15
|
15
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
15
|
15
09409-08309-000
CLIP
|
09409-08309-000 |
— | ||
|
16
|
16
78271-58053-000
Poignee
|
78271-58053-000 |
— | ||
| replacement | |||||
|
16
|
16
78271-58054-5ES HANDLE,DOOR INSIDE PULL |
78271-58054-5ES |
US $16.80 |
||
|
17
|
17
09125-06041-000 SCREW(6X20) |
09125-06041-000 |
US $1.76 |
||
|
18
|
18
84641-80121-000
ウェザストリップ,ドアオープニング,ライト
|
84641-80121-000 |
— | ||
| replacement | |||||
|
18
|
18
84641-82CA0-000 WEATHERSTRIP,FR DR OPNG,R |
84641-82CA0-000 |
US $133.60 |
||
|
19
|
19
84641-80121-000
ウェザストリップ,ドアオープニング,ライト
|
84641-80121-000 |
— | ||
| replacement | |||||
|
19
|
19
84641-82CA0-000 WEATHERSTRIP,FR DR OPNG,R |
84641-82CA0-000 |
US $133.60 |
||
|
20
|
20
84630-80000-000 TRIM,DOOR OPENING |
84630-80000-000 |
US $50.40 |
||
|
21
|
21
84645-A8010-100
Tapissere mod - v
|
84645-A8010-100 |
— | ||
|
22
|
22
82270-A8010-000
Barrillet
|
82270-A8010-000 |
— | ||
|
23
|
23
82280-A8010-000
Barrillet
|
82280-A8010-000 |
— | ||
|
24
|
24
84642-80120-000 PAD,OPENING WEATHERSTRIP,R |
84642-80120-000 |
US $6.56 |
||
|
25
|
25
84652-80120-000 PAD,OPENING WEATHERSTRIP,L |
84652-80120-000 |
US $4.10 |
||
