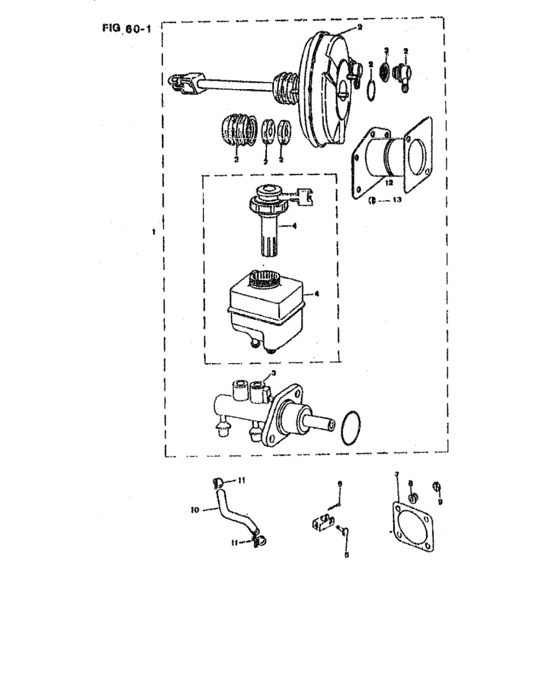

Servo-frein (SERVO-FREIN) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51000-B8317-000
Ensemble servo girling
|
51000-B8317-000 |
— | ||
|
2
|
2
00000-A0046-600
Jeu reparat servo
|
00000-A0046-600 |
— | ||
|
2
|
2
00000-A0047-800
Servo only,d-8
|
00000-A0047-800 |
— | ||
|
3
|
3
00000-A0047-900
Cylindre frein
|
00000-A0047-900 |
— | ||
|
4
|
4
00000-A0028-300
Plug
|
00000-A0028-300 |
— | ||
|
4
|
4
00000-A0046-700
Tank
|
00000-A0046-700 |
— | ||
|
5
|
5
09200-10010-000
ピン
|
09200-10010-000 |
— | ||
| replacement | |||||
|
5
|
5
09200-10021-000 PIN |
09200-10021-000 |
US $1.28 |
||
|
6
|
6
04111-25206-000
コッタピン
|
04111-25206-000 |
— | ||
| replacement | |||||
|
6
|
6
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
7
|
7
51132-A8000-200
Joint
|
51132-A8000-200 |
— | ||
|
8
|
8
08310-12086-000
ナット
|
08310-12086-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
8
|
8
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
9
|
9
08321-A3108-600
Grower washer
|
08321-A3108-600 |
— | ||
|
10
|
10
51010-A8301-000
Tuyau
|
51010-A8301-000 |
— | ||
|
11
|
11
00010-00000-000
Collier tuyau
|
00010-00000-000 |
— | ||
|
12
|
12
45005-00000-000
Servo bracket
|
45005-00000-000 |
— | ||
|
13
|
13
04004-00000-000
Nut
|
04004-00000-000 |
— | ||
