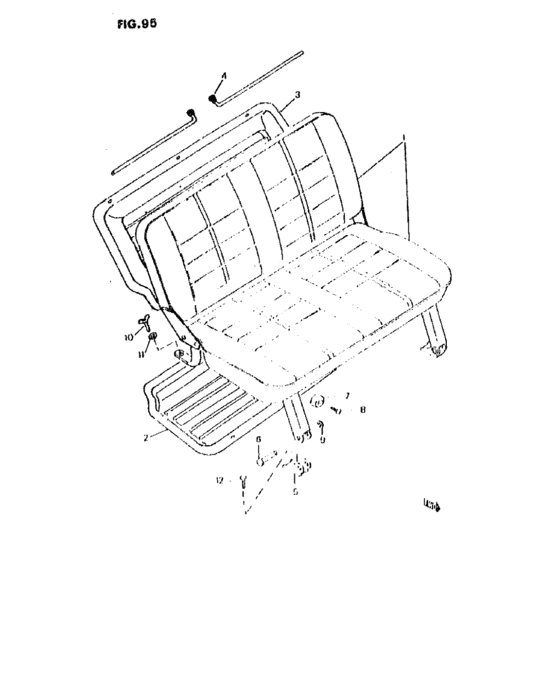

Siege arriere (SIEGE ARRIERE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87001-A8065-000
Ensemble siege arriere
|
87001-A8065-000 |
— | ||
|
1
|
1
50347-50355-000
Siege sant-red
|
50347-50355-000 |
— | ||
|
2
|
2
00000-A0025-800
Plaque plastique siege
|
00000-A0025-800 |
— | ||
|
3
|
3
00000-A0025-900
Plaque plastique dossier
|
00000-A0025-900 |
— | ||
|
4
|
4
87301-P8065-000
Poignee
|
87301-P8065-000 |
— | ||
|
5
|
5
87271-A8012-100
Charniere
|
87271-A8012-100 |
— | ||
|
6
|
6
09208-A0600-100
Goujon
|
09208-A0600-100 |
— | ||
|
7
|
7
09320-06014-000 CUSHION |
09320-06014-000 |
US $27.20 |
||
|
8
|
8
03141-05208-000
Screw
|
03141-05208-000 |
— | ||
| replacement | |||||
|
8
|
8
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
9
|
9
08332-A1105-800
Annrau
|
08332-A1105-800 |
— | ||
|
10
|
10
09119-A0600-700
Screw,butterfly
|
09119-A0600-700 |
— | ||
|
11
|
11
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
11
|
11
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
12
|
12
01514-08126-000
Screw
|
01514-08126-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
