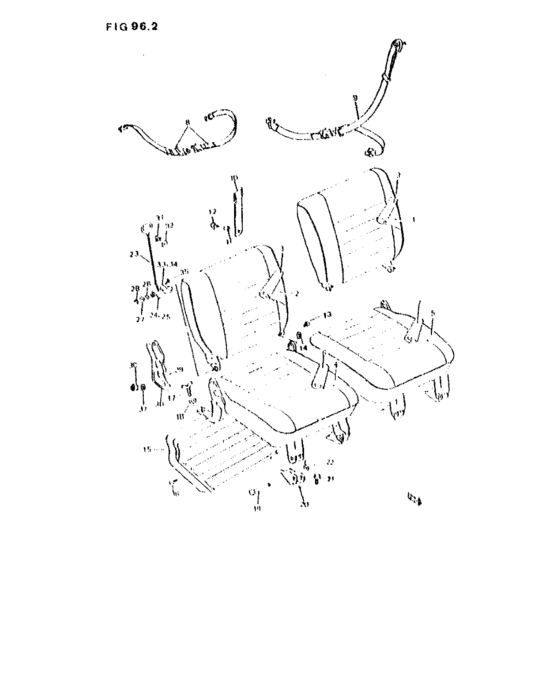

Siege arriere (SIEGE ARRIERE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51543-00000-000
Dossier gauche sand-red
|
51543-00000-000 |
— | ||
|
2
|
2
51536-00000-000
Dossier droit sand-red
|
51536-00000-000 |
— | ||
|
3
|
3
51544-00000-000
Tapisserie gauche sand-red
|
51544-00000-000 |
— | ||
|
4
|
4
51539-00000-000
Coussin droit sand-red
|
51539-00000-000 |
— | ||
|
5
|
5
51546-00000-000
Coussin gauche sand-red
|
51546-00000-000 |
— | ||
|
6
|
6
87180-A8334-000
Tapis coussin droit cheviot
|
87180-A8334-000 |
— | ||
|
6
|
6
51540-00000-000
Tapisserie droit sand-red
|
51540-00000-000 |
— | ||
|
7
|
7
87580-A8334-000
Tapisserie gauche cheviot
|
87580-A8334-000 |
— | ||
|
7
|
7
51547-00000-000
Tapisserie gauche sand-red
|
51547-00000-000 |
— | ||
|
8
|
8
84904-A8013-200
Ceinture arriere
|
84904-A8013-200 |
— | ||
|
9
|
9
50051-00000-000
Ceinture 3
|
50051-00000-000 |
— | ||
|
10
|
10
50686-00000-000
Courroie mod. v
|
50686-00000-000 |
— | ||
|
11
|
11
87001-F8330-000
Retendeur
|
87001-F8330-000 |
— | ||
|
12
|
12
03111-00000-000
Vis
|
03111-00000-000 |
— | ||
|
13
|
13
06003-00000-000
Rivet
|
06003-00000-000 |
— | ||
|
14
|
14
09160-06064-000
Rondellle
|
09160-06064-000 |
— | ||
|
15
|
15
87001-B8330-000
Garniture coussin droit
|
87001-B8330-000 |
— | ||
|
15
|
15
87002-B8330-000
Garniture coussin cg
|
87002-B8330-000 |
— | ||
|
17
|
17
09119-A0600-700
Screw,butterfly
|
09119-A0600-700 |
— | ||
|
18
|
18
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
19
|
19
09208-A0600-100
Goujon
|
09208-A0600-100 |
— | ||
|
20
|
20
87110-D8330-000
Female hinge
|
87110-D8330-000 |
— | ||
|
21
|
21
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
22
|
22
08332-A1105-800
Annrau
|
08332-A1105-800 |
— | ||
|
23
|
23
87214-83000-000
HANDLE
|
87214-83000-000 |
— | ||
|
24
|
24
83914-73061-000
Ressort droit
|
83914-73061-000 |
— | ||
|
25
|
25
83944-73062-000
SPRING,HINGE,L
|
83944-73062-000 |
— | ||
|
26
|
26
87325-83000-000
COLLAR,HINGE BOLT
|
87325-83000-000 |
— | ||
|
27
|
27
08322-21086-000
Washer 8mm
|
08322-21086-000 |
— | ||
| replacements | |||||
|
27
|
27
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
27
|
27
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
28
|
28
08310-22086-000
Nut
|
08310-22086-000 |
— | ||
| replacements | |||||
|
28
|
28
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
28
|
28
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
29
|
29
51085-00000-000
Couvercle droit
|
51085-00000-000 |
— | ||
|
30
|
30
50748-00000-000
Couvercle gauche
|
50748-00000-000 |
— | ||
|
31
|
31
09403-06403-000 CLAMP |
09403-06403-000 |
US $1.60 |
||
|
32
|
32
87328-83000-000 WASHER,HINGE LOCK HANDLE CLAMP |
87328-83000-000 |
US $1.60 |
||
|
33
|
33
87212-80200-000
LEVER
|
87212-80200-000 |
— | ||
|
34
|
34
87612-80200-000 LEVER |
87612-80200-000 |
US $3.35 |
||
|
35
|
35
51086-00000-000
Rwet
|
51086-00000-000 |
— | ||
|
36
|
36
08313-B1106-300
Nut
|
08313-B1106-300 |
— | ||
|
37
|
37
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
37
|
37
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
