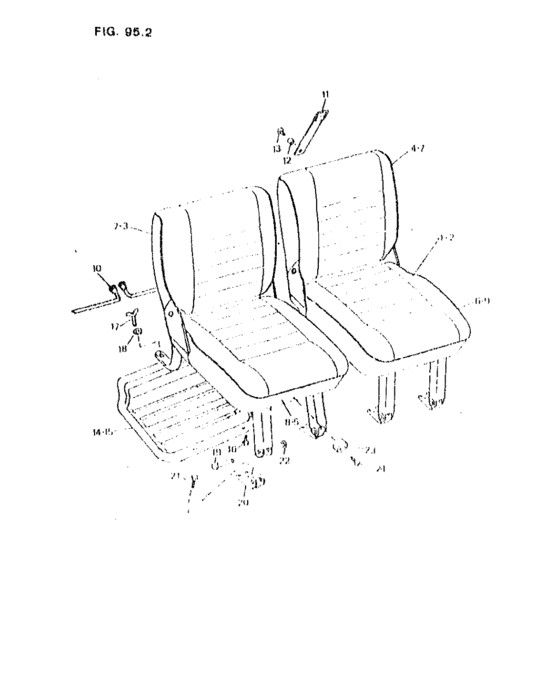

Siege arriere u.k. (SIEGE ARRIERE U.K.) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50284-00000-000
Seat assy,rh,mater.
|
50284-00000-000 |
— | ||
|
2
|
2
50291-00000-000
Seat assy,lh,mater.
|
50291-00000-000 |
— | ||
|
3
|
3
50285-00000-000
Back assy,rh,mater.
|
50285-00000-000 |
— | ||
|
4
|
4
50292-00000-000
Back assy,lh,mater.
|
50292-00000-000 |
— | ||
|
5
|
5
50288-00000-000
Cush.assy,rh,mater.
|
50288-00000-000 |
— | ||
|
6
|
6
50293-00000-000
Cush.assy,lh,mater.
|
50293-00000-000 |
— | ||
|
7
|
7
50286-00000-000
Back trim,rh,mater.
|
50286-00000-000 |
— | ||
|
8
|
8
50289-00000-000
Cush.trim,rh,mater.
|
50289-00000-000 |
— | ||
|
9
|
9
50294-00000-000
Tapisserie coussin gauche life
|
50294-00000-000 |
— | ||
|
10
|
10
87301-P8065-000
Poignee
|
87301-P8065-000 |
— | ||
|
11
|
11
50216-00000-000
Siege courroie mod-v
|
50216-00000-000 |
— | ||
|
12
|
12
87001-F8330-000
Retendeur
|
87001-F8330-000 |
— | ||
|
13
|
13
00008-00000-000
Vis
|
00008-00000-000 |
— | ||
|
14
|
14
87001-B8330-000
Garniture coussin droit
|
87001-B8330-000 |
— | ||
|
15
|
15
87002-B8330-000
Garniture coussin cg
|
87002-B8330-000 |
— | ||
|
17
|
17
09119-A0600-700
Screw,butterfly
|
09119-A0600-700 |
— | ||
|
18
|
18
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
19
|
19
09208-A0600-100
Goujon
|
09208-A0600-100 |
— | ||
|
20
|
20
87271-A8012-100
Charniere
|
87271-A8012-100 |
— | ||
|
21
|
21
01514-08166-000
New Genuine Part
|
01514-08166-000 |
— | ||
|
22
|
22
08332-A1105-800
Annrau
|
08332-A1105-800 |
— | ||
|
23
|
23
09320-06011-000 CUSHION |
09320-06011-000 |
from US $2.57 |
||
|
24
|
24
09141-05208-000
Vis
|
09141-05208-000 |
— | ||
