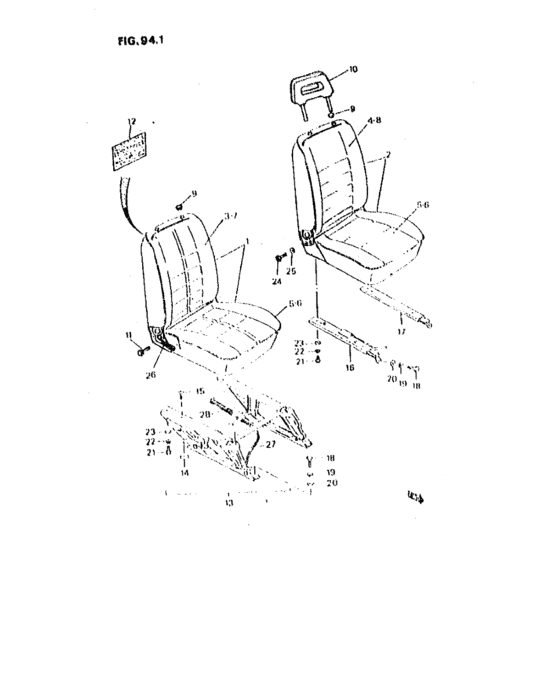

Siege avant (SIEGE AVANT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50273-00000-000
Siege av droit life
|
50273-00000-000 |
— | ||
|
2
|
2
50280-00000-000
Siege av gauche life
|
50280-00000-000 |
— | ||
|
3
|
3
50274-00000-000
Dossier siege droit life
|
50274-00000-000 |
— | ||
|
4
|
4
50281-00000-000
Dossier siege gauche life
|
50281-00000-000 |
— | ||
|
5
|
5
50277-00000-000
Coussin avant life
|
50277-00000-000 |
— | ||
|
6
|
6
50278-00000-000
Tapiss coussin life
|
50278-00000-000 |
— | ||
|
7
|
7
50275-00000-000
Dossier tapisserie droit
|
50275-00000-000 |
— | ||
|
8
|
8
50282-00000-000
Dossier tapisserie gauche
|
50282-00000-000 |
— | ||
|
9
|
9
85302-C8311-000
Bague
|
85302-C8311-000 |
— | ||
|
10
|
10
50163-00000-000
Appuie-tete
|
50163-00000-000 |
— | ||
|
11
|
11
00000-A0037-100
Jeu vis siege
|
00000-A0037-100 |
— | ||
|
12
|
12
85887-80030-000
Plaque
|
85887-80030-000 |
— | ||
|
13
|
13
86701-A8300-100
Support
|
86701-A8300-100 |
— | ||
|
14
|
14
86728-A8010-000
Choc
|
86728-A8010-000 |
— | ||
|
15
|
15
03211-A0508-800
Vis
|
03211-A0508-800 |
— | ||
|
16
|
16
86601-B8013-200
Glisseur droit
|
86601-B8013-200 |
— | ||
|
17
|
17
86602-B8013-200
Glisseur gauche
|
86602-B8013-200 |
— | ||
|
18
|
18
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
19
|
19
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
20
|
20
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
21
|
21
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
21
|
21
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
21
|
21
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
22
|
22
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
23
|
23
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
23
|
23
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
23
|
23
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
24
|
24
00007-00000-000
Vis
|
00007-00000-000 |
— | ||
|
24
|
24
02112-A1015-600
Vis
|
02112-A1015-600 |
— | ||
|
25
|
25
08321-A3110-600
Spring washer
|
08321-A3110-600 |
— | ||
|
26
|
26
85302-18311-000
Poignee levier
|
85302-18311-000 |
— | ||
|
27
|
27
00000-A0042-200
Cable siege
|
00000-A0042-200 |
— | ||
|
28
|
28
00000-A0043-900
Ressort siege
|
00000-A0043-900 |
— | ||
|
32
|
32
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
32
|
32
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
33
|
33
01104-08166-000
Screw
|
01104-08166-000 |
— | ||
| replacement | |||||
|
33
|
33
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
34
|
34
08321-A3108-600
Grower washer
|
08321-A3108-600 |
— | ||
|
35
|
35
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
35
|
35
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
35
|
35
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
36
|
36
84901-A8301-000
Ceinturon siege
|
84901-A8301-000 |
— | ||
|
37
|
37
84924-80130-000 COVER,FR SEAT BELT |
84924-80130-000 |
US $11.20 |
||
|
38
|
38
84901-E8013-300
Tougue stoper, front seat belt
|
84901-E8013-300 |
— | ||
|
39
|
39
84901-B8013-300
Elr as. cover
|
84901-B8013-300 |
— | ||
|
40
|
40
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
40
|
40
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
40
|
40
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
