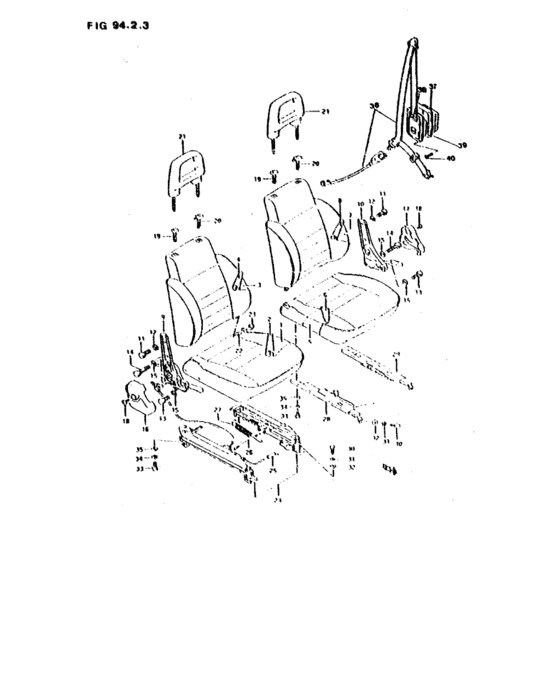

Sieges (SIEGES) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51471-00000-000
Coussin droit vert
|
51471-00000-000 |
— | ||
|
2
|
2
51472-00000-000
Tapisserie droit vert
|
51472-00000-000 |
— | ||
|
3
|
3
51475-00000-000
Dossier droit vert
|
51475-00000-000 |
— | ||
|
4
|
4
51476-00000-000
Tapisserie droit vert
|
51476-00000-000 |
— | ||
|
5
|
5
51480-00000-000
Coussin gauche vert
|
51480-00000-000 |
— | ||
|
6
|
6
51481-00000-000
Tapisserie gauche vert
|
51481-00000-000 |
— | ||
|
7
|
7
51482-00000-000
Dossier gauche vert
|
51482-00000-000 |
— | ||
|
8
|
8
51483-00000-000
Tapisserie gauche vert
|
51483-00000-000 |
— | ||
|
9
|
9
85210-83001-000
Reclinateur cd
|
85210-83001-000 |
— | ||
| replacement | |||||
|
9
|
9
85210-83001-5PK
Reclining assy,fr seat,r
|
85210-83001-5PK |
— | ||
|
10
|
10
85710-83001-000
Reclining assy, lh
|
85710-83001-000 |
— | ||
| replacement | |||||
|
10
|
10
85710-83001-5PK
RECLINING,FR SEAT,L
|
85710-83001-5PK |
— | ||
|
11
|
11
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
12
|
12
08321-A3108-600
Grower washer
|
08321-A3108-600 |
— | ||
|
13
|
13
01107-10166-000
New Genuine Part
|
01107-10166-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-1016B-000 BoltPlug, oil drain |
01500-1016B-000 |
US $17.30 |
||
|
14
|
14
01107-10406-000
Bolt
|
01107-10406-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-1040A-000 Bolt |
01500-1040A-000 |
from US $2.40 |
||
|
15
|
15
08321-A3110-600
Spring washer
|
08321-A3110-600 |
— | ||
|
16
|
16
85221-82001-000
Couvercle droit
|
85221-82001-000 |
— | ||
|
17
|
17
85721-82001-000
Couvercle gauche
|
85721-82001-000 |
— | ||
|
18
|
18
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
19
|
19
85391-80290-000 GUIDE,HEADRESTRAINT,R |
85391-80290-000 |
US $12.32 |
||
|
20
|
20
85890-83000-000 GUIDE,HEADRESTRAINT,L |
85890-83000-000 |
US $15.36 |
||
|
21
|
21
86401-83000-000
Appui tete
|
86401-83000-000 |
— | ||
|
22
|
22
85291-80290-000 BUSH,SEAT BACK FIXING |
85291-80290-000 |
US $2.56 |
||
|
23
|
23
08313-A1108-500
Nut
|
08313-A1108-500 |
— | ||
|
24
|
24
86901-83030-000
Wak in assy, lh
|
86901-83030-000 |
— | ||
| replacement | |||||
|
24
|
24
86901-83031-000
WALKIN ASSY,FR SEAT,L
|
86901-83031-000 |
— | ||
|
25
|
25
86736-83000-000 KNOB,LOCK HANDLE |
86736-83000-000 |
US $1.60 |
||
|
26
|
26
86731-83000-000 ROD,WALKIN TENSION |
86731-83000-000 |
US $8.64 |
||
|
27
|
27
86732-83030-000
SPRING,WALKIN TENSION
|
86732-83030-000 |
— | ||
|
28
|
28
86601-B9013-200
Glisseur droit
|
86601-B9013-200 |
— | ||
|
29
|
29
86602-B0013-200
Glisseur gauche
|
86602-B0013-200 |
— | ||
|
30
|
30
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
30
|
30
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
31
|
31
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
32
|
32
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
32
|
32
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
33
|
33
01104-08166-000
Screw
|
01104-08166-000 |
— | ||
| replacement | |||||
|
33
|
33
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
34
|
34
08321-A3108-600
Grower washer
|
08321-A3108-600 |
— | ||
|
35
|
35
08322-11006-000
Rondelle
|
08322-11006-000 |
— | ||
|
36
|
36
84901-A8301-000
Ceinturon siege
|
84901-A8301-000 |
— | ||
|
37
|
37
84924-80130-000 COVER,FR SEAT BELT |
84924-80130-000 |
US $11.20 |
||
|
38
|
38
84901-E8013-300
Tougue stoper, front seat belt
|
84901-E8013-300 |
— | ||
|
39
|
39
84901-B8013-300
Elr as. cover
|
84901-B8013-300 |
— | ||
|
40
|
40
02142-05125-000
Screw
|
02142-05125-000 |
— | ||
| replacement | |||||
|
40
|
40
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
