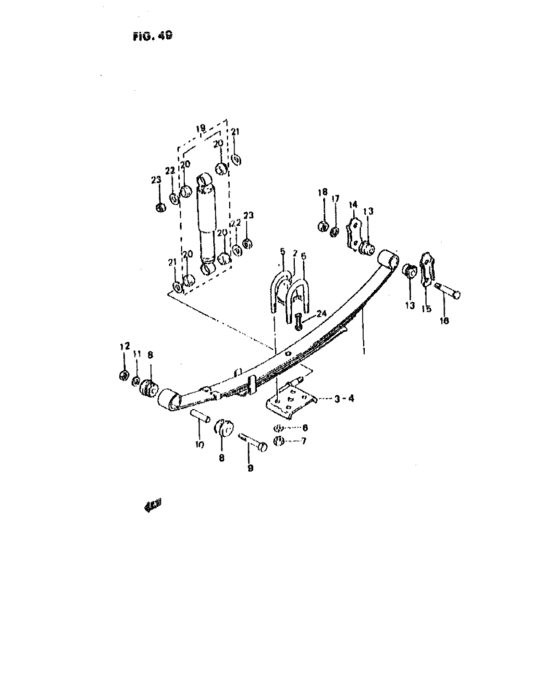

Suspension arriere (SUSPENSION ARRIERE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41310-80110-000
SPRING ASSY,REAR
H 11872 |
41310-80110-000 |
— | ||
|
2
|
2
42150-61020-000 BUMPER,RR SPRING |
42150-61020-000 |
US $20.80 |
||
|
3
|
3
41430-A8000-000
Bride ressort droit
|
41430-A8000-000 |
— | ||
|
4
|
4
41440-A8000-000
Plaque ressort gauche
|
41440-A8000-000 |
— | ||
|
5
|
5
41411-80201-000 U-BOLT,RR SPRING |
41411-80201-000 |
US $6.72 |
||
|
6
|
6
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
7
|
7
09140-10034-000 NUT |
09140-10034-000 |
US $1.12 |
||
|
8
|
8
41331-62020-000 BUSH |
41331-62020-000 |
from US $16.38 |
||
|
9
|
9
09100-12025-000
ボルト,12X92
|
09100-12025-000 |
— | ||
| replacements | |||||
|
9
|
9
09103-12044-000 BOLT(12X87) |
09103-12044-000 |
from US $2.48 |
||
|
9
|
9
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
US $8.48 |
||
|
10
|
10
09180-12035-000 SPACER(12X16X64.5) |
09180-12035-000 |
US $2.24 |
||
|
11
|
11
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
12
|
12
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
13
|
13
09305-13006-000
Bague lame - ressort
|
09305-13006-000 |
— | ||
| replacement | |||||
|
13
|
13
09305-13002-000 BUSH |
09305-13002-000 |
from US $1.58 |
||
|
14
|
14
41461-83300-000 PLATE,SPRING SHACKLE INNER |
41461-83300-000 |
US $19.20 |
||
|
15
|
15
41462-79000-000
Plate, spring shackle outer
|
41462-79000-000 |
— | ||
| replacement | |||||
|
15
|
15
41462-77300-000 PLATE,OUTER |
41462-77300-000 |
US $12.80 |
||
|
16
|
16
41463-82000-000 PIN,SHACKLE |
41463-82000-000 |
US $6.72 |
||
|
17
|
17
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
18
|
18
08310-11103-000
Rondelle
|
08310-11103-000 |
— | ||
| replacement | |||||
|
18
|
18
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
19
|
19
41700-A8000-000
Amortisseur arricre
H 11872 |
41700-A8000-000 |
— | ||
|
20
|
20
41781-A8000-000
Bush
|
41781-A8000-000 |
— | ||
|
21
|
21
08322-21163-000
New Genuine Part
|
08322-21163-000 |
— | ||
| replacement | |||||
|
21
|
21
08322-0116A-000 WASHER |
08322-0116A-000 |
from US $0.80 |
||
|
22
|
22
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) |
09160-12073-000 |
from US $0.96 |
||
|
23
|
23
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
23
|
23
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
24
|
24
00000-A0035-800
Vis et ecrou ressort
|
00000-A0035-800 |
— | ||
