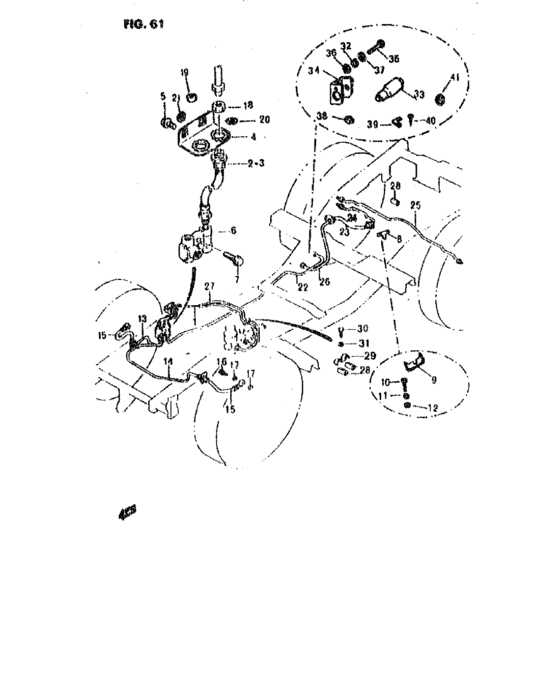

Tuyauterie de freins (TUYAUTERIE DE FREINS) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-A8012-000
Tuyau de frein
|
51410-A8012-000 |
— | ||
|
1
|
1
51410-B8310-000
Tuyau servo girling
|
51410-B8310-000 |
— | ||
|
2
|
2
51570-B8303-000
Flexible cylindre av
|
51570-B8303-000 |
— | ||
|
3
|
3
51570-C8303-000
Flexible cylindre ar
|
51570-C8303-000 |
— | ||
|
4
|
4
51712-B8300-000
Support flexible
|
51712-B8300-000 |
— | ||
|
5
|
5
01517-06166-000
Bolt
|
01517-06166-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
6
|
6
51640-A8000-000
Croix 5 v.
|
51640-A8000-000 |
— | ||
|
7
|
7
01517-06356-000
Bolt, lever
|
01517-06356-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
7
|
7
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
8
|
8
51640-B8000-000
Croix frein 3 t
|
51640-B8000-000 |
— | ||
|
9
|
9
46521-T8010-000
Plaque
|
46521-T8010-000 |
— | ||
|
10
|
10
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
11
|
11
08310-22066-000
Nut 6mm
|
08310-22066-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
12
|
12
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
13
|
13
51420-A8002-000
Tuyau frein roue droit
|
51420-A8002-000 |
— | ||
|
14
|
14
51430-A8002-000
Tuyau frein roue gauche
|
51430-A8002-000 |
— | ||
|
15
|
15
51540-C8015-000
Flexible avant
|
51540-C8015-000 |
— | ||
|
16
|
16
09360-10026-000 Union bolt |
09360-10026-000 |
from US $1.85 |
||
|
17
|
17
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
18
|
18
08310-T2410-600
Ecrou m - 10
|
08310-T2410-600 |
— | ||
|
19
|
19
08310-T2412-600
Ecrou m - 12
|
08310-T2412-600 |
— | ||
|
20
|
20
09163-T1000-100
Rondelle 10 2
|
09163-T1000-100 |
— | ||
|
21
|
21
09163-T1200-100
Rondelle 12 3
|
09163-T1200-100 |
— | ||
|
22
|
22
51460-A8042-000
Tuyau frein 5 t
|
51460-A8042-000 |
— | ||
|
23
|
23
51580-B8013-000
Flexible arriere
|
51580-B8013-000 |
— | ||
|
24
|
24
51470-A8002-000
Tuyau
|
51470-A8002-000 |
— | ||
|
25
|
25
51480-A8001-000
Tuyau
|
51480-A8001-000 |
— | ||
|
26
|
26
51500-A8032-000
Tuyau val flex av
|
51500-A8032-000 |
— | ||
|
27
|
27
51520-A8012-000
Tuyau frein ar.
|
51520-A8012-000 |
— | ||
|
27
|
27
51520-B8310-000
Tuyau servo girling
|
51520-B8310-000 |
— | ||
|
27
|
27
51520-C8310-000
Rear brake hose
|
51520-C8310-000 |
— | ||
|
28
|
28
51755-67000-000
New Genuine Part
|
51755-67000-000 |
— | ||
| replacement | |||||
|
28
|
28
51755-77200-000 PROTECTOR,BRAKE PIPE |
51755-77200-000 |
US $4.56 |
||
|
29
|
29
09403-07312-000 CLAMP |
09403-07312-000 |
from US $0.92 |
||
|
30
|
30
01104-06126-000
Bolt
|
01104-06126-000 |
— | ||
| replacement | |||||
|
30
|
30
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
31
|
31
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
32
|
32
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
33
|
33
51950-A8312-000
Ens valve
|
51950-A8312-000 |
— | ||
|
34
|
34
51951-A8340-000
Support soupape
|
51951-A8340-000 |
— | ||
|
35
|
35
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
35
|
35
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
36
|
36
08310-22066-000
Nut 6mm
|
08310-22066-000 |
— | ||
| replacement | |||||
|
36
|
36
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
37
|
37
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
37
|
37
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
38
|
38
08332-T1115-600
Spring, ring
|
08332-T1115-600 |
— | ||
|
39
|
39
51951-B8340-000
Strap
|
51951-B8340-000 |
— | ||
|
40
|
40
09124-A3500-100
Nut
|
09124-A3500-100 |
— | ||
|
41
|
41
09148-A3500-100
Ecrou
|
09148-A3500-100 |
— | ||
