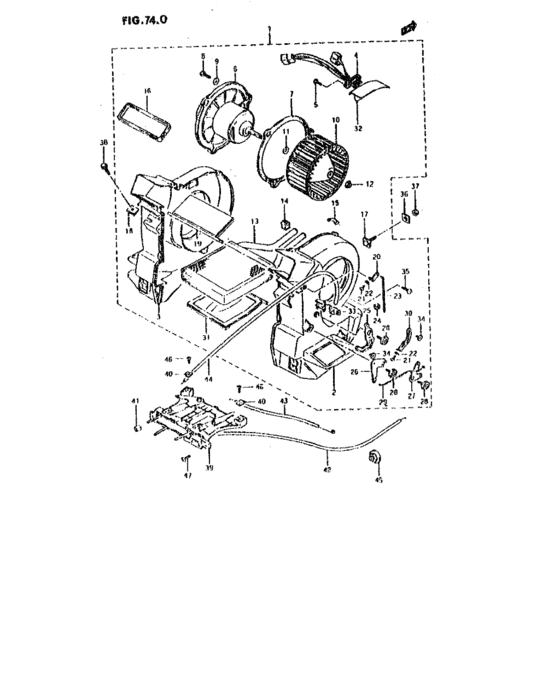

Ventilation (VENTILATION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-A8302-100
Systeme chauffage complet
|
74100-A8302-100 |
— | ||
|
2
|
2
74111-A8302-100
Carter chauffage droit
|
74111-A8302-100 |
— | ||
|
3
|
3
74112-A8302-100
Carter chauffage gauche
|
74112-A8302-100 |
— | ||
|
4
|
4
00000-A0038-200
Carb.resistance
|
00000-A0038-200 |
— | ||
|
5
|
5
00000-A0038-300
Ens moteur
|
00000-A0038-300 |
— | ||
|
6
|
6
00000-A0038-400
Radiator
|
00000-A0038-400 |
— | ||
|
7
|
7
74172-80000-000
パッド
|
74172-80000-000 |
— | ||
| replacement | |||||
|
7
|
7
61544-94500-000 PAD |
61544-94500-000 |
from US $0.99 |
||
|
8
|
8
08316-A1606-800
Ecrou
|
08316-A1606-800 |
— | ||
|
9
|
9
01514-06166-000
Boulon
|
01514-06166-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
10
|
10
74400-A8300-000
Levier
|
74400-A8300-000 |
— | ||
|
11
|
11
00000-A0038-600
Lever knob
|
00000-A0038-600 |
— | ||
|
12
|
12
00000-A0038-700
Clamp, wire water
|
00000-A0038-700 |
— | ||
|
13
|
13
74512-83020-000
WIRE,WATER VALVE CONTROL
|
74512-83020-000 |
— | ||
|
14
|
14
74513-83020-000
WIRE,CIRC&FRESH CONTROL
|
74513-83020-000 |
— | ||
|
15
|
15
74514-A8300-800
Cable controle
|
74514-A8300-800 |
— | ||
|
16
|
16
82191-A8000-200
Passacable
|
82191-A8000-200 |
— | ||
|
17
|
17
00000-A0038-800
Screw
|
00000-A0038-800 |
— | ||
|
18
|
18
03541-04126-000
Screw
|
03541-04126-000 |
— | ||
| replacements | |||||
|
18
|
18
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
18
|
18
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.80 |
||
|
19
|
19
00000-A0039-800
Clapet droit
|
00000-A0039-800 |
— | ||
|
20
|
20
00000-A0039-900
Clapet gauche
|
00000-A0039-900 |
— | ||
|
21
|
21
00000-A0046-100
Clip
|
00000-A0046-100 |
— | ||
|
22
|
22
00000-A0051-500
Levier
|
00000-A0051-500 |
— | ||
