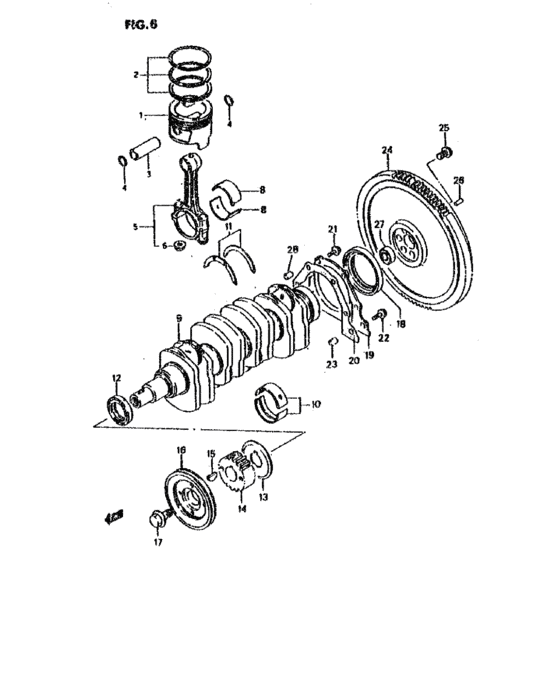

Villebrequin (VILLEBREQUIN) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12111-A7510-700
Piston cote nominale
|
12111-A7510-700 |
— | ||
|
2
|
2
12140-75111-050
Jeu segments 0.50
|
12140-75111-050 |
— | ||
| replacement | |||||
|
2
|
2
12140-75112-050
RING SET,PISTON OS:0.50
|
12140-75112-050 |
— | ||
|
3
|
3
12151-29001-000 PIN,PISTONPin, piston |
12151-29001-000 |
from US $6.66 |
||
|
4
|
4
09381-A1600-100
Circlips axe
|
09381-A1600-100 |
— | ||
|
5
|
5
12160-73001-000
ロッドアッシ,コネクチング
|
12160-73001-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-73020-000 CONNROD ASSY |
12160-73020-000 |
US $104.80 |
||
|
6
|
6
09159-08033-000 NUT |
09159-08033-000 |
from US $1.34 |
||
|
8
|
8
12181-81051-0A0 BEARING,CONNROD STD |
12181-81051-0A0 |
US $12.46 |
||
|
9
|
9
12221-80000-000
Vilebrequin
|
12221-80000-000 |
— | ||
|
10
|
10
12300-73811-0A0
Jeu coussinets
|
12300-73811-0A0 |
— | ||
| replacement | |||||
|
10
|
10
12300-73812-0A0 BEARING SET,CRANKSHAFT |
12300-73812-0A0 |
US $113.71 |
||
|
11
|
11
12300-73830-025 BEARING SET,CRANK THRUST |
12300-73830-025 |
US $13.73 |
||
|
12
|
12
09283-32025-000
Oil seal, crank front
|
09283-32025-000 |
— | ||
| replacement | |||||
|
12
|
12
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.03 |
||
|
13
|
13
12635-78400-000
Rondelle guide cour
|
12635-78400-000 |
— | ||
| replacement | |||||
|
13
|
13
12635-78401-000 GUIDE,TIMING BELT |
12635-78401-000 |
from US $3.65 |
||
|
14
|
14
12631-78400-000
Pignon vilebrequin
|
12631-78400-000 |
— | ||
| replacement | |||||
|
14
|
14
12631-78401-000
PULLEY,CRANK TIMING BELT
|
12631-78401-000 |
— | ||
|
15
|
15
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.49 |
||
|
16
|
16
12611-80500-000
Poulie vilebrequin
|
12611-80500-000 |
— | ||
| replacement | |||||
|
16
|
16
12611-80501-000
PULLEY,CRANKSHAFT
|
12611-80501-000 |
— | ||
|
17
|
17
09103-12002-000
ボルト,12X20
|
09103-12002-000 |
— | ||
| replacement | |||||
|
17
|
17
09103-12002-XC0 BOLT(12X20) |
09103-12002-XC0 |
US $2.43 |
||
|
18
|
18
09283-60005-000
OIL SEAL
|
09283-60005-000 |
— | ||
| replacement | |||||
|
18
|
18
09283-60009-000 SEAL,OIL(60X80X8) |
09283-60009-000 |
from US $17.91 |
||
|
19
|
19
11341-A7300-000
Carter joint huile
|
11341-A7300-000 |
— | ||
|
20
|
20
11349-73002-000
ガスケット,オイルシールハウジング
|
11349-73002-000 |
— | ||
| replacement | |||||
|
20
|
20
11349-73010-000 GASKET,OIL SEAL HSG |
11349-73010-000 |
US $5.76 |
||
|
21
|
21
01514-06203-000
Boulon
|
01514-06203-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
21
|
21
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
22
|
22
01514-06253-000
Vis fixation carter
|
01514-06253-000 |
— | ||
|
23
|
23
04211-A0910-900
Coupille centrage
|
04211-A0910-900 |
— | ||
|
24
|
24
12620-A7300-100
Volant moteur
|
12620-A7300-100 |
— | ||
|
25
|
25
09103-10097-000 BOLT(10X17) |
09103-10097-000 |
US $1.12 |
||
|
26
|
26
04221-06129-000 PIN |
04221-06129-000 |
from US $0.96 |
||
|
27
|
27
08133-60007-000
ベアリング
|
08133-60007-000 |
— | ||
| replacement | |||||
|
27
|
27
12623-70B00-000 BEARING,INPUT SHAFT |
12623-70B00-000 |
US $15.96 |
||
|
28
|
28
09202-A0600-400
Rond
|
09202-A0600-400 |
— | ||
