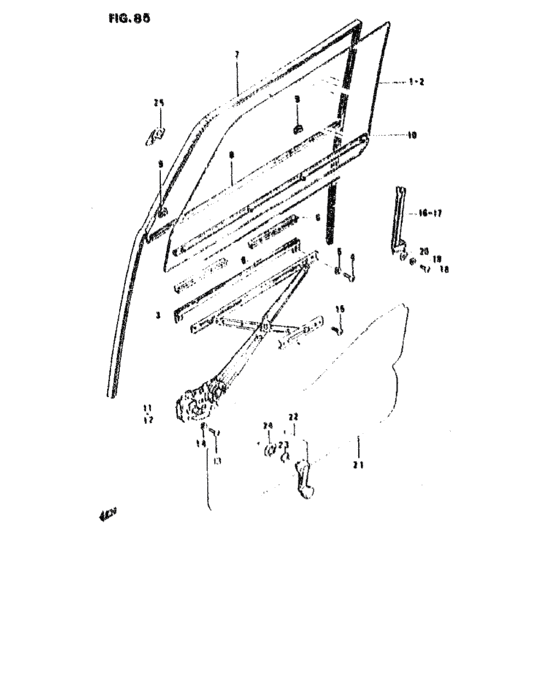

Vitre porte (VITRE PORTE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-80131-000
Glace porte cd
|
84531-80131-000 |
— | ||
|
2
|
2
84536-80131-000
Glace porte cg
|
84536-80131-000 |
— | ||
|
3
|
3
78710-78000-000 CHANNEL,DR GLASS BOTTOM |
78710-78000-000 |
US $15.12 |
||
|
4
|
4
02112-06086-000
New Genuine Part
|
02112-06086-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0608A-000 SCREW |
02112-0608A-000 |
from US $0.76 |
||
|
5
|
5
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
6
|
6
78811-A7840-000
Profile caoutchouc
|
78811-A7840-000 |
— | ||
|
7
|
7
83661-A8010-100
Guide glace
|
83661-A8010-100 |
— | ||
|
8
|
8
83811-80100-000
ウェザストリップ,フロントドア,アウタ
|
83811-80100-000 |
— | ||
| replacement | |||||
|
8
|
8
83810-82CA0-000 WEATHERSTRIP,FR DR OUT |
83810-82CA0-000 |
US $43.32 |
||
|
9
|
9
78991-78000-000
クリップ,スカルプ
|
78991-78000-000 |
— | ||
| replacement | |||||
|
9
|
9
78991-78001-000 CLIP,DR OUT WEATHERSTRIP |
78991-78001-000 |
from US $1.52 |
||
|
10
|
10
83850-80100-000 WEATHERSTRIP,FR DR INR |
83850-80100-000 |
US $28.12 |
||
|
11
|
11
83440-A8010-000
Mecaniske gauche
|
83440-A8010-000 |
— | ||
|
12
|
12
83410-A8010-000
Mecanisme droite
|
83410-A8010-000 |
— | ||
|
13
|
13
02112-06086-000
New Genuine Part
|
02112-06086-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-0608A-000 SCREW |
02112-0608A-000 |
from US $0.76 |
||
|
14
|
14
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
15
|
15
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
16
|
16
81730-80101-000
サッシュ,フロントドアリヤ,ライト
|
81730-80101-000 |
— | ||
| replacements | |||||
|
16
|
16
81730-80102-000 SASH,FR DOOR REAR,R |
81730-80102-000 |
US $30.40 |
||
|
16
|
16
83661-82CA0-000 RUN,FR DOOR GLASS |
83661-82CA0-000 |
US $64 |
||
|
17
|
17
81740-80101-000
サッシュ,フロントドアリヤ,レフト
|
81740-80101-000 |
— | ||
| replacements | |||||
|
17
|
17
81740-80102-000 SASH,FR DOOR REAR,L |
81740-80102-000 |
US $30.40 |
||
|
17
|
17
83661-82CA0-000 RUN,FR DOOR GLASS |
83661-82CA0-000 |
US $64 |
||
|
18
|
18
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
19
|
19
08321-A3106-800
Grower washer
|
08321-A3106-800 |
— | ||
|
20
|
20
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
20
|
20
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
21
|
21
83911-80100-000
Couvercle porte av
|
83911-80100-000 |
— | ||
| replacement | |||||
|
21
|
21
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
22
|
22
82960-82100-000
Levier regulateur
|
82960-82100-000 |
— | ||
|
23
|
23
78463-78000-000 SNAP |
78463-78000-000 |
US $1.60 |
||
|
24
|
24
78472-78000-000
Enjoliveur
|
78472-78000-000 |
— | ||
|
25
|
25
78861-78400-000
GUIDE,DR WINDOW GLASS
|
78861-78400-000 |
— | ||
