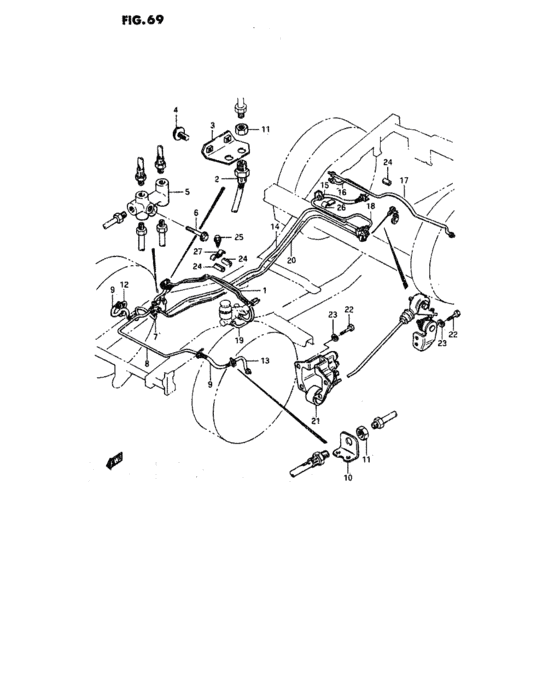

Brake piping (BRAKE PIPING) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-80110-000
Pipe, brake no.1
LHD |
51410-80110-000 |
— | ||
|
1
|
1
51410-80010-000
Pipe, brake no.1
RHD |
51410-80010-000 |
— | ||
|
2
|
2
51570-80030-000 HOSE,MASTER CYLINDER FLEXIBLE |
51570-80030-000 |
US $12.80 |
||
|
3
|
3
51712-80001-000
Bracket, moster cylinder
FROM 51712-80000 |
51712-80001-000 |
— | ||
|
4
|
4
01517-06166-000
Bolt
|
01517-06166-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
5
|
5
51650-80240-000
Joint, 6 way
|
51650-80240-000 |
— | ||
|
6
|
6
01517-06356-000
Bolt, lever
|
01517-06356-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
6
|
6
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
7
|
7
51420-80010-000
Pipe,brake no.2
|
51420-80010-000 |
— | ||
|
8
|
8
51430-80010-000
Pipe, brake no.3
|
51430-80010-000 |
— | ||
|
9
|
9
51540-78050-000
Flexible hose, front brake
|
51540-78050-000 |
— | ||
| replacement | |||||
|
9
|
9
51540-78030-000 HOSE,RR BRAKE FLEXIBLE |
51540-78030-000 |
US $15.84 |
||
|
10
|
10
51711-63000-000
Bracket, brake hose
|
51711-63000-000 |
— | ||
|
11
|
11
09140-16007-000 NUT |
09140-16007-000 |
US $1.92 |
||
|
12
|
12
51440-80010-000
Pipe, brake no.4
|
51440-80010-000 |
— | ||
| replacement | |||||
|
12
|
12
51410-80810-000
New Genuine Part
|
51410-80810-000 |
— | ||
|
13
|
13
51450-80010-000
Pipe, brake no.5
|
51450-80010-000 |
— | ||
| replacement | |||||
|
13
|
13
51420-80810-000
New Genuine Part
|
51420-80810-000 |
— | ||
|
14
|
14
51460-80210-000
Pipe, brake no.6
FROM 51460-80200 |
51460-80210-000 |
— | ||
|
14
|
14
51460-80211-000
Pipe, brake no.6
SJ40000515838~ SJ40V00515838~ |
51460-80211-000 |
— | ||
|
15
|
15
51560-73030-000
HOSE,FLEXIBLE
|
51560-73030-000 |
— | ||
|
16
|
16
51470-80010-000
PIPE,BRAKE NO.7
|
51470-80010-000 |
— | ||
|
17
|
17
51480-80010-000 PIPE,BRAKE NO.8FROM 51480-80000 |
51480-80010-000 |
US $21.90 |
||
|
18
|
18
51500-80210-000
Pipe, brake no.10
|
51500-80210-000 |
— | ||
|
19
|
19
51520-80110-000
Pipe, brake no.12
LHD |
51520-80110-000 |
— | ||
|
19
|
19
51520-80010-000
Pipe, brake no.12
RHD |
51520-80010-000 |
— | ||
|
20
|
20
51390-80210-000
Pipe, brake no.19
FROM 51390-80200 |
51390-80210-000 |
— | ||
|
20
|
20
51390-80211-000
Pipe, brake no.19
SJ40000515838~ SJ40V00515838~ |
51390-80211-000 |
— | ||
|
21
|
21
51930-80220-000
Valve assy, l.s.p.
|
51930-80220-000 |
— | ||
|
22
|
22
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
23
|
23
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
24
|
24
51755-67000-000
New Genuine Part
LHD |
51755-67000-000 |
— | ||
| replacement | |||||
|
24
|
24
51755-77200-000 PROTECTOR,BRAKE PIPELHD |
51755-77200-000 |
US $4.56 |
||
|
25
|
25
09132-05001-000
Screw
LHD |
09132-05001-000 |
— | ||
|
25
|
25
09132-06006-000 SCREW(6X12)TYPE 1,TYPE 2:RHD |
09132-06006-000 |
US $1.60 |
||
|
26
|
26
09403-05302-000 CLAMPClamp |
09403-05302-000 |
US $1.28 |
||
|
27
|
27
09403-08310-000 CLAMPLHD |
09403-08310-000 |
US $1.12 |
||
