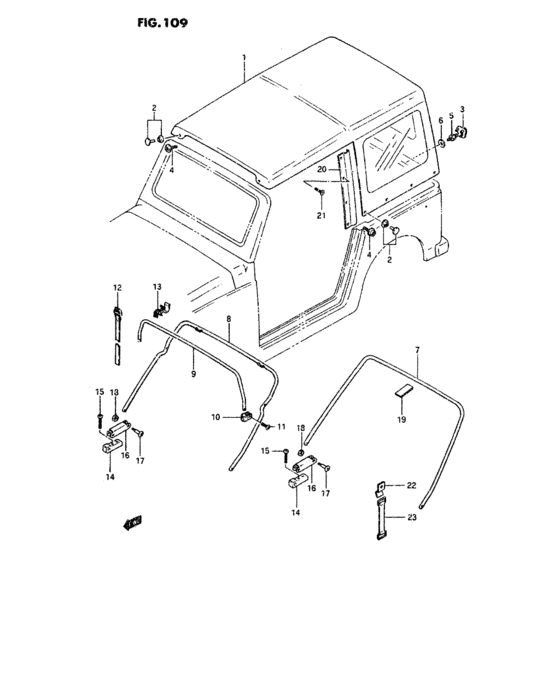

Deck top (SJ410, SJ410Q) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78310-83120-45R
Top assy, deck
|
78310-83120-45R |
— | ||
|
1
|
1
78310-80220-45R
Top assy, deck
Norway |
78310-80220-45R |
— | ||
|
1
|
1
78310-80073-45R
Top assy, deck
Austria FROM 78310-80071-45R |
78310-80073-45R |
— | ||
|
1
|
1
78310-80115-40S
Top assy, deck
|
78310-80115-40S |
— | ||
| replacement | |||||
|
1
|
1
78310-83117-6EP
Deck assy,top
|
78310-83117-6EP |
— | ||
|
1
|
1
78310-80230-40S
Top assy, deck
Norway |
78310-80230-40S |
— | ||
|
1
|
1
78310-80043-40S
Top assy, deck
Austria |
78310-80043-40S |
— | ||
|
1
|
1
78310-80115-40U
Top assy, deck
FROM 78310-80114-40U |
78310-80115-40U |
— | ||
| replacement | |||||
|
1
|
1
78310-83117-40U
Top assy,deck
FROM 78310-80114-40U |
78310-83117-40U |
— | ||
|
1
|
1
78310-80230-40U
Top assy, deck
Norway |
78310-80230-40U |
— | ||
|
1
|
1
78310-80043-40U
Top assy, deck
Austria |
78310-80043-40U |
— | ||
|
1
|
1
78310-80240-55L
Top assy, deck
Norway |
78310-80240-55L |
— | ||
|
1
|
1
78310-80211-55L
Top assy, deck
TYPE DX |
78310-80211-55L |
— | ||
| replacement | |||||
|
1
|
1
78310-83216-6ER
DECK ASSY,TOP
TYPE DX |
78310-83216-6ER |
— | ||
|
1
|
1
78310-80240-55M
Top assy, deck
Norway |
78310-80240-55M |
— | ||
|
1
|
1
78310-80211-55M
Top assy, deck
TYPE DX |
78310-80211-55M |
— | ||
| replacement | |||||
|
1
|
1
78310-83216-55M
TOP ASSY,DECK
TYPE DX |
78310-83216-55M |
— | ||
|
2
|
2
79100-63850-000 HOOK SET |
79100-63850-000 |
US $4.45 |
||
| replacement | |||||
|
2
|
2
79100-63861-000 HOOK SET |
79100-63861-000 |
US $13.60 |
||
|
3
|
3
79133-63040-000
Snap
|
79133-63040-000 |
— | ||
| replacement | |||||
|
3
|
3
79133-63041-000 FEMALE,RR HOOK |
79133-63041-000 |
US $8.64 |
||
|
4
|
4
78491-80001-000
Hook nale
FROM 78491-80000 |
78491-80001-000 |
— | ||
| replacement | |||||
|
4
|
4
78490-82CA2-000 MALE,TOP DECK FR HOOKFROM 78491-80000 |
78490-82CA2-000 |
US $1.52 |
||
|
5
|
5
79134-73001-000
Crochet avant
|
79134-73001-000 |
— | ||
| replacement | |||||
|
5
|
5
79134-73002-000 HOOK,MALE TOP DECK |
79134-73002-000 |
US $1.52 |
||
|
6
|
6
09161-04011-000 WASHER(3.8X12X0.8) |
09161-04011-000 |
US $1.52 |
||
|
7
|
7
78470-80000-000
Arceau arriere
|
78470-80000-000 |
— | ||
| replacement | |||||
|
7
|
7
78470-50C00-000 FRAME,TOP BOW RR |
78470-50C00-000 |
US $281.20 |
||
|
8
|
8
78470-80010-000
Frame, top bow rear
Germany,SJ40000521023~ |
78470-80010-000 |
— | ||
| replacement | |||||
|
8
|
8
78470-80011-000 FRAME,TOP BOW RRGermany,SJ40000521023~ |
78470-80011-000 |
US $82.80 |
||
|
9
|
9
78461-80010-000
Intermediate bow
Germany,SJ40000521023~ |
78461-80010-000 |
— | ||
| replacement | |||||
|
9
|
9
78460-50C00-000
FRAME,TOP BOW MIDDLE
Germany,SJ40000521023~ |
78460-50C00-000 |
— | ||
|
10
|
10
78465-80010-000 STAY,TOPBOW MIDDLEGermany,SJ40000521023~ |
78465-80010-000 |
US $3.83 |
||
|
11
|
11
03241-05255-000
スクリュ
Germany,SJ40000521023~ |
03241-05255-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0525A-000 SCREWGermany,SJ40000521023~ |
03241-0525A-000 |
US $12.50 |
||
|
12
|
12
78490-80010-000
BAND,RR TOP BOW
Germany,SJ40000521023~ |
78490-80010-000 |
— | ||
|
13
|
13
09408-00036-000
Clip
Germany,SJ40000521023~ |
09408-00036-000 |
— | ||
|
14
|
14
78481-80000-000
Charniere
|
78481-80000-000 |
— | ||
| replacement | |||||
|
14
|
14
78481-80001-000 MALE,RR TOPBOW HNG |
78481-80001-000 |
US $14.74 |
||
|
15
|
15
02112-06308-000
6 x 30 cross sc
|
02112-06308-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-06307-000 SCREW |
02112-06307-000 |
from US $0.80 |
||
|
16
|
16
78485-80000-000 FEMALE,RR TOP BOW HINGE |
78485-80000-000 |
US $4.86 |
||
|
16
|
16
78485-80220-000
Female, top bow hinge
Norway |
78485-80220-000 |
— | ||
|
17
|
17
78488-80000-000
ピン,トップボウヒンジ
|
78488-80000-000 |
— | ||
| replacement | |||||
|
17
|
17
78488-8000V-000 PIN,TOPBOW HINGE |
78488-8000V-000 |
US $1.82 |
||
|
18
|
18
08313-11068-000
Nut
|
08313-11068-000 |
— | ||
| replacement | |||||
|
18
|
18
08313-10067-000 NUT |
08313-10067-000 |
from US $1.03 |
||
|
19
|
19
78476-80001-000
Appui
FROM 78476-80000 |
78476-80001-000 |
— | ||
| replacement | |||||
|
19
|
19
78476-80002-000
PAT,RR TOPBOW
FROM 78476-80000 |
78476-80002-000 |
— | ||
|
20
|
20
78411-80100-000
Rail, deck top side
|
78411-80100-000 |
— | ||
| replacement | |||||
|
20
|
20
78411-80101-000 RAIL,DECK TOP SIDE |
78411-80101-000 |
US $27.36 |
||
|
21
|
21
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
21
|
21
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
21
|
21
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
22
|
22
76421-80000-000
Hook, top bow
|
76421-80000-000 |
— | ||
| replacement | |||||
|
22
|
22
76421-80001-000
HOOK,TOP BOW
|
76421-80001-000 |
— | ||
|
23
|
23
09462-00040-000 BANDBand, battery |
09462-00040-000 |
from US $8.99 |
||
