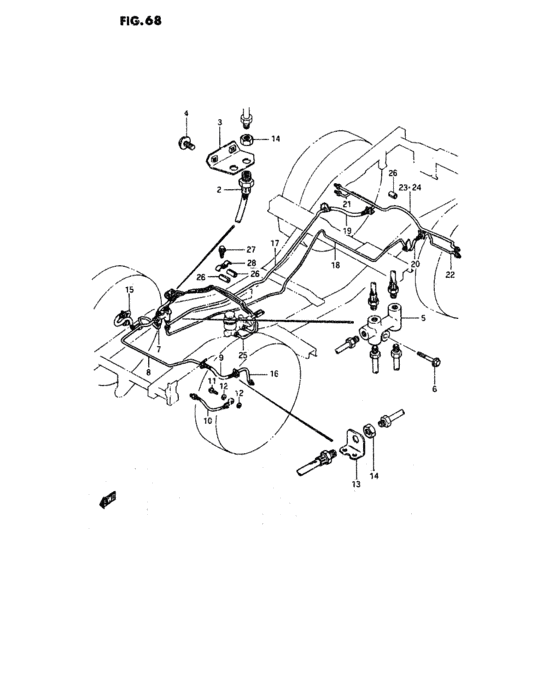

Brake piping (BRAKE PIPING) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-80110-000
Pipe, brake no.1
LHD FROM 51410-80100 |
51410-80110-000 |
— | ||
|
1
|
1
51410-80010-000
Pipe, brake no.1
RHD FROM 51410-80000 |
51410-80010-000 |
— | ||
|
2
|
2
51570-80030-000 HOSE,MASTER CYLINDER FLEXIBLE |
51570-80030-000 |
US $12.80 |
||
|
3
|
3
51712-80001-000
Bracket, moster cylinder
FROM 51712-80000 |
51712-80001-000 |
— | ||
|
4
|
4
01517-06166-000
Bolt
|
01517-06166-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
5
|
5
51640-73000-000 JOINT,5WAY |
51640-73000-000 |
US $64.77 |
||
|
6
|
6
01517-06356-000
Bolt, lever
|
01517-06356-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
6
|
6
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
7
|
7
51420-80010-000
Pipe,brake no.2
|
51420-80010-000 |
— | ||
|
8
|
8
51430-80010-000
Pipe, brake no.3
FROM 51430-80000 |
51430-80010-000 |
— | ||
|
9
|
9
51540-78050-000
Flexible hose, front brake
TYPE 1 IN USE DRUM BRAK FROM,51540-78030 |
51540-78050-000 |
— | ||
| replacement | |||||
|
9
|
9
51540-78030-000 HOSE,RR BRAKE FLEXIBLETYPE 1 IN USE DRUM BRAK FROM,51540-78030 |
51540-78030-000 |
US $15.84 |
||
|
10
|
10
51540-80050-000 HOSE,FR BRAKE FLEXIBLETYPE 2 IN USE DISK BRAKE |
51540-80050-000 |
US $39.38 |
||
|
11
|
11
09360-10016-000
Bolt
TYPE 2 IN USE DISK BRAKE |
09360-10016-000 |
— | ||
| replacement | |||||
|
11
|
11
09360-10017-000 UNIONBolt (10x1.00x24) TYPE 2 IN USE DISK BRAKE |
09360-10017-000 |
from US $1.68 |
||
|
12
|
12
09161-10009-000 WASHER(10X15X1.5)Lock washer TYPE 2 IN USE DISK BRAKE |
09161-10009-000 |
from US $1.06 |
||
|
13
|
13
51711-63000-000
Bracket, brake hose
TYPE 1 IN USE DRUM BRAKE |
51711-63000-000 |
— | ||
|
14
|
14
09140-16007-000 NUTTYPE 1 IN USE DRUM BRAKE |
09140-16007-000 |
US $1.92 |
||
|
15
|
15
51440-80010-000
Pipe, brake no.4
TYPE 1 IN USE DRUM BRAKE FROM,51440-80000 |
51440-80010-000 |
— | ||
| replacement | |||||
|
15
|
15
51410-80810-000
New Genuine Part
TYPE 1 IN USE DRUM BRAKE FROM,51440-80000 |
51410-80810-000 |
— | ||
|
16
|
16
51450-80010-000
Pipe, brake no.5
TYPE 1 IN USE DRUM BRAKE FROM,51450-80000 |
51450-80010-000 |
— | ||
| replacement | |||||
|
16
|
16
51420-80810-000
New Genuine Part
TYPE 1 IN USE DRUM BRAKE FROM,51450-80000 |
51420-80810-000 |
— | ||
|
17
|
17
51460-80010-000
Pipe, brake no.6
FROM 51460-800000 |
51460-80010-000 |
— | ||
|
17
|
17
51460-80011-000
Pipe, brake no.6
SJ40-121006~ |
51460-80011-000 |
— | ||
|
18
|
18
51460-80110-000
Pipe, brake no.6
FROM 51460-80100 |
51460-80110-000 |
— | ||
|
18
|
18
51460-80111-000
Pipe, brake no.6
SJ40T-103428~ |
51460-80111-000 |
— | ||
|
19
|
19
51560-73030-000
HOSE,FLEXIBLE
|
51560-73030-000 |
— | ||
|
20
|
20
51560-80030-000
Flexible hose, rear
|
51560-80030-000 |
— | ||
|
21
|
21
51470-80010-000
PIPE,BRAKE NO.7
|
51470-80010-000 |
— | ||
|
22
|
22
51470-80100-000
Pipe, brake no.7
|
51470-80100-000 |
— | ||
| replacement | |||||
|
22
|
22
51470-80110-000
Pipe, brake no.7
|
51470-80110-000 |
— | ||
|
22
|
22
51470-80110-000
Pipe, brake no.7
SJ40T-101366~ SJ40T00500004~ |
51470-80110-000 |
— | ||
|
23
|
23
51480-80010-000 PIPE,BRAKE NO.8FROM 51480-80000 |
51480-80010-000 |
US $21.90 |
||
|
24
|
24
51480-80100-000
Pipe, brake no.8
|
51480-80100-000 |
— | ||
| replacement | |||||
|
24
|
24
51480-80110-000
Pipe, brake no. 8
|
51480-80110-000 |
— | ||
|
24
|
24
51480-80110-000
Pipe, brake no. 8
SJ40T-101366~ SJ40T00500004~ |
51480-80110-000 |
— | ||
|
25
|
25
51520-80110-000
Pipe, brake no.12
LHD,FROM 51520-80100 |
51520-80110-000 |
— | ||
|
25
|
25
51520-80010-000
Pipe, brake no.12
RHD,FROM 51520-80000 |
51520-80010-000 |
— | ||
|
26
|
26
51755-67000-000
New Genuine Part
LHD |
51755-67000-000 |
— | ||
| replacement | |||||
|
26
|
26
51755-77200-000 PROTECTOR,BRAKE PIPELHD |
51755-77200-000 |
US $4.56 |
||
|
27
|
27
09132-05001-000
Screw
LHD |
09132-05001-000 |
— | ||
|
28
|
28
09403-08310-000 CLAMPLHD |
09403-08310-000 |
US $1.12 |
||
