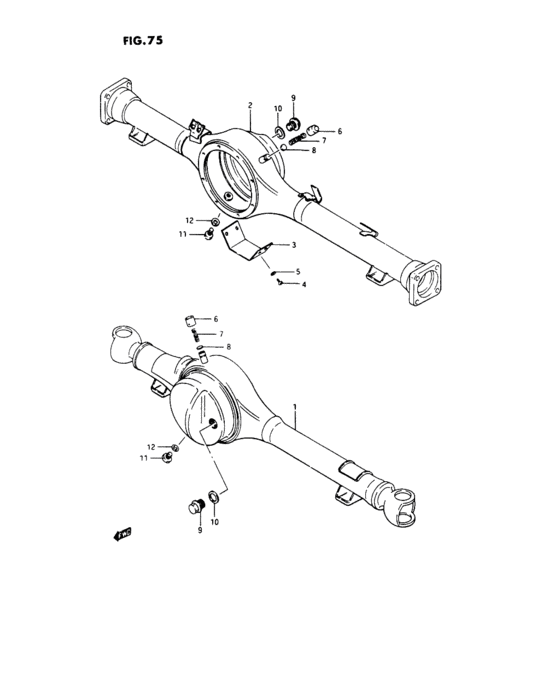

Axle housing (AXLE HOUSING) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46480-83001-000
Housing, front axle
<-46480-83000 |
46480-83001-000 |
— | ||
| replacement | |||||
|
1
|
1
46480-83003-000 HOUSING,FR AXLE<-46480-83000 |
46480-83003-000 |
US $971.52 |
||
|
2
|
2
46510-83001-000
Housing, rear axle
<-46510-83000 |
46510-83001-000 |
— | ||
| replacement | |||||
|
2
|
2
46510-83002-000
HOUSING,RR AXLE
<-46510-83000 |
46510-83002-000 |
— | ||
|
2
|
2
46510-83081-000
Housing, rear axle
TYPE 1:Germany, Austria DIFF LOCK TYPE,<-46510-83080 |
46510-83081-000 |
— | ||
|
2
|
2
46510-83201-000
Housing, rear axle
<-46510-83200 |
46510-83201-000 |
— | ||
|
2
|
2
46510-83281-000
Housing, rear axle
TYPE 1:Germany DIFF LOCK TYPE,<-46510-83280 |
46510-83281-000 |
— | ||
|
2
|
2
46510-83071-000
Housing, rear axle
Italy, <-46510-83070 |
46510-83071-000 |
— | ||
| replacement | |||||
|
2
|
2
46510-83002-000
HOUSING,RR AXLE
Italy, <-46510-83070 |
46510-83002-000 |
— | ||
|
3
|
3
46551-83070-000
Protector, rear axle
Italy |
46551-83070-000 |
— | ||
|
4
|
4
02112-05103-000
Bolt
Italy |
02112-05103-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0510A-000 SCREWItaly |
02112-0510A-000 |
from US $0.76 |
||
|
5
|
5
08321-21053-000 Washer,lock5.1x9.5x1Italy |
08321-21053-000 |
US $1.07 |
||
| replacements | |||||
|
5
|
5
08321-0105B-000 WASHER,LOCKItaly |
08321-0105B-000 |
from US $0.77 |
||
|
5
|
5
08321-0105A-000 WASHER,LOCKItaly |
08321-0105A-000 |
from US $0.76 |
||
|
6
|
6
46541-52002-000 CAP,BREATHER |
46541-52002-000 |
US $1.60 |
||
|
7
|
7
09440-12004-000 SPRING |
09440-12004-000 |
from US $1.15 |
||
|
8
|
8
46542-52000-000
VALVE,BREATHER
|
46542-52000-000 |
— | ||
| replacement | |||||
|
8
|
8
46542-52001-000 VALVE,RR AXLE HSG BREATHER |
46542-52001-000 |
US $1.60 |
||
|
9
|
9
09247-20001-000
プラグ
|
09247-20001-000 |
— | ||
| replacement | |||||
|
9
|
9
09248-20003-000 PLUG |
09248-20003-000 |
from US $2.59 |
||
|
10
|
10
09168-20001-000
Gasket
|
09168-20001-000 |
— | ||
| replacement | |||||
|
10
|
10
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) |
09168-20003-000 |
from US $2.28 |
||
|
11
|
11
09247-12003-000 PLUGPlug (12x13) |
09247-12003-000 |
US $0.96 |
||
|
12
|
12
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
