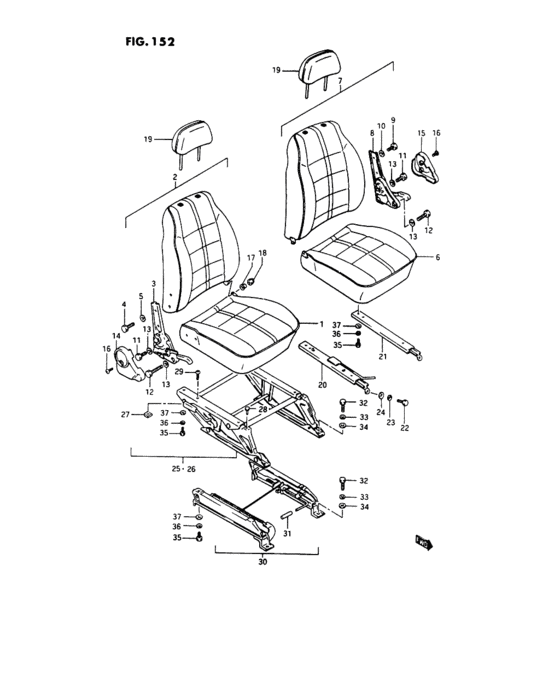

Front seat (FRONT SEAT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-80610-7GP
Cushion assy, front rh
TYPE 1:Indonesia, Switzerland, Germany, Austria, Israel, Jordan |
85101-80610-7GP |
— | ||
|
1
|
1
85101-80610-8HC
Cushion assy, front rh
TYPE 2:Indonesia, Germany, Jordan, Iceland |
85101-80610-8HC |
— | ||
|
1
|
1
85101-80610-9KN
Cushion assy, front rh
TYPE 3:Norway, Switzerland, Germany, Austria, Israel, Jordan |
85101-80610-9KN |
— | ||
|
1
|
1
85101-80620-7GS
Cushion assy, front rh
TYPE 1:Finland, Saudi Arabia |
85101-80620-7GS |
— | ||
|
1
|
1
85101-80620-8FC
Cushion assy, front rh
TYPE 2:Finland, Saudi Arabia |
85101-80620-8FC |
— | ||
|
1
|
1
85101-80620-9DA
Cushion assy, front rh
TYPE 3:Saudi Arabia |
85101-80620-9DA |
— | ||
|
1
|
1
85101-80590-7LT
Cushion assy, front rh
TYPE 1:Switzerland, Germany, Italy, Austria, Israel,,Jordan, Iceland |
85101-80590-7LT |
— | ||
|
1
|
1
85101-80590-8HH
Cushion assy, front rh
TYPE 2:Switzerland, Germany, Italy, Austria, Israel,,Jordan, Iceland |
85101-80590-8HH |
— | ||
|
1
|
1
85101-80590-9KP
Cushion assy, front rh
TYPE 3:Germany, Italy, Austria, Israel, Jordan |
85101-80590-9KP |
— | ||
|
1
|
1
85101-80600-7LW
Cushion assy, front rh
TYPE 1:Finland, Saudi Arabia |
85101-80600-7LW |
— | ||
|
1
|
1
85101-80600-8FD
Cushion assy, front rh
TYPE 2:Finland, Saudi Arabia |
85101-80600-8FD |
— | ||
|
1
|
1
85101-80600-9DC
Cushion assy, front rh
TPE 3:Finland |
85101-80600-9DC |
— | ||
|
2
|
2
85301-80610-7GP
Back assy, front rh
TYPE 1:Indonesia, Switzerland, Germany, Austria, Israel, Jordan |
85301-80610-7GP |
— | ||
|
2
|
2
85301-83070-8HC
Back assy, front rh
TYPE 2:Indonesia |
85301-83070-8HC |
— | ||
|
2
|
2
85301-80620-7GS
Back assy, front rh
TYPE 1:Finland, Saudi Arabia |
85301-80620-7GS |
— | ||
|
2
|
2
85301-83161-8FC
Back assy, front rh
TYPE 2:Finland, Saudi Arabia <-85301-83160-8FC |
85301-83161-8FC |
— | ||
| replacement | |||||
|
2
|
2
85380-80620-8FC
Cover, back rh
TYPE 2:Finland, Saudi Arabia <-85301-83160-8FC |
85380-80620-8FC |
— | ||
|
2
|
2
85301-83161-9DA
Back assy, front rh
TYPE 3:Saudi Arabia |
85301-83161-9DA |
— | ||
| replacement | |||||
|
2
|
2
85380-80620-9DA
Cover, back rh
TYPE 3:Saudi Arabia |
85380-80620-9DA |
— | ||
|
2
|
2
85301-83081-8HC
Back assy, front rh
TYPE 2:Germany, Jordan, Iceland,<-85301-83080-8HC |
85301-83081-8HC |
— | ||
|
2
|
2
85301-83081-9KN
Back assy, front rh
TYPE 3:Norway, Switzerland, Germany, Austria, Israel, Jordan |
85301-83081-9KN |
— | ||
|
2
|
2
85301-80590-7LT
Back assy, front rh
TYPE 1:Switzerland, Germany, Italy, Austria, Israel,,Jordan, Iceland |
85301-80590-7LT |
— | ||
|
2
|
2
85301-83311-8HH
Back assy, front rh
TYPE 2:Switzerland, Germany, Italy, Austria, Jordan,,Iceland <-85301-83310-8HH |
85301-83311-8HH |
— | ||
|
2
|
2
85301-83311-9KP
Back assy, front rh
TYPE 3:Germany, Italy, Austria, Israel, Jordan |
85301-83311-9KP |
— | ||
|
2
|
2
85301-80600-7LW
Back assy, front rh
TYPE 1:Finland, Saudi Arabia |
85301-80600-7LW |
— | ||
|
2
|
2
85301-83181-8FD
Back assy, front rh
TYPE 2:Finland, Saudi Arabia <-85301-83180-8FD |
85301-83181-8FD |
— | ||
| replacement | |||||
|
2
|
2
85380-80600-8FD
Cover, back rh
TYPE 2:Finland, Saudi Arabia <-85301-83180-8FD |
85380-80600-8FD |
— | ||
|
2
|
2
85301-83181-9DC
Back assy, front rh
TYPE 3:Finland, Saudi Arabia |
85301-83181-9DC |
— | ||
| replacement | |||||
|
2
|
2
85380-80600-9DC
Cover, back rh
TYPE 3:Finland, Saudi Arabia |
85380-80600-9DC |
— | ||
|
3
|
3
85210-80302-000
Reclining assy, rh
TYPE 1 |
85210-80302-000 |
— | ||
|
3
|
3
85210-83001-000
Reclinateur cd
TYPE 2,TYPE 3:LHD <-85210-83000 |
85210-83001-000 |
— | ||
| replacement | |||||
|
3
|
3
85210-83001-5PK
Reclining assy,fr seat,r
TYPE 2,TYPE 3:LHD <-85210-83000 |
85210-83001-5PK |
— | ||
|
3
|
3
85210-80290-000
Reclining assy, rh
TYPE 2:RHD |
85210-80290-000 |
— | ||
| replacement | |||||
|
3
|
3
85210-80290-5PK RECLINING,FR SEAT,RTYPE 2:RHD |
85210-80290-5PK |
US $144.62 |
||
|
4
|
4
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
5
|
5
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
5
|
5
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
6
|
6
85102-80610-7GP
Cushion assy, front lh
TYPE 1:Indonesia, Switzerland, Germany, Austria, Israel, Jordan |
85102-80610-7GP |
— | ||
|
6
|
6
85102-80610-8HC
Cushion assy, front lh
TYPE 2:Indonesia, Germany, Jordan, Iceland |
85102-80610-8HC |
— | ||
|
6
|
6
85102-80610-9KN
Cushion assy, front lh
TYPE 3:Norway, Switzerland, Germany, Austria, Israel, Jordan |
85102-80610-9KN |
— | ||
|
6
|
6
85102-80620-7GS
Cushion assy, front lh
TYPE 1:Finland, Saudi Arabia |
85102-80620-7GS |
— | ||
|
6
|
6
85102-80620-8FC
Cushion assy, front lh
TYPE 2:Finland, Saudi Arabia |
85102-80620-8FC |
— | ||
|
6
|
6
85102-80620-9DA
Cushion assy, front lh
TYPE 3:Saudi Arabia |
85102-80620-9DA |
— | ||
|
6
|
6
85102-80590-7LT
Cushion assy, front lh
TYPE 1:Switzerland, Germany, Italy, Austria, Israel,,Jordan, Iceland |
85102-80590-7LT |
— | ||
|
6
|
6
85102-80590-8HH
Cushion assy, front lh
TYPE 2:Switzerland, Germany, Italy, Austria, Jordan, Iceland |
85102-80590-8HH |
— | ||
|
6
|
6
85102-80590-9KP
Cushion assy, front lh
TYPE 3:Germany, Italy, Austria, Israel, Jordan |
85102-80590-9KP |
— | ||
|
6
|
6
85102-80600-7LW
Cushion assy, front lh
TYPE 1:Finland, Saudi Arabia |
85102-80600-7LW |
— | ||
|
6
|
6
85102-80600-8FD
Cushion assy, front lh
TYPE 2:Finland, Saudi Arabia |
85102-80600-8FD |
— | ||
|
6
|
6
85102-80600-9DC
Cushion assy, front lh
TYPE 3:Finland, Saudi Arabia |
85102-80600-9DC |
— | ||
|
7
|
7
85302-80610-7GP
Back assy, front lh
TYPE 1:Indonesia, Switzerland, Germany, Austria, Israel, Jordan |
85302-80610-7GP |
— | ||
|
7
|
7
85302-83081-8HC
Back assy, front lh
TYPE 2:Indonesia <-85302-83080-8HC |
85302-83081-8HC |
— | ||
|
7
|
7
85302-83070-9KN
Back assy, front lh
TYPE 3:Norway, Switzerland, Germany, Austria, Israel, Jordan |
85302-83070-9KN |
— | ||
|
7
|
7
85302-80620-7GS
Back assy, front lh
TYPE 1:Finland, Saudi Arabia |
85302-80620-7GS |
— | ||
|
7
|
7
85302-83350-8FC
Back assy, front lh
TYPE 2:Finland, Saudi Arabia |
85302-83350-8FC |
— | ||
| replacement | |||||
|
7
|
7
85880-80620-8FC
Cover, back lh
TYPE 2:Finland, Saudi Arabia |
85880-80620-8FC |
— | ||
|
7
|
7
85302-83350-9DA
Back assy, front lh
TYPE 3:Saudi Arabia |
85302-83350-9DA |
— | ||
| replacement | |||||
|
7
|
7
85880-80620-9DA
Cover, back lh
TYPE 3:Saudi Arabia |
85880-80620-9DA |
— | ||
|
7
|
7
85302-83070-8HC
Back assy, front lh
TYPE 2:Germany, Jordan, Iceland |
85302-83070-8HC |
— | ||
|
7
|
7
85302-80590-7LT
Back assy, front lh
TYPE 1:Switzerland, Germany, Italy, Austria, Israel,,Jordan, Iceland |
85302-80590-7LT |
— | ||
|
7
|
7
85302-83330-8HH
Back assy, front lh
TYPE 2:Switzerland, Germany, Italy, Austria, Jordan, Iceland |
85302-83330-8HH |
— | ||
|
7
|
7
85302-83330-9KP
Back assy, front lh
TYPE 3:Germany, Italy, Austria, Israel, Jordan |
85302-83330-9KP |
— | ||
|
7
|
7
85302-80600-7LW
Back assy, front lh
TYPE 1:Finland, Saudi Arabia |
85302-80600-7LW |
— | ||
|
7
|
7
85302-83280-8FD
Back assy, front lh
TYPE 2:Finland, Saudi Arabia |
85302-83280-8FD |
— | ||
| replacement | |||||
|
7
|
7
85880-80600-8FD
Cover, back lh
TYPE 2:Finland, Saudi Arabia |
85880-80600-8FD |
— | ||
|
7
|
7
85302-83280-9DC
Back assy, front lh
TYPE 3:Finland, Saudi Arabia |
85302-83280-9DC |
— | ||
| replacement | |||||
|
7
|
7
85880-80600-9DC
Cover, back lh
TYPE 3:Finland, Saudi Arabia |
85880-80600-9DC |
— | ||
|
8
|
8
85710-80302-000
Reclining assy, lh
TYPE 1 |
85710-80302-000 |
— | ||
|
8
|
8
85710-80290-000
Reclinateur cg
TYPE 2:LHD |
85710-80290-000 |
— | ||
| replacement | |||||
|
8
|
8
85710-80290-5PK
RECLINING,FR SEAT,L
TYPE 2:LHD |
85710-80290-5PK |
— | ||
|
8
|
8
85710-83001-000
Reclining assy, lh
TYPE 2,TYPE 3:RHD |
85710-83001-000 |
— | ||
| replacement | |||||
|
8
|
8
85710-83001-5PK
RECLINING,FR SEAT,L
TYPE 2,TYPE 3:RHD |
85710-83001-5PK |
— | ||
|
9
|
9
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
10
|
10
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
11
|
11
01107-10166-000
New Genuine Part
|
01107-10166-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-1016B-000 BoltPlug, oil drain |
01500-1016B-000 |
US $17.30 |
||
|
12
|
12
01107-10406-000
Bolt
|
01107-10406-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-1040A-000 Bolt |
01500-1040A-000 |
from US $2.40 |
||
|
13
|
13
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
13
|
13
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
13
|
13
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
14
|
14
85221-80291-281
Cover,reclining,r
TYPE 1 |
85221-80291-281 |
— | ||
|
14
|
14
85221-82001-281
Cover, reclining, rh
TYPE 2,TYPE 3 |
85221-82001-281 |
— | ||
| replacement | |||||
|
14
|
14
85221-82001-5PK COVER,RECLINING,RTYPE 2,TYPE 3 |
85221-82001-5PK |
US $8.02 |
||
|
15
|
15
85721-80291-281
Cover, reclining lh
TYPE 1 |
85721-80291-281 |
— | ||
|
15
|
15
85721-82001-281
Cover, reclining, lh
TYPE 2,TYPE 3 |
85721-82001-281 |
— | ||
| replacement | |||||
|
15
|
15
85721-82001-5PK COVER,RECLINING,LTYPE 2,TYPE 3 |
85721-82001-5PK |
US $8.02 |
||
|
16
|
16
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
17
|
17
85291-80290-000 BUSH,SEAT BACK FIXING |
85291-80290-000 |
US $2.56 |
||
|
18
|
18
08313-21085-000
Nut
|
08313-21085-000 |
— | ||
| replacements | |||||
|
18
|
18
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
18
|
18
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
19
|
19
86401-80291-59J
Head restraint assy
TYPE 1 |
86401-80291-59J |
— | ||
| replacement | |||||
|
19
|
19
86401-80291-4CD HEADRESTRAINT ASSYTYPE 1 |
86401-80291-4CD |
US $84.64 |
||
|
19
|
19
86401-80291-4CD HEADRESTRAINT ASSYTYPE 2,TYPE 3 |
86401-80291-4CD |
US $84.64 |
||
|
20
|
20
86601-80134-000 RAIL ASSY,FR SEAT SLIDER,R<-86601-80133 |
86601-80134-000 |
US $65.87 |
||
|
21
|
21
86602-80133-000 RAIL ASSY,FR SEAT SLIDE,L<-86602-80132 |
86602-80133-000 |
US $50.78 |
||
|
22
|
22
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
23
|
23
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
24
|
24
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
24
|
24
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
25
|
25
86701-80103-000
Wak in assy
TYPE 1:Finland, Switzerland, Germany, Austria |
86701-80103-000 |
— | ||
|
26
|
26
86701-80300-000
Wak in assy
TYPE 1:Saudi Arabia, Jordan, Iceland |
86701-80300-000 |
— | ||
|
27
|
27
86728-80100-000
Stopper, rear leg
TYPE 1 |
86728-80100-000 |
— | ||
|
28
|
28
09321-06008-000 CUSHIONCap, fuel tank upper rear TYPE 1 |
09321-06008-000 |
from US $1.22 |
||
|
29
|
29
03241-05108-000
New Genuine Part
TYPE 1 |
03241-05108-000 |
— | ||
| replacements | |||||
|
29
|
29
03241-0510A-000 SCREWTYPE 1 |
03241-0510A-000 |
from US $0.80 |
||
|
29
|
29
03242-0510B-000 SCREWTYPE 1 |
03242-0510B-000 |
US $0.76 |
||
|
30
|
30
86701-83001-000
Wak in assy, rh
TYPE 2 <-86701-83000 |
86701-83001-000 |
— | ||
| replacement | |||||
|
30
|
30
86701-83002-000
WALKIN ASSY,FR SEAT,R
TYPE 2 <-86701-83000 |
86701-83002-000 |
— | ||
|
30
|
30
86701-83030-000
Wak in assy, rh
TYPE 3 |
86701-83030-000 |
— | ||
| replacement | |||||
|
30
|
30
86701-83031-000
WALKIN ASSY,FR SEAT,R
TYPE 3 |
86701-83031-000 |
— | ||
|
31
|
31
86736-83000-000 KNOB,LOCK HANDLE |
86736-83000-000 |
US $1.60 |
||
|
32
|
32
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
32
|
32
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
33
|
33
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
33
|
33
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
34
|
34
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
34
|
34
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
35
|
35
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
35
|
35
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
36
|
36
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
36
|
36
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
36
|
36
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
37
|
37
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
37
|
37
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
37
|
37
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
