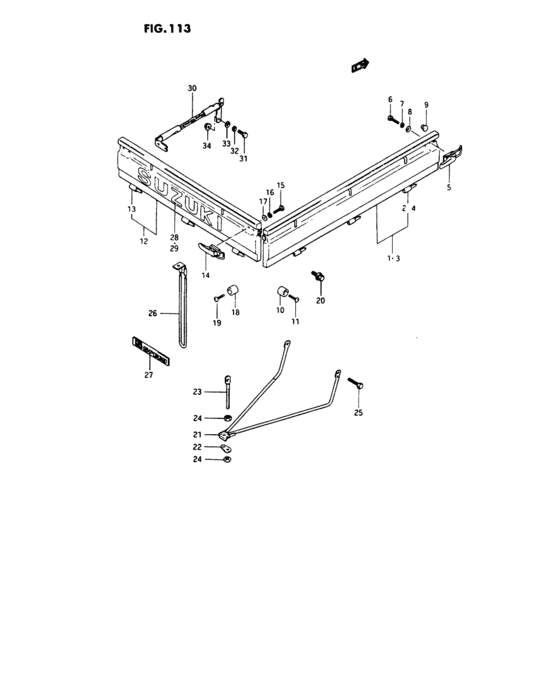

Rear gate and side gate (K) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67100-80202-000
Panel assy, side gate rh
|
67100-80202-000 |
— | ||
|
1
|
1
67100-80242-000
Panel assy, side gate rh
, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
67100-80242-000 |
— | ||
|
2
|
2
67170-85090-000 HINGE,SIDE GATE<-67170-85010 |
67170-85090-000 |
US $28.13 |
||
|
3
|
3
67400-80202-000
Panel assy, side gate lh
|
67400-80202-000 |
— | ||
| replacement | |||||
|
3
|
3
67400-80242-000
Panel assy, side gate lh
|
67400-80242-000 |
— | ||
|
3
|
3
67400-80242-000
Panel assy, side gate lh
, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
67400-80242-000 |
— | ||
|
4
|
4
67470-85090-000
Hinge,side gate
<-67470-85010 |
67470-85090-000 |
— | ||
|
5
|
5
73910-52002-000 HANDLE,GATE LOCK |
73910-52002-000 |
US $56.80 |
||
|
6
|
6
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
7
|
7
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
8
|
8
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
9
|
9
09321-08005-000
CUSHION
|
09321-08005-000 |
— | ||
| replacement | |||||
|
9
|
9
09321-08025-000 Cushion |
09321-08025-000 |
from US $1.76 |
||
|
10
|
10
09320-06003-000 CUSHION |
09320-06003-000 |
US $11.40 |
||
|
11
|
11
02142-05203-000
Screw
|
02142-05203-000 |
— | ||
| replacement | |||||
|
11
|
11
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
12
|
12
67700-85080-000
GATE ASSY,RR
TYPE 1 <-67700-85000 |
67700-85080-000 |
— | ||
|
12
|
12
67700-85200-000
Panel assy, rear gate
TYPE 2,TYPE 3 |
67700-85200-000 |
— | ||
| replacement | |||||
|
12
|
12
67700-85080-000
GATE ASSY,RR
TYPE 2,TYPE 3 |
67700-85080-000 |
— | ||
|
13
|
13
67170-85090-000 HINGE,SIDE GATE<-67170-85010 |
67170-85090-000 |
US $28.13 |
||
|
14
|
14
72820-73003-000
Handle, rear gate lock
|
72820-73003-000 |
— | ||
| replacement | |||||
|
14
|
14
73910-52002-000 HANDLE,GATE LOCK |
73910-52002-000 |
US $56.80 |
||
|
15
|
15
01107-06203-000 JoltBolt, front |
01107-06203-000 |
US $0.75 |
||
| replacement | |||||
|
15
|
15
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
15
|
15
01107-06253-000 ボルト, , Finland, Switzerland, 5, Austria |
01107-06253-000 |
US $1.14 |
||
| replacement | |||||
|
15
|
15
01500-0625A-000 BOLTBolt, gear shift arm , , Finland, Switzerland, 5, Austria |
01500-0625A-000 |
from US $0.80 |
||
|
16
|
16
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
16
|
16
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
17
|
17
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
18
|
18
09320-06011-000 CUSHION |
09320-06011-000 |
from US $2.57 |
||
|
18
|
18
09320-06012-000 CUSHIONCushion, release lever W/OVER FENDER |
09320-06012-000 |
US $32 |
||
|
19
|
19
02142-05203-000
Screw
|
02142-05203-000 |
— | ||
| replacement | |||||
|
19
|
19
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
20
|
20
09103-06076-000
Bolt,6x16
|
09103-06076-000 |
— | ||
|
21
|
21
72860-80201-000
Carrier, spare tire
|
72860-80201-000 |
— | ||
|
22
|
22
57251-67600-000
PLATE,SPARE TIRE CARRIER
|
57251-67600-000 |
— | ||
|
23
|
23
57241-72602-000
BOLT,SPARE TIRE CARRIER
|
57241-72602-000 |
— | ||
|
24
|
24
08310-12106-000
Nut
|
08310-12106-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
24
|
24
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
25
|
25
09100-08268-000
Bolt
|
09100-08268-000 |
— | ||
|
26
|
26
72876-80200-000
Cable, spare tire stopper
Germany |
72876-80200-000 |
— | ||
|
27
|
27
77841-81001-000
Anagrame 5 speed
|
77841-81001-000 |
— | ||
| replacement | |||||
|
27
|
27
77841-81002-000 EMBLEM,5SPEED |
77841-81002-000 |
US $18.24 |
||
|
28
|
28
86831-79050-064
Emblem, suzuki mark
|
86831-79050-064 |
— | ||
|
28
|
28
86831-79050-291
Emblem, suzuki mark
|
86831-79050-291 |
— | ||
|
29
|
29
77841-85200-064
Emblem, suzuki mark
TYPE 2 |
77841-85200-064 |
— | ||
|
29
|
29
77841-85200-019
EMBLEM,SUZUKI MARK SUPPLY
TYPE 2 |
77841-85200-019 |
— | ||
|
30
|
30
73980-77040-000
Chain, rear gate
, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
73980-77040-000 |
— | ||
|
31
|
31
01107-06163-000 Bolt m6x1x16, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
31
|
31
01500-0616A-000 Bolt, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
01500-0616A-000 |
from US $0.76 |
||
|
32
|
32
08321-21063-000 Lock washer, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
32
|
32
08321-0106A-000 WASHER,LOCK, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
08321-0106A-000 |
from US $0.76 |
||
|
33
|
33
08322-21063-000
Washer
, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
08322-21063-000 |
— | ||
| replacement | |||||
|
33
|
33
08322-0106B-000 WASHER, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
08322-0106B-000 |
from US $0.76 |
||
|
34
|
34
08316-16066-000
Nut
, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
08316-16066-000 |
— | ||
| replacement | |||||
|
34
|
34
08316-1006B-000 NUT, , Finland, Sweden, Switzerland, Belgium, 2,,5, Austria, Israel |
08316-1006B-000 |
from US $0.76 |
||
