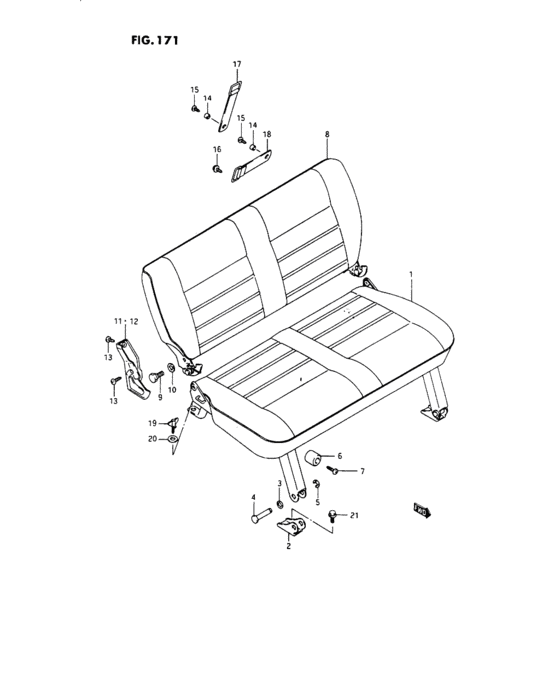

Rear seat (RESIN TOP:W JX) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-83440-8FH
Cushion assy, rear seat
TYPE 2 |
87101-83440-8FH |
— | ||
|
1
|
1
87101-83440-9CZ
Cushion assy, rear seat
TYPE 3 |
87101-83440-9CZ |
— | ||
|
2
|
2
87271-80121-000
Male, seat hinge
|
87271-80121-000 |
— | ||
| replacement | |||||
|
2
|
2
87271-80280-000
MALE,RR SEAT HNG
|
87271-80280-000 |
— | ||
|
3
|
3
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
4
|
4
09208-06001-000
ピン
|
09208-06001-000 |
— | ||
| replacements | |||||
|
4
|
4
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
4
|
4
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
4
|
4
87259-83000-000
ピン,リヤシートヒンジ
|
87259-83000-000 |
— | ||
|
4
|
4
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
|
5
|
5
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
5
|
5
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
5
|
5
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
6
|
6
09320-06014-000 CUSHION |
09320-06014-000 |
US $27.20 |
||
|
7
|
7
03142-05209-000
Screw
|
03142-05209-000 |
— | ||
| replacement | |||||
|
7
|
7
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
8
|
8
87301-83100-8FH
Back assy, seat
TYPE 2 |
87301-83100-8FH |
— | ||
| replacement | |||||
|
8
|
8
87380-83100-8FH
Cover, back
TYPE 2 |
87380-83100-8FH |
— | ||
|
8
|
8
87301-83100-9CZ
Back assy, seat
TYPE 3 |
87301-83100-9CZ |
— | ||
| replacement | |||||
|
8
|
8
87380-83100-9CZ
Cover, back
TYPE 3 |
87380-83100-9CZ |
— | ||
|
9
|
9
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
10
|
10
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
10
|
10
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
11
|
11
87229-83000-000
Cover, hinge outer rh
|
87229-83000-000 |
— | ||
| replacement | |||||
|
11
|
11
87229-83000-5PK COVER,RR SEAT BACK HINGE,R |
87229-83000-5PK |
US $15.06 |
||
|
12
|
12
87629-83000-000
COVER,RR SEAT BACK HINGE,L
|
87629-83000-000 |
— | ||
| replacement | |||||
|
12
|
12
87629-83000-5PK COVER,RR SEAT BACK HNG,L |
87629-83000-5PK |
US $15.06 |
||
|
13
|
13
03241-05085-000
New Genuine Part
|
03241-05085-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
14
|
14
87327-83000-000
COLLAR,SEAT STOPPER BAND
|
87327-83000-000 |
— | ||
|
15
|
15
03241-05145-000
New Genuine Part
|
03241-05145-000 |
— | ||
| replacement | |||||
|
15
|
15
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
16
|
16
09410-00073-000 HOOK |
09410-00073-000 |
from US $2.24 |
||
|
17
|
17
87293-83430-000
Band, seat stopper
|
87293-83430-000 |
— | ||
|
18
|
18
87291-83170-000
BAND,RR SEAT STOPPER RR
|
87291-83170-000 |
— | ||
|
19
|
19
09119-06017-000
Bolt
|
09119-06017-000 |
— | ||
| replacement | |||||
|
19
|
19
09119-06017-XC0 Bolt |
09119-06017-XC0 |
from US $5.07 |
||
|
20
|
20
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
20
|
20
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
21
|
21
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
