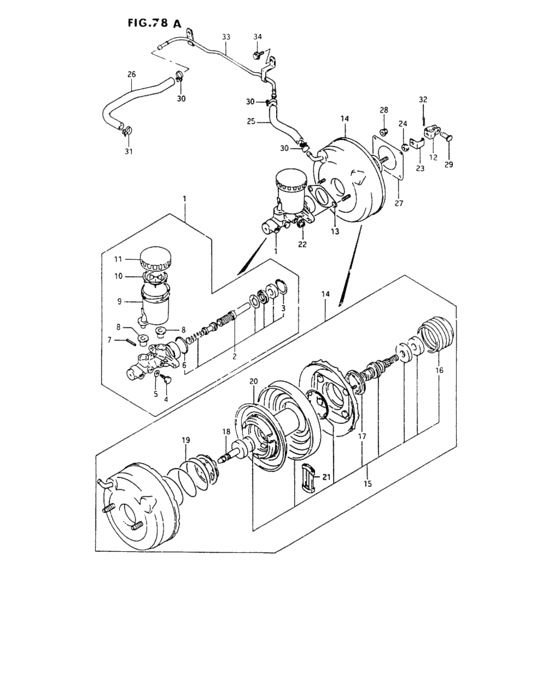

Brake master cylinder (TYPE 5:LHD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-70A60-000
Cyl sub assy, brake master
|
51100-70A60-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-70A41-000 CYLINDER ASSY,BRAKE MASTER |
51100-70A41-000 |
US $292.56 |
||
|
1
|
1
51100-70A40-000
Cylinder assy,brake master
Finland,Norway,Sweden,Switzerland,Belgium,Germany,Holland,Denmark,Italy,Greece,Saudi Arabia, Israel |
51100-70A40-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-70A41-000 CYLINDER ASSY,BRAKE MASTERFinland,Norway,Sweden,Switzerland,Belgium,Germany,Holland,Denmark,Italy,Greece,Saudi Arabia, Israel |
51100-70A41-000 |
US $292.56 |
||
|
2
|
2
51100-70840-000
ピストンセット,ブレーキマスタ
|
51100-70840-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-70842-000 PISTON SET,BRAKE MASTER |
51100-70842-000 |
from US $60 |
||
|
3
|
3
51162-85520-000
サークリップ,ピストンストッパ
|
51162-85520-000 |
— | ||
|
4
|
4
51165-82020-000
ボルト,セカンダリストッパ
|
51165-82020-000 |
— | ||
|
5
|
5
51168-81220-000
リング,ストッパボルトシール
|
51168-81220-000 |
— | ||
|
6
|
6
51185-82020-000
Oリング,マスタシリンダ
|
51185-82020-000 |
— | ||
|
7
|
7
51194-85520-000
ピン
|
51194-85520-000 |
— | ||
| replacement | |||||
|
7
|
7
09205-05016-000 PIN,SPRING(5X32) |
09205-05016-000 |
US $1.12 |
||
|
8
|
8
51197-85520-000 GROMMET,RESERVOIR CONNECTOR |
51197-85520-000 |
US $2.72 |
||
|
9
|
9
51211-60A30-000
Reservoir, master cylinder
N/WARNING |
51211-60A30-000 |
— | ||
| replacement | |||||
|
9
|
9
51200-60A30-000
RESERVOIR ASSY,MASTER CYLINDER
N/WARNING |
51200-60A30-000 |
— | ||
|
9
|
9
51210-70A40-000
リザーバ,マスタシリンダ
W/WARNING,Finland,Norway,Sweden,Switzerland,Belgium,Germany,Holland,Denmark,Italy,Greece,Saudi Arabia, Israel |
51210-70A40-000 |
— | ||
| replacement | |||||
|
9
|
9
51200-70A40-000 RESERVOIR ASSY,MASTER CYLINDERW/WARNING,Finland,Norway,Sweden,Switzerland,Belgium,Germany,Holland,Denmark,Italy,Greece,Saudi Arabia, Israel |
51200-70A40-000 |
US $138.74 |
||
|
10
|
10
51234-60A20-000 STRAINER,MASTER CYLINDER |
51234-60A20-000 |
US $7.68 |
||
|
11
|
11
51220-60A20-000 CAP,RESERVOIR |
51220-60A20-000 |
US $17.60 |
||
|
12
|
12
51182-82020-000
クレビス,プッシュロッド
|
51182-82020-000 |
— | ||
| replacement | |||||
|
12
|
12
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
13
|
13
51199-60A20-000
ガスケット,マスタシリンダ
|
51199-60A20-000 |
— | ||
| replacement | |||||
|
13
|
13
51199-82020-000
GASKET,MASTER CYLINDER
|
51199-82020-000 |
— | ||
|
14
|
14
51300-70A40-000
Booster assy, brake master
|
51300-70A40-000 |
— | ||
| replacement | |||||
|
14
|
14
51300-70A41-000
BOOSTER ASSY,BRAKE MASTER
|
51300-70A41-000 |
— | ||
|
15
|
15
51300-60810-000
REPAIR KIT,BRAKE MASTER
|
51300-60810-000 |
— | ||
|
16
|
16
51330-60A20-000
ブーツ,ブースタボディ
|
51330-60A20-000 |
— | ||
|
17
|
17
51323-60A20-000
シール,ブースタボディ
|
51323-60A20-000 |
— | ||
|
18
|
18
51350-60A20-000
ロッドアッシ,ブースタピストン
|
51350-60A20-000 |
— | ||
|
19
|
19
51360-60A20-000
スプリング,ブースタピストン
|
51360-60A20-000 |
— | ||
|
20
|
20
51363-60A20-000
ピストン,ブースタ
|
51363-60A20-000 |
— | ||
|
21
|
21
51365-60A20-000
キー,バルブストッパ
|
51365-60A20-000 |
— | ||
|
22
|
22
51313-60B00-000
ナット,ブースタ
|
51313-60B00-000 |
— | ||
| replacement | |||||
|
22
|
22
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
|
23
|
23
51348-82020-000
ブラケット,プッシュロッド
|
51348-82020-000 |
— | ||
|
24
|
24
51349-82020-000
ナット,シリンダプッシュロッド
|
51349-82020-000 |
— | ||
| replacements | |||||
|
24
|
24
09140-10019-000 NUT |
09140-10019-000 |
US $9.20 |
||
|
24
|
24
08310-30107-000
New Genuine Part
|
08310-30107-000 |
— | ||
|
25
|
25
51010-83020-000
Hose, brake vacuum
|
51010-83020-000 |
— | ||
| replacement | |||||
|
25
|
25
51010-83021-000
HOSE,BRAKE VACUUM
|
51010-83021-000 |
— | ||
|
26
|
26
51010-83000-000
Hose, brake vacuum intake
|
51010-83000-000 |
— | ||
| replacement | |||||
|
26
|
26
51010-83061-000
Hose,brake vacuum intake
|
51010-83061-000 |
— | ||
|
26
|
26
51010-83260-000
Hose, brake vacuum intake
Sweden,Switzerland |
51010-83260-000 |
— | ||
| replacement | |||||
|
26
|
26
51010-83261-000
New Genuine Part
Sweden,Switzerland |
51010-83261-000 |
— | ||
|
27
|
27
51132-82002-000
パッキング,ブレーキマスタシリンダ
|
51132-82002-000 |
— | ||
| replacement | |||||
|
27
|
27
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
28
|
28
09159-08052-000
ナット
|
09159-08052-000 |
— | ||
| replacement | |||||
|
28
|
28
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
29
|
29
09200-10010-000
ピン
|
09200-10010-000 |
— | ||
| replacement | |||||
|
29
|
29
09200-10021-000 PIN |
09200-10021-000 |
US $1.28 |
||
|
30
|
30
09400-19302-000
クランプ
|
09400-19302-000 |
— | ||
| replacement | |||||
|
30
|
30
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
31
|
31
09400-19302-000
クランプ
|
09400-19302-000 |
— | ||
| replacement | |||||
|
31
|
31
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
32
|
32
04111-25206-000
コッタピン
|
04111-25206-000 |
— | ||
| replacement | |||||
|
32
|
32
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
33
|
33
51380-70A00-000
Pipe comp,brake booster
|
51380-70A00-000 |
— | ||
|
34
|
34
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
34
|
34
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
