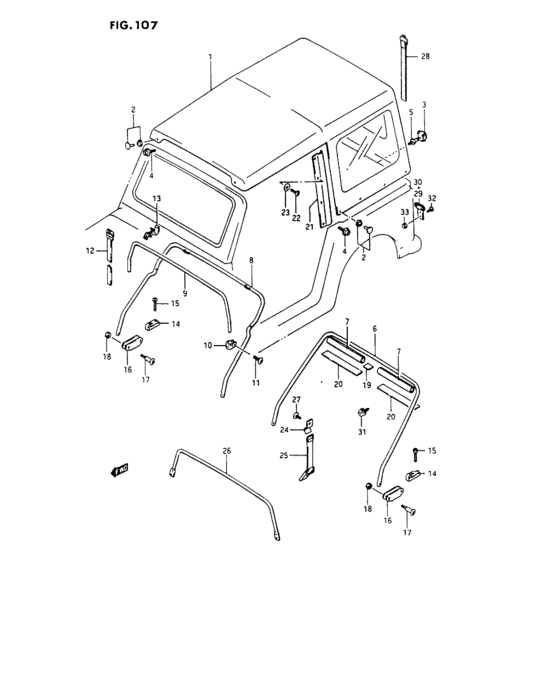

Deck top (Q) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78310-83116-40U
Top assy, deck
BLACK,JA,<-78310-83115-40U |
78310-83116-40U |
— | ||
| replacement | |||||
|
1
|
1
78310-83117-40U
Top assy,deck
BLACK,JA,<-78310-83115-40U |
78310-83117-40U |
— | ||
|
1
|
1
78310-83116-5ME
Top assy, deck
WHITE,JA,<-78310-83115-5ME |
78310-83116-5ME |
— | ||
| replacement | |||||
|
1
|
1
78310-83117-6EP
Deck assy,top
WHITE,JA,<-78310-83115-5ME |
78310-83117-6EP |
— | ||
|
1
|
1
78310-83126-45R
Top assy, deck
GRAY,JA,<-78310-83125-45R |
78310-83126-45R |
— | ||
|
1
|
1
78310-83046-40U
Top assy, deck
BLACK,JA,2 PERSONS,JX:Israel,2,PERSONS,<-78310-83045-40U |
78310-83046-40U |
— | ||
|
1
|
1
78310-83046-5ME
Top assy, deck
WHITE,JA,2 PERSONS,JX:Israel,2,PERSONS,<-78310-83045-5ME |
78310-83046-5ME |
— | ||
|
1
|
1
78310-83075-45R
Top assy, deck
GRAY,JA,2 PERSONS,JX:Israel,2 PERSONS |
78310-83075-45R |
— | ||
|
1
|
1
78310-83215-5BA
Top assy, deck
BROWN,JX,<-78310-83214-5BA |
78310-83215-5BA |
— | ||
| replacement | |||||
|
1
|
1
78310-83216-55M
TOP ASSY,DECK
BROWN,JX,<-78310-83214-5BA |
78310-83216-55M |
— | ||
|
1
|
1
78310-83215-5MF
Top assy, deck
WHITE,JX,<-78310-83214-5MF |
78310-83215-5MF |
— | ||
| replacement | |||||
|
1
|
1
78310-83216-6ER
DECK ASSY,TOP
WHITE,JX,<-78310-83214-5MF |
78310-83216-6ER |
— | ||
|
1
|
1
78310-83215-55M
Top assy, deck
BLACK,JX,<-78310-83214-55M |
78310-83215-55M |
— | ||
| replacement | |||||
|
1
|
1
78310-83216-55M
TOP ASSY,DECK
BLACK,JX,<-78310-83214-55M |
78310-83216-55M |
— | ||
|
1
|
1
78310-83431-5BA
Top assy, deck
BROWN:JX:Norway:2 PERSONS |
78310-83431-5BA |
— | ||
|
1
|
1
78310-83431-5MF
Top assy, deck
WHITE:JX:Norway:2 PERSONS |
78310-83431-5MF |
— | ||
|
1
|
1
78310-83431-55M
Top assy, deck
BLACK:JX:Norway:2 PERSONS |
78310-83431-55M |
— | ||
|
1
|
1
78310-83076-45R
Top assy, deck
GRAY,JX:Holland,New Zealand,2 PERSONS |
78310-83076-45R |
— | ||
|
2
|
2
79100-63860-000
ホックセット(メッキ)
CHROME |
79100-63860-000 |
— | ||
| replacement | |||||
|
2
|
2
79100-63861-000 HOOK SETCHROME |
79100-63861-000 |
US $13.60 |
||
|
3
|
3
79133-63041-000 FEMALE,RR HOOK |
79133-63041-000 |
US $8.64 |
||
|
4
|
4
78491-80011-000
メール,トップデッキフック
|
78491-80011-000 |
— | ||
| replacement | |||||
|
4
|
4
78490-82CA2-000 MALE,TOP DECK FR HOOK |
78490-82CA2-000 |
US $1.52 |
||
|
5
|
5
79134-73002-000 HOOK,MALE TOP DECK |
79134-73002-000 |
US $1.52 |
||
|
6
|
6
78470-80001-000
フレーム,トップボウ,リヤ
|
78470-80001-000 |
— | ||
| replacement | |||||
|
6
|
6
78470-50C00-000 FRAME,TOP BOW RR |
78470-50C00-000 |
US $281.20 |
||
|
7
|
7
78482-80301-000
New Genuine Part
|
78482-80301-000 |
— | ||
| replacement | |||||
|
7
|
7
78483-80301-000
CUSHION,TOP BOW,UPPER
|
78483-80301-000 |
— | ||
|
8
|
8
78470-80011-000 FRAME,TOP BOW RRSwitzerland,Germany,Austria |
78470-80011-000 |
US $82.80 |
||
|
9
|
9
78461-80010-000
Intermediate bow
Switzerland,Germany,Austria |
78461-80010-000 |
— | ||
| replacement | |||||
|
9
|
9
78460-50C00-000
FRAME,TOP BOW MIDDLE
Switzerland,Germany,Austria |
78460-50C00-000 |
— | ||
|
10
|
10
78465-80010-000 STAY,TOPBOW MIDDLESwitzerland,Germany,Austria |
78465-80010-000 |
US $3.83 |
||
|
11
|
11
03241-05255-000
スクリュ
Switzerland,Germany,Austria |
03241-05255-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0525A-000 SCREWSwitzerland,Germany,Austria |
03241-0525A-000 |
US $12.50 |
||
|
12
|
12
78490-80010-000
BAND,RR TOP BOW
Switzerland,Germany,Austria |
78490-80010-000 |
— | ||
|
13
|
13
09408-00036-000
Clip
Switzerland,Germany,Austria |
09408-00036-000 |
— | ||
|
14
|
14
78481-80000-000
Charniere
|
78481-80000-000 |
— | ||
| replacement | |||||
|
14
|
14
78481-80001-000 MALE,RR TOPBOW HNG |
78481-80001-000 |
US $14.74 |
||
|
15
|
15
02112-06303-000
Screw
|
02112-06303-000 |
— | ||
| replacements | |||||
|
15
|
15
02112-0630B-000 SCREW |
02112-0630B-000 |
US $0.76 |
||
|
15
|
15
02112-0630A-000 SCREW |
02112-0630A-000 |
from US $0.80 |
||
|
16
|
16
78485-80000-000 FEMALE,RR TOP BOW HINGE |
78485-80000-000 |
US $4.86 |
||
|
16
|
16
78485-80221-000
Female, top bow hinge
Norway |
78485-80221-000 |
— | ||
|
17
|
17
78488-80000-000
ピン,トップボウヒンジ
|
78488-80000-000 |
— | ||
| replacement | |||||
|
17
|
17
78488-8000V-000 PIN,TOPBOW HINGE |
78488-8000V-000 |
US $1.82 |
||
|
18
|
18
08313-11066-000
ナット
|
08313-11066-000 |
— | ||
| replacements | |||||
|
18
|
18
08313-1006A-000 NUT |
08313-1006A-000 |
from US $0.80 |
||
|
18
|
18
08313-1006B-000 NUT |
08313-1006B-000 |
from US $0.80 |
||
|
19
|
19
78476-80002-000
PAT,RR TOPBOW
|
78476-80002-000 |
— | ||
|
20
|
20
78484-80300-000
SHEET,CUSHION TOPBOW UPPER
|
78484-80300-000 |
— | ||
|
21
|
21
78411-80101-000 RAIL,DECK TOP SIDE |
78411-80101-000 |
US $27.36 |
||
|
22
|
22
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
22
|
22
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
22
|
22
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
23
|
23
09161-04011-000 WASHER(3.8X12X0.8) |
09161-04011-000 |
US $1.52 |
||
|
24
|
24
76421-80001-000
HOOK,TOP BOW
|
76421-80001-000 |
— | ||
|
25
|
25
09462-00040-000 BANDBand, battery |
09462-00040-000 |
from US $8.99 |
||
|
26
|
26
78461-80220-000
Frame, top bow front
Norway |
78461-80220-000 |
— | ||
|
27
|
27
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
27
|
27
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
28
|
28
78490-83000-5EB BAND,TOP BOW |
78490-83000-5EB |
US $58.40 |
||
|
29
|
29
78415-83001-000
ブラケット,テンションバンド,ライト
|
78415-83001-000 |
— | ||
| replacement | |||||
|
29
|
29
78416-83000-000 BRACKET,TENSION BAND |
78416-83000-000 |
US $16.80 |
||
|
30
|
30
78416-83000-000 BRACKET,TENSION BAND |
78416-83000-000 |
US $16.80 |
||
|
31
|
31
78491-83000-000
メール
|
78491-83000-000 |
— | ||
| replacement | |||||
|
31
|
31
78491-8300V-000 MALE,TOPBOW RR |
78491-8300V-000 |
US $2.94 |
||
|
32
|
32
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
32
|
32
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
32
|
32
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
33
|
33
09159-06049-000
ナット
|
09159-06049-000 |
— | ||
| replacement | |||||
|
33
|
33
09159-06037-XC0
NUT
|
09159-06037-XC0 |
— | ||
