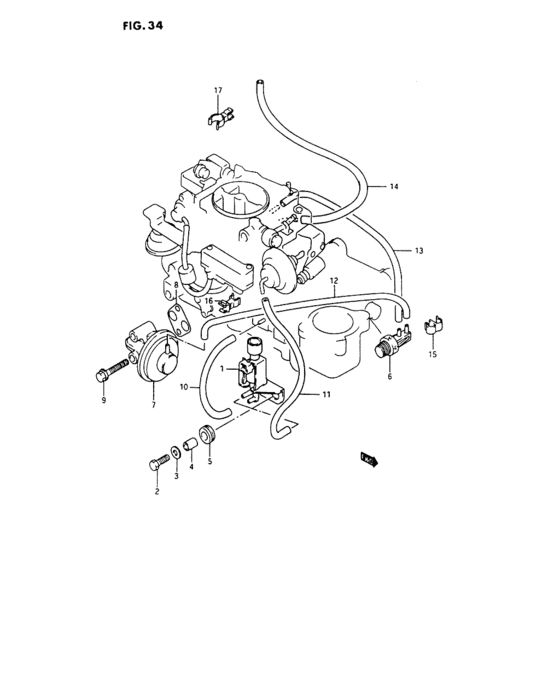

Emission control system (Germany,Holland:W/CATALYZER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18550-82021-000
VALVE ASSY,3WAY SOLENOID
|
18550-82021-000 |
— | ||
|
2
|
2
01107-06203-000 JoltBolt, front |
01107-06203-000 |
US $0.75 |
||
| replacement | |||||
|
2
|
2
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
3
|
3
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
3
|
3
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
4
|
4
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
5
|
5
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
6
|
6
18550-73031-000
Valve, bvs
|
18550-73031-000 |
— | ||
| replacement | |||||
|
6
|
6
18122-80C01-000 VALVE,BVS |
18122-80C01-000 |
US $44.90 |
||
|
7
|
7
18111-82320-000
Valve,e.g.r
|
18111-82320-000 |
— | ||
|
8
|
8
18529-78101-000
ガスケット,EGRバルブ
|
18529-78101-000 |
— | ||
| replacement | |||||
|
8
|
8
18529-60A00-000 GASKET,EGR VALVE |
18529-60A00-000 |
US $1.60 |
||
|
9
|
9
01537-06453-000
ボルト
|
01537-06453-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
10
|
10
09343-03088-000
ホース,#16/3.5X7.5X65
TYPE 4:L:66 |
09343-03088-000 |
— | ||
| replacements | |||||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
TYPE 4:L:66 |
09355-35754-601 |
— | ||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)TYPE 4:L:66 |
09355-35006-601 |
from US $5.78 |
||
|
10
|
10
09343-03090-000
ホース,#20/3.5X7.5X95
TYPE 5:L:95 |
09343-03090-000 |
— | ||
| replacements | |||||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
TYPE 5:L:95 |
09355-35754-601 |
— | ||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)TYPE 5:L:95 |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
09343-03044-000
ホース,#6/3.5X7.5X150
L:150 |
09343-03044-000 |
— | ||
| replacements | |||||
|
11
|
11
09355-35754-601
HOSE(3.5X7.5X601)
L:150 |
09355-35754-601 |
— | ||
|
11
|
11
09355-35006-601 Hose(3.5X7.5X601)L:150 |
09355-35006-601 |
from US $5.78 |
||
|
12
|
12
09343-03035-000
ホース,#12/3.5X7.5X370
L:370 |
09343-03035-000 |
— | ||
| replacements | |||||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
L:370 |
09355-35754-601 |
— | ||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)L:370 |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09343-03032-000
ホース,#18/3.5X7.5X280
L:280 |
09343-03032-000 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
L:280 |
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)L:280 |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09343-03114-000
ホース,#19/3.5X7.5X310
L:310 |
09343-03114-000 |
— | ||
| replacements | |||||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:310 |
09355-35754-601 |
— | ||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:310 |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
16
|
16
09408-00067-000 CLIP |
09408-00067-000 |
US $11 |
||
|
17
|
17
09408-00060-000 CLAMP |
09408-00060-000 |
US $13.20 |
||
