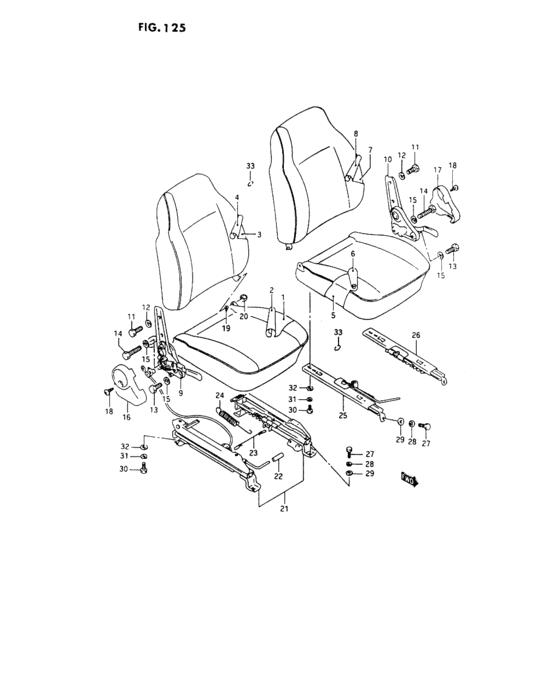

Front seat (JA) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-80290-000
Cushion sub assy, front rh
|
85105-80290-000 |
— | ||
| replacement | |||||
|
1
|
1
85105-80311-000
CUSHION SUB ASSY,FR SEAT,R
|
85105-80311-000 |
— | ||
|
2
|
2
85180-80610-2AL
Cover, cushion rh
GRAY:V:LHD |
85180-80610-2AL |
— | ||
| replacement | |||||
|
2
|
2
85180-80620-2AM
Trim comp,front seat cush,r
GRAY:V:LHD |
85180-80620-2AM |
— | ||
|
2
|
2
85180-80610-2AN
Cover, cushion rh
BROWN:V:LHD |
85180-80610-2AN |
— | ||
|
2
|
2
85180-80590-2AL
Cover, cushion rh
GRAY,RHD,LHD:Morocco,Yemen (South),Barbados |
85180-80590-2AL |
— | ||
| replacement | |||||
|
2
|
2
85180-80620-2AM
Trim comp,front seat cush,r
GRAY,RHD,LHD:Morocco,Yemen (South),Barbados |
85180-80620-2AM |
— | ||
|
3
|
3
85305-83010-000
Back sub assy, front rh
|
85305-83010-000 |
— | ||
| replacement | |||||
|
3
|
3
85305-83011-000
BACK S/ASSY,FR SEAT,R
|
85305-83011-000 |
— | ||
|
4
|
4
85380-83010-2AL
TRIM,FR SEAT BACK,R
GRAY:V:LHD |
85380-83010-2AL |
— | ||
|
4
|
4
85380-83010-2AN
Cover, back rh
BROWN:V:LHD |
85380-83010-2AN |
— | ||
|
4
|
4
85380-83110-2AL
Cover, back rh
GRAY,RHD,LHD:Morocco,Yemen (South),Barbados |
85380-83110-2AL |
— | ||
| replacement | |||||
|
4
|
4
85380-83010-2AL
TRIM,FR SEAT BACK,R
GRAY,RHD,LHD:Morocco,Yemen (South),Barbados |
85380-83010-2AL |
— | ||
|
4
|
4
85380-83110-2AN
Cover, back rh
BROWN,RHD,LHD:Morocco,Yemen (South),Barbados |
85380-83110-2AN |
— | ||
|
5
|
5
85106-80290-000
Cushion sub assy, front lh
|
85106-80290-000 |
— | ||
| replacement | |||||
|
5
|
5
85106-80311-000
CUSHION SUB ASSY,FR SEAT,L
|
85106-80311-000 |
— | ||
|
6
|
6
85680-80610-2AL
Cover, cushion lh
GRAY:V:LHD |
85680-80610-2AL |
— | ||
| replacement | |||||
|
6
|
6
85680-80620-2AM
TRIM,FR SEAT CUSHION,L
GRAY:V:LHD |
85680-80620-2AM |
— | ||
|
6
|
6
85680-80610-2AN
Cover, cushion lh
BROWN:V:LHD |
85680-80610-2AN |
— | ||
|
6
|
6
85680-80590-2AL
Cover, cushion lh
GRAY,RHD,LHD:Morocco,Yemen (South),Barbados |
85680-80590-2AL |
— | ||
| replacement | |||||
|
6
|
6
85680-80620-2AM
TRIM,FR SEAT CUSHION,L
GRAY,RHD,LHD:Morocco,Yemen (South),Barbados |
85680-80620-2AM |
— | ||
|
6
|
6
85680-80590-2AN
Cover, cushion lh
BROWN,RHD,LHD:Morocco,Yemen (South),Barbados |
85680-80590-2AN |
— | ||
|
7
|
7
85306-83010-000
Back sub assy, front lh
|
85306-83010-000 |
— | ||
| replacement | |||||
|
7
|
7
85306-83011-000
BACK S/ASSY,FR SEAT,L
|
85306-83011-000 |
— | ||
|
8
|
8
85880-83010-2AL
Trim comp,front seat back,l
GRAY:V:LHD |
85880-83010-2AL |
— | ||
|
8
|
8
85880-83010-2AN
Cover, back lh
BROWN:V:LHD |
85880-83010-2AN |
— | ||
|
8
|
8
85880-83110-2AL
Cover, back lh
GRAY,RHD,LHD:Morocco,Yemen (South),Barbados |
85880-83110-2AL |
— | ||
| replacement | |||||
|
8
|
8
85880-83010-2AL
Trim comp,front seat back,l
GRAY,RHD,LHD:Morocco,Yemen (South),Barbados |
85880-83010-2AL |
— | ||
|
8
|
8
85880-83110-2AN
Cover, back lh
BROWN,RHD,LHD:Morocco,Yemen (South),Barbados |
85880-83110-2AN |
— | ||
|
9
|
9
85210-83001-281
Reclining assy, rh
LHD |
85210-83001-281 |
— | ||
| replacement | |||||
|
9
|
9
85210-83001-5PK
Reclining assy,fr seat,r
LHD |
85210-83001-5PK |
— | ||
|
9
|
9
85210-80290-281
Reclining assy, rh
RHD |
85210-80290-281 |
— | ||
| replacement | |||||
|
9
|
9
85210-80290-5PK RECLINING,FR SEAT,RRHD |
85210-80290-5PK |
US $144.62 |
||
|
10
|
10
85710-80290-281
Reclining assy, lh
LHD |
85710-80290-281 |
— | ||
| replacement | |||||
|
10
|
10
85710-80290-5PK
RECLINING,FR SEAT,L
LHD |
85710-80290-5PK |
— | ||
|
10
|
10
85710-83001-281
Reclining assy, lh
RHD |
85710-83001-281 |
— | ||
| replacement | |||||
|
10
|
10
85710-83001-5PK
RECLINING,FR SEAT,L
RHD |
85710-83001-5PK |
— | ||
|
11
|
11
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
12
|
12
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
12
|
12
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
13
|
13
01107-10166-000
New Genuine Part
|
01107-10166-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-1016B-000 BoltPlug, oil drain |
01500-1016B-000 |
US $17.30 |
||
|
14
|
14
01107-10406-000
Bolt
|
01107-10406-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-1040A-000 Bolt |
01500-1040A-000 |
from US $2.40 |
||
|
15
|
15
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
15
|
15
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
15
|
15
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
16
|
16
85221-82001-5CW
Cover, reclining rh
BROWN |
85221-82001-5CW |
— | ||
| replacement | |||||
|
16
|
16
85221-82001-5PK COVER,RECLINING,RBROWN |
85221-82001-5PK |
US $8.02 |
||
|
16
|
16
85221-82001-281
Cover, reclining, rh
BLACK |
85221-82001-281 |
— | ||
| replacement | |||||
|
16
|
16
85221-82001-5PK COVER,RECLINING,RBLACK |
85221-82001-5PK |
US $8.02 |
||
|
17
|
17
85721-82001-5CW
Cover, reclining lh
BROWN |
85721-82001-5CW |
— | ||
| replacement | |||||
|
17
|
17
85721-82001-5PK COVER,RECLINING,LBROWN |
85721-82001-5PK |
US $8.02 |
||
|
17
|
17
85721-82001-281
Cover, reclining, lh
BLACK |
85721-82001-281 |
— | ||
| replacement | |||||
|
17
|
17
85721-82001-5PK COVER,RECLINING,LBLACK |
85721-82001-5PK |
US $8.02 |
||
|
18
|
18
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
19
|
19
85291-80290-000 BUSH,SEAT BACK FIXING |
85291-80290-000 |
US $2.56 |
||
|
20
|
20
08313-21085-000
Nut
|
08313-21085-000 |
— | ||
| replacements | |||||
|
20
|
20
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
20
|
20
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
21
|
21
86701-83030-000
Wak in assy, rh
LHD, RH SEAT |
86701-83030-000 |
— | ||
| replacement | |||||
|
21
|
21
86701-83031-000
WALKIN ASSY,FR SEAT,R
LHD, RH SEAT |
86701-83031-000 |
— | ||
|
21
|
21
86901-83030-000
Wak in assy, lh
RHD, LH SEAT |
86901-83030-000 |
— | ||
| replacement | |||||
|
21
|
21
86901-83031-000
WALKIN ASSY,FR SEAT,L
RHD, LH SEAT |
86901-83031-000 |
— | ||
|
22
|
22
86736-83000-000 KNOB,LOCK HANDLE |
86736-83000-000 |
US $1.60 |
||
|
23
|
23
86731-83000-000 ROD,WALKIN TENSION |
86731-83000-000 |
US $8.64 |
||
|
24
|
24
86732-83030-000
SPRING,WALKIN TENSION
|
86732-83030-000 |
— | ||
|
25
|
25
86601-80134-000 RAIL ASSY,FR SEAT SLIDER,RLHD, LH SEAT |
86601-80134-000 |
US $65.87 |
||
|
25
|
25
86602-80133-000 RAIL ASSY,FR SEAT SLIDE,LRHD, RH SEAT |
86602-80133-000 |
US $50.78 |
||
|
26
|
26
86602-80133-000 RAIL ASSY,FR SEAT SLIDE,LLHD, LH SEAT |
86602-80133-000 |
US $50.78 |
||
|
26
|
26
86601-80134-000 RAIL ASSY,FR SEAT SLIDER,RRHD, RH SEAT |
86601-80134-000 |
US $65.87 |
||
|
27
|
27
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
27
|
27
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
28
|
28
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
28
|
28
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
29
|
29
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
29
|
29
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
30
|
30
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
30
|
30
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
31
|
31
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
31
|
31
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
31
|
31
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
32
|
32
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
32
|
32
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
32
|
32
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
33
|
33
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
