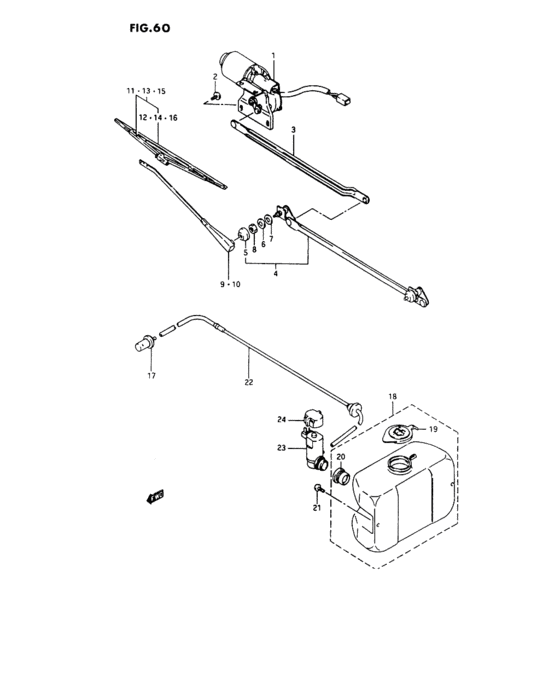

Front wiper and washer (FRONT WIPER AND WASHER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-80020-000
Moteur
LHD |
38101-80020-000 |
— | ||
| replacement | |||||
|
1
|
1
38101-80031-000 MOTOR ASSY,WIPERLHD |
38101-80031-000 |
US $284.80 |
||
|
1
|
1
38101-80001-000
Motor assy, wirer
RHD, TYPE 4 |
38101-80001-000 |
— | ||
| replacement | |||||
|
1
|
1
38101-70A00-000 MOTOR ASSY,WIPERRHD, TYPE 4 |
38101-70A00-000 |
US $364.32 |
||
|
1
|
1
38101-50C00-000 MOTOR ASSY,WIPERRHD, TYPE 5 |
38101-50C00-000 |
US $374.40 |
||
|
2
|
2
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
3
|
3
38255-80000-000 ROD,WIPER LINKLHD |
38255-80000-000 |
US $28 |
||
|
3
|
3
38255-50C00-000 ROD,WIPERRHD, TYPE 5 |
38255-50C00-000 |
US $32.38 |
||
|
4
|
4
38102-80031-000
Biella nippon
LHD |
38102-80031-000 |
— | ||
| replacements | |||||
|
4
|
4
38102-80032-000 LINK ASSY,WIPERLHD |
38102-80032-000 |
US $104 |
||
|
4
|
4
38271-82C00-000 WASHER,WIPER PIVOTLHD |
38271-82C00-000 |
US $2.56 |
||
|
4
|
4
38272-82C00-000 PACKING,WIPER PIVOTLHD |
38272-82C00-000 |
US $2.24 |
||
|
4
|
4
38102-70A00-000
リンクアッシ,ワイパ
RHD, TYPE 4 |
38102-70A00-000 |
— | ||
| replacements | |||||
|
4
|
4
38102-80032-000 LINK ASSY,WIPERRHD, TYPE 4 |
38102-80032-000 |
US $104 |
||
|
4
|
4
38271-82C00-000 WASHER,WIPER PIVOTRHD, TYPE 4 |
38271-82C00-000 |
US $2.56 |
||
|
4
|
4
38272-82C00-000 PACKING,WIPER PIVOTRHD, TYPE 4 |
38272-82C00-000 |
US $2.24 |
||
|
4
|
4
38274-78000-000 CAPRHD, TYPE 4 |
38274-78000-000 |
US $1.76 |
||
|
4
|
4
38278-67011-000 NUTRHD, TYPE 4 |
38278-67011-000 |
US $1.60 |
||
|
4
|
4
38102-50C00-000
リンクアッシ,ワイパ
RHD, TYPE 5 |
38102-50C00-000 |
— | ||
| replacements | |||||
|
4
|
4
38102-50C01-000 LINK ASSY,WIPERRHD, TYPE 5 |
38102-50C01-000 |
US $99.20 |
||
|
4
|
4
38271-82C00-000 WASHER,WIPER PIVOTRHD, TYPE 5 |
38271-82C00-000 |
US $2.56 |
||
|
4
|
4
38272-82C00-000 PACKING,WIPER PIVOTRHD, TYPE 5 |
38272-82C00-000 |
US $2.24 |
||
|
5
|
5
38274-78000-000 CAP |
38274-78000-000 |
US $1.76 |
||
|
6
|
6
38271-71310-000
ワッシャ
|
38271-71310-000 |
— | ||
| replacements | |||||
|
6
|
6
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
US $2.56 |
||
|
6
|
6
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
US $2.24 |
||
|
7
|
7
38272-71310-000
パッキン
|
38272-71310-000 |
— | ||
| replacements | |||||
|
7
|
7
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
US $2.24 |
||
|
7
|
7
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
US $2.56 |
||
|
8
|
8
38278-67011-000 NUT |
38278-67011-000 |
US $1.60 |
||
|
9
|
9
38330-80040-000
ARM ASSY,WIPER,R
LHD |
38330-80040-000 |
— | ||
|
9
|
9
38310-70A00-000
Arm assy,wiper,r
RHD, TYPE 4 |
38310-70A00-000 |
— | ||
|
9
|
9
38310-50C00-000
ARM ASSY,WIPER
RHD, TYPE 5 |
38310-50C00-000 |
— | ||
|
9
|
9
38310-70A10-000
Arm assy, wiper rh
,,7,8:TYPE 4 |
38310-70A10-000 |
— | ||
|
9
|
9
38310-50C10-000
Arm assy, wiper lh
,,8:TYPE 5 |
38310-50C10-000 |
— | ||
|
10
|
10
38310-80040-000
ARM ASSY,WIPER,L
LHD |
38310-80040-000 |
— | ||
|
10
|
10
38330-70A00-000
Arm assy,wiper,l
RHD, TYPE 4 |
38330-70A00-000 |
— | ||
|
10
|
10
38330-50C00-000
アームアッシ,ワイパ,レフト
RHD, TYPE 5 |
38330-50C00-000 |
— | ||
| replacement | |||||
|
10
|
10
38310-50C00-000
ARM ASSY,WIPER
RHD, TYPE 5 |
38310-50C00-000 |
— | ||
|
10
|
10
38330-70A10-000
Arm assy, wiper lh
,,7,8:TYPE 4 |
38330-70A10-000 |
— | ||
|
10
|
10
38330-50C10-000
Arm assy, wiper lh
,,8:TYPE 5 |
38330-50C10-000 |
— | ||
|
11
|
11
38340-63641-000
Balai
LHD |
38340-63641-000 |
— | ||
| replacement | |||||
|
11
|
11
38340-70A10-000
BLADE ASSY,WIPER
LHD |
38340-70A10-000 |
— | ||
|
12
|
12
38346-80020-000
BLADE
LHD |
38346-80020-000 |
— | ||
|
13
|
13
38340-70A00-000 BLADE ASSY,WIPERRHD |
38340-70A00-000 |
US $20 |
||
|
14
|
14
38346-67700-000 BLADERHD |
38346-67700-000 |
US $7.69 |
||
|
15
|
15
38340-70A10-000
BLADE ASSY,WIPER
,,7,8 |
38340-70A10-000 |
— | ||
|
16
|
16
38346-80020-000
BLADE
,,7,8 |
38346-80020-000 |
— | ||
|
17
|
17
38480-80000-000 NOZZLE ASSY,FR WASHER |
38480-80000-000 |
US $24.32 |
||
|
18
|
18
38450-80000-000
TANK ASSY,WASHER
|
38450-80000-000 |
— | ||
|
19
|
19
38452-80000-000
キャップ,ウォッシャタンク
|
38452-80000-000 |
— | ||
| replacement | |||||
|
19
|
19
38452-65D00-000 CAP,WASHER TANK |
38452-65D00-000 |
from US $1.92 |
||
|
20
|
20
38453-75000-000 GROMMET |
38453-75000-000 |
US $1.60 |
||
|
21
|
21
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
21
|
21
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
21
|
21
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
22
|
22
38490-80010-000 HOSE ASSY,WASHER |
38490-80010-000 |
US $6.23 |
||
|
23
|
23
38410-66113-000 PUMP ASSY,WASHERPump assy, washer |
38410-66113-000 |
from US $59.20 |
||
|
24
|
24
38837-79500-000 CAP,WASHER MOTOR |
38837-79500-000 |
US $1.60 |
||
