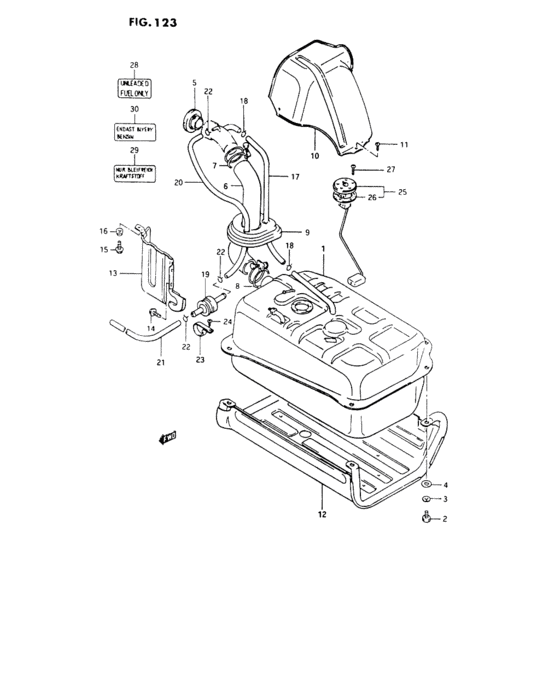

Fuel tank (FUEL TANK) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-80026-000
Tank assy, fuel
|
89101-80026-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-80027-000
TANK ASSY,FUEL
|
89101-80027-000 |
— | ||
|
2
|
2
01107-10303-000 ボルト |
01107-10303-000 |
US $1.72 |
||
| replacement | |||||
|
2
|
2
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
3
|
3
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
3
|
3
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
4
|
4
09160-10001-000
Washer
|
09160-10001-000 |
— | ||
| replacement | |||||
|
4
|
4
09160-10093-000 WASHER(10.5X24X2.3) |
09160-10093-000 |
from US $1.35 |
||
|
5
|
5
85410-79202-000
キャップアッシ,フューエルタンクフィラ
|
85410-79202-000 |
— | ||
| replacement | |||||
|
5
|
5
89260-50C00-000 CAP ASSY,FUEL FILLER |
89260-50C00-000 |
from US $35.24 |
||
|
6
|
6
89241-83020-000 HOSE,FUEL TANK FILLER |
89241-83020-000 |
US $99.20 |
||
|
7
|
7
09400-60301-000 CLAMP |
09400-60301-000 |
US $1.73 |
||
|
8
|
8
09400-53301-000 CLAMP |
09400-53301-000 |
US $2.08 |
||
|
9
|
9
89281-80000-000 DUST SEAT,FUEL TANK INLET |
89281-80000-000 |
US $32 |
||
|
10
|
10
89311-80000-000
PROTECTOR,FUEL INLET PIPE UPR
|
89311-80000-000 |
— | ||
|
10
|
10
89311-80300-000 PROTECTOR,FUEL INLET UPPERW |
89311-80300-000 |
US $44.16 |
||
|
11
|
11
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
11
|
11
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
12
|
12
89320-83001-000
Protector, fuel tank
|
89320-83001-000 |
— | ||
| replacement | |||||
|
12
|
12
89320-83002-000
PROTECTOR,FUEL TANK
|
89320-83002-000 |
— | ||
|
13
|
13
89312-83030-000 PROTECTOR,INLET PIPE LOWER |
89312-83030-000 |
US $29.60 |
||
|
14
|
14
01517-06106-000
Bolt, t/f shift plate
|
01517-06106-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
14
|
14
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
15
|
15
09103-06089-000 BOLT(6X20) |
09103-06089-000 |
US $9.90 |
||
|
16
|
16
09305-07003-000 BUSH |
09305-07003-000 |
US $16.20 |
||
|
17
|
17
09343-11016-000
Hose, breather
|
09343-11016-000 |
— | ||
| replacement | |||||
|
17
|
17
09352-11163-600 HOSE(11X16X600) |
09352-11163-600 |
US $26.40 |
||
|
18
|
18
09401-16301-000 CLAMP |
09401-16301-000 |
US $12.90 |
||
|
19
|
19
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
20
|
20
09344-05014-000
Hose, inlet
|
09344-05014-000 |
— | ||
| replacement | |||||
|
20
|
20
09351-50803-00B HOSE(5X8X2000)Hose, overflow |
09351-50803-00B |
from US $8.66 |
||
|
21
|
21
09344-05014-000
Hose, inlet
|
09344-05014-000 |
— | ||
| replacement | |||||
|
21
|
21
09351-50803-00B HOSE(5X8X2000)Hose, overflow |
09351-50803-00B |
from US $8.66 |
||
|
22
|
22
09401-08402-000 CLIP |
09401-08402-000 |
US $2.18 |
||
|
23
|
23
09403-23401-000 CLAMP |
09403-23401-000 |
US $13.20 |
||
|
24
|
24
03141-06108-000
New Genuine Part
|
03141-06108-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
|
25
|
25
34810-80001-000
Gauge assy, fuel level
|
34810-80001-000 |
— | ||
| replacement | |||||
|
25
|
25
34810-80700-000 GAUGE ASSY,FUEL LEVEL |
34810-80700-000 |
US $66.88 |
||
|
26
|
26
34825-67012-000 GASKET |
34825-67012-000 |
US $1.60 |
||
|
27
|
27
02112-05088-000
Screw
|
02112-05088-000 |
— | ||
| replacement | |||||
|
27
|
27
02112-05087-000 SCREW |
02112-05087-000 |
from US $0.80 |
||
|
28
|
28
86932-73060-000 LABEL,FUEL CAUTIONLabel, fuel caution Holland |
86932-73060-000 |
US $1.52 |
||
|
29
|
29
79115-83000-000
Emblem, fuel caution
Germany,Austria |
79115-83000-000 |
— | ||
|
30
|
30
79115-83011-000
Label, fuel caution
Norway,Sweden |
79115-83011-000 |
— | ||
