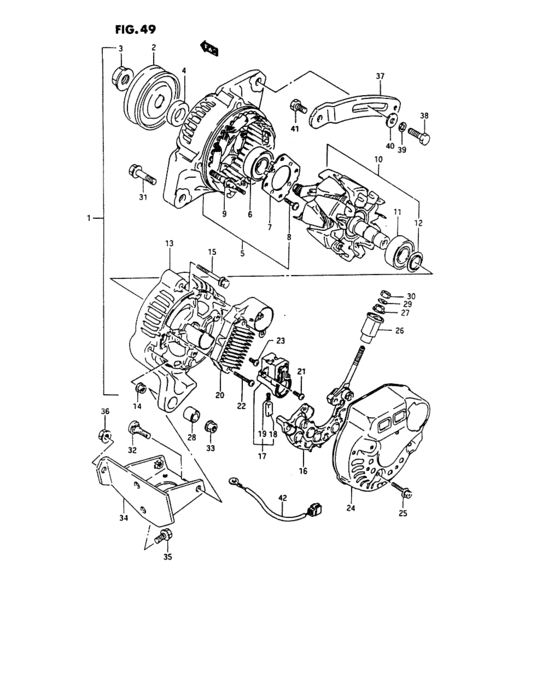

Generator (GENERATOR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-83010-000
Generator
|
31400-83010-000 |
— | ||
| replacements | |||||
|
1
|
1
31400-86010-REM
Alternator
|
31400-86010-REM |
— | ||
|
1
|
1
31400-86011-000 GENERATOR ASSY |
31400-86011-000 |
US $538.56 |
||
|
2
|
2
31171-71310-000 PULLEY |
31171-71310-000 |
US $14.45 |
||
|
3
|
3
31775-85250-000 NUT |
31775-85250-000 |
US $1.82 |
||
|
4
|
4
31792-85250-000 SPACERSpacer, pulley |
31792-85250-000 |
US $5.92 |
||
|
5
|
5
31580-51A10-000
フレームアッシ,ドライブエンド
|
31580-51A10-000 |
— | ||
| replacement | |||||
|
5
|
5
31580-86010-000
フレームアッシ,ドライブエンド
|
31580-86010-000 |
— | ||
|
6
|
6
31582-82610-000
ベアリング
|
31582-82610-000 |
— | ||
| replacement | |||||
|
6
|
6
31582-60F12-000 BEARING |
31582-60F12-000 |
US $22.40 |
||
|
7
|
7
31585-85250-000
リテーナ,ベアリング
|
31585-85250-000 |
— | ||
| replacement | |||||
|
7
|
7
31585-85251-000 RETAINER,BEARINGRetainer, bearing |
31585-85251-000 |
from US $7.36 |
||
|
8
|
8
31586-85250-000 SCREW |
31586-85250-000 |
US $1.21 |
||
|
9
|
9
31587-85250-000 STUD BOLT |
31587-85250-000 |
US $9.31 |
||
|
10
|
10
31710-51A10-000
ロータアッシ
|
31710-51A10-000 |
— | ||
| replacement | |||||
|
10
|
10
31710-85251-000 ROTOR ASSY |
31710-85251-000 |
US $309.12 |
||
|
11
|
11
31612-51A20-000
ベアリング
|
31612-51A20-000 |
— | ||
| replacement | |||||
|
11
|
11
31612-86510-000 BEARING |
31612-86510-000 |
US $29.60 |
||
|
12
|
12
31613-82610-000 COVER,BEARING |
31613-82610-000 |
from US $2.98 |
||
|
13
|
13
31611-86510-000
Frame, end rear
|
31611-86510-000 |
— | ||
|
14
|
14
08310-11056-000
Nut
|
08310-11056-000 |
— | ||
| replacement | |||||
|
14
|
14
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
15
|
15
31651-85250-000
ボルト
|
31651-85250-000 |
— | ||
| replacement | |||||
|
15
|
15
31651-85251-000
Bolt
|
31651-85251-000 |
— | ||
|
16
|
16
31621-86510-000
Holder assy, rectifier
|
31621-86510-000 |
— | ||
| replacement | |||||
|
16
|
16
31621-71C50-000 HOLDER ASSY,RECTIFIER |
31621-71C50-000 |
US $231.84 |
||
|
17
|
17
31656-82611-000
Holder assy, brush
|
31656-82611-000 |
— | ||
| replacement | |||||
|
17
|
17
31656-60G10-000 HOLDER ASSY,BRUSH |
31656-60G10-000 |
US $51.20 |
||
|
18
|
18
31631-82610-000 BRUSH |
31631-82610-000 |
US $6.15 |
||
|
19
|
19
31635-82610-000 SPRING,BRUSH |
31635-82610-000 |
US $1.95 |
||
|
20
|
20
32500-86510-000
Regulator assy, generator
|
32500-86510-000 |
— | ||
| replacement | |||||
|
20
|
20
32500-86210-000 REGULATOR ASSY,GENERATOR |
32500-86210-000 |
US $393.76 |
||
|
21
|
21
31516-85250-000 SCREW |
31516-85250-000 |
from US $0.70 |
||
| replacement | |||||
|
21
|
21
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
22
|
22
31517-82610-000
スクリュ
|
31517-82610-000 |
— | ||
| replacements | |||||
|
22
|
22
02112-3425B-000 SCREW |
02112-3425B-000 |
from US $0.77 |
||
|
22
|
22
02112-34253-000
No description
|
02112-34253-000 |
— | ||
|
23
|
23
31515-85250-000
スクリュ
|
31515-85250-000 |
— | ||
| replacements | |||||
|
23
|
23
02112-0408A-000 SCREW |
02112-0408A-000 |
from US $0.80 |
||
|
23
|
23
02112-04083-000
Screw
|
02112-04083-000 |
— | ||
|
24
|
24
31614-86510-000
Cover, and rear
|
31614-86510-000 |
— | ||
|
25
|
25
31691-85250-000
Bolt
|
31691-85250-000 |
— | ||
|
26
|
26
31514-86510-000 INSULATOR,TERMINAL |
31514-86510-000 |
US $8.48 |
||
|
27
|
27
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
27
|
27
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
27
|
27
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
28
|
28
31616-85250-000 BUSH |
31616-85250-000 |
US $1.80 |
||
|
29
|
29
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
29
|
29
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
30
|
30
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
30
|
30
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
30
|
30
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
31
|
31
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
31
|
31
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
32
|
32
09107-08005-000
BOLT(8X28)
|
09107-08005-000 |
— | ||
|
33
|
33
08316-26083-000
Nut
|
08316-26083-000 |
— | ||
| replacement | |||||
|
33
|
33
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
34
|
34
17910-82000-000
ブラケット,ジェネレータ
|
17910-82000-000 |
— | ||
| replacement | |||||
|
34
|
34
17910-82001-000 BRACKET,GENERATOR |
17910-82001-000 |
US $47.20 |
||
|
35
|
35
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
35
|
35
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
36
|
36
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
36
|
36
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
37
|
37
17921-82000-000
Arm, generator adjusting
|
17921-82000-000 |
— | ||
| replacement | |||||
|
37
|
37
17921-82010-000
ARM,GENERATOR ADJUST
|
17921-82010-000 |
— | ||
|
38
|
38
01107-08253-000 Bolt m8x1.25x25 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
38
|
38
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
39
|
39
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
39
|
39
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
39
|
39
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
40
|
40
09160-08030-000
Washer
|
09160-08030-000 |
— | ||
| replacement | |||||
|
40
|
40
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
41
|
41
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
41
|
41
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
41
|
41
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
42
|
42
36748-80000-000 WIRE,GENERATOR |
36748-80000-000 |
US $5.81 |
||
|
42
|
42
36748-83010-000
Wire, generator
Sweden,Switzerland,Austria:W/CATALYZER |
36748-83010-000 |
— | ||
| replacement | |||||
|
42
|
42
36748-55F00-000
WIRE,GENERATOR
Sweden,Switzerland,Austria:W/CATALYZER |
36748-55F00-000 |
— | ||
