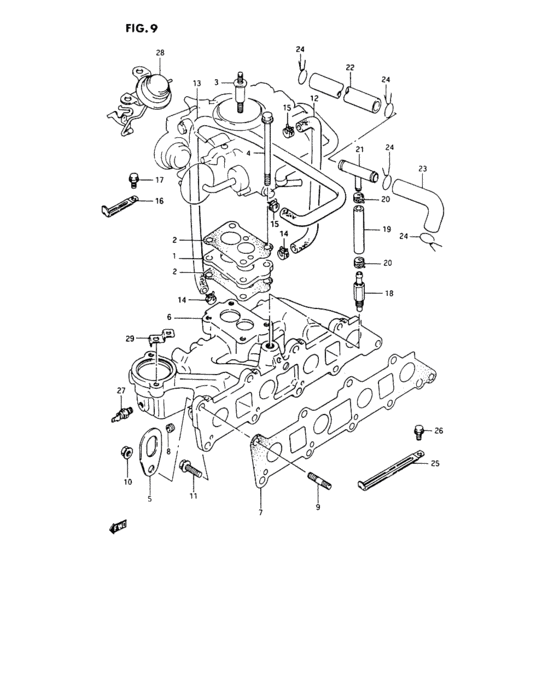

Intake manifold (INTAKE MANIFOLD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13129-83000-000
SPACER,CARBURETOR
|
13129-83000-000 |
— | ||
|
2
|
2
13125-83000-000
Gasket, carburetor
|
13125-83000-000 |
— | ||
| replacement | |||||
|
2
|
2
13121-82X50-000 GASKET,CARB |
13121-82X50-000 |
US $1.98 |
||
|
3
|
3
13839-83000-000
BOLT,INTAKE CASE STUD
|
13839-83000-000 |
— | ||
|
4
|
4
09103-08231-000
Bolt, carburetor
|
09103-08231-000 |
— | ||
| replacement | |||||
|
4
|
4
09103-08134-000 BOLT(8X110)Bolt, collector no.1 |
09103-08134-000 |
from US $1.82 |
||
|
5
|
5
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
5
|
5
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
6
|
6
13110-83000-000
Manifold, intake
W/HEATER |
13110-83000-000 |
— | ||
|
6
|
6
13110-83010-000
Manifold, intake
N/HEATER |
13110-83010-000 |
— | ||
|
6
|
6
13110-83040-000
Manifold, intake
W/HEATER ,,Finland,Norway,Belgium,6,Sinagpore,Italy,Hong Kong, Austria,Israel,8 |
13110-83040-000 |
— | ||
|
6
|
6
13110-83200-000
Manifold, intake
Germany,Holland:W/CATALYZER |
13110-83200-000 |
— | ||
| replacement | |||||
|
6
|
6
17600-60814-000 THERMOSTAT,WATER 82 DEGGermany,Holland:W/CATALYZER |
17600-60814-000 |
from US $24.71 |
||
|
6
|
6
13110-83090-000
Manifold, intake
N/HEATER, Sinagpore, Hong Kong |
13110-83090-000 |
— | ||
| replacement | |||||
|
6
|
6
17600-60814-000 THERMOSTAT,WATER 82 DEGN/HEATER, Sinagpore, Hong Kong |
17600-60814-000 |
from US $24.71 |
||
|
6
|
6
13110-83020-000
Manifold, intake
W/HEATER, Saudi Arabia |
13110-83020-000 |
— | ||
| replacements | |||||
|
6
|
6
13110-83X53-000
MANIFOLD SET
W/HEATER, Saudi Arabia |
13110-83X53-000 |
— | ||
|
6
|
6
17600-60814-000 THERMOSTAT,WATER 82 DEGW/HEATER, Saudi Arabia |
17600-60814-000 |
from US $24.71 |
||
|
6
|
6
13110-83030-000
Manifold, intake
N/HEATER, Saudi Arabia |
13110-83030-000 |
— | ||
| replacements | |||||
|
6
|
6
13110-83X53-000
MANIFOLD SET
N/HEATER, Saudi Arabia |
13110-83X53-000 |
— | ||
|
6
|
6
17600-60814-000 THERMOSTAT,WATER 82 DEGN/HEATER, Saudi Arabia |
17600-60814-000 |
from US $24.71 |
||
|
7
|
7
13119-82601-000
Joint collecteur
|
13119-82601-000 |
— | ||
| replacement | |||||
|
7
|
7
13119-63B11-000 GASKET,INTK MANF |
13119-63B11-000 |
US $48 |
||
|
8
|
8
09246-04002-000
プラグ
|
09246-04002-000 |
— | ||
| replacement | |||||
|
8
|
8
09246-04005-000 PLUGPlug, cylinder head cover |
09246-04005-000 |
from US $2.72 |
||
|
9
|
9
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
10
|
10
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
10
|
10
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
11
|
11
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
11
|
11
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
11
|
11
01517-08256-000
Bolt
|
01517-08256-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
11
|
11
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
12
|
12
13191-83000-000
Hose, carburetor choke inlet
W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
13191-83000-000 |
— | ||
| replacements | |||||
|
12
|
12
13191-83001-000
HOSE,CARB CHOKE INLET
W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
13191-83001-000 |
— | ||
|
12
|
12
09401-12410-000 CLIPClip, filter outlet W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
09401-12410-000 |
from US $1.19 |
||
|
13
|
13
13192-83000-000
Hose, carburetor choke outlet
W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
13192-83000-000 |
— | ||
| replacements | |||||
|
13
|
13
13192-83001-000
HOSE,CARB CHOKE OUTLET
W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
13192-83001-000 |
— | ||
|
13
|
13
09401-12410-000 CLIPClip, filter outlet W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
09401-12410-000 |
from US $1.19 |
||
|
14
|
14
09401-12404-000 CLIPClip W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
09401-12404-000 |
from US $1.52 |
||
|
15
|
15
09401-12405-000 CLIPW/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
09401-12405-000 |
from US $1.60 |
||
|
16
|
16
09404-06404-000
Clamp, fuel hose
W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
09404-06404-000 |
— | ||
| replacements | |||||
|
16
|
16
09404-06434-000
CLAMP(L:80 T:1.0)
W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
09404-06434-000 |
— | ||
|
16
|
16
09404-06433-000
CLAMP(L:80)
W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
09404-06433-000 |
— | ||
|
16
|
16
09404-06436-000 Clamp(L:80)W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
09404-06436-000 |
from US $2.13 |
||
|
16
|
16
09404-06036-000 Clamp(L:80)W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
09404-06036-000 |
from US $1.82 |
||
|
17
|
17
01517-06103-000
ボルト
W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
01517-06103-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0610A-000 BOLTW/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
01550-0610A-000 |
from US $0.80 |
||
|
17
|
17
01550-0610B-000 BoltBolt W/CARB.:AUTO CHOKE ,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Saudi Arabia, Israel,8 |
01550-0610B-000 |
from US $0.80 |
||
|
18
|
18
18118-80010-000 VALVE,PCV |
18118-80010-000 |
US $38.40 |
||
|
19
|
19
09354-70153-285
ホース,7X15X285
|
09354-70153-285 |
— | ||
| replacement | |||||
|
19
|
19
09354-70153-600 HOSE(7X15X600) |
09354-70153-600 |
US $16.80 |
||
|
20
|
20
09401-13406-000
Clamp
|
09401-13406-000 |
— | ||
| replacement | |||||
|
20
|
20
09401-13404-000
CLIP
|
09401-13404-000 |
— | ||
|
21
|
21
09367-14003-000
Reccord 3 voices
|
09367-14003-000 |
— | ||
| replacement | |||||
|
21
|
21
09367-14002-000 JOINT |
09367-14002-000 |
US $58.90 |
||
|
22
|
22
11191-79200-000 HOSE,BREATHER |
11191-79200-000 |
US $35.20 |
||
|
23
|
23
11192-83000-000
Hose, breather
|
11192-83000-000 |
— | ||
| replacement | |||||
|
23
|
23
11191-71C01-000 HOSE,BREATHER NO.1 |
11191-71C01-000 |
US $34.40 |
||
|
24
|
24
09401-18304-000
Clip
|
09401-18304-000 |
— | ||
| replacement | |||||
|
24
|
24
09401-18304-A05 CLIP |
09401-18304-A05 |
from US $2.13 |
||
|
25
|
25
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
25
|
25
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
25
|
25
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
25
|
25
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
25
|
25
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
26
|
26
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
26
|
26
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
27
|
27
34850-82001-000
Gauge assy, water temperature
|
34850-82001-000 |
— | ||
| replacement | |||||
|
27
|
27
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature |
34850-50A00-000 |
from US $40.80 |
||
|
27
|
27
34850-82011-000
Gauge assy,water temperature
Saudi Arabia |
34850-82011-000 |
— | ||
| replacement | |||||
|
27
|
27
34850-14F00-000 GAUGE ASSY,WATER TEMPSaudi Arabia |
34850-14F00-000 |
US $23.57 |
||
|
28
|
28
13280-82100-000
Idle up assy
W/AIR CON |
13280-82100-000 |
— | ||
| replacement | |||||
|
28
|
28
13280-82060-000
Diaphragm assy
W/AIR CON |
13280-82060-000 |
— | ||
|
29
|
29
13194-83000-000
Bracket, carburetor harness
Germany,Holland |
13194-83000-000 |
— | ||
