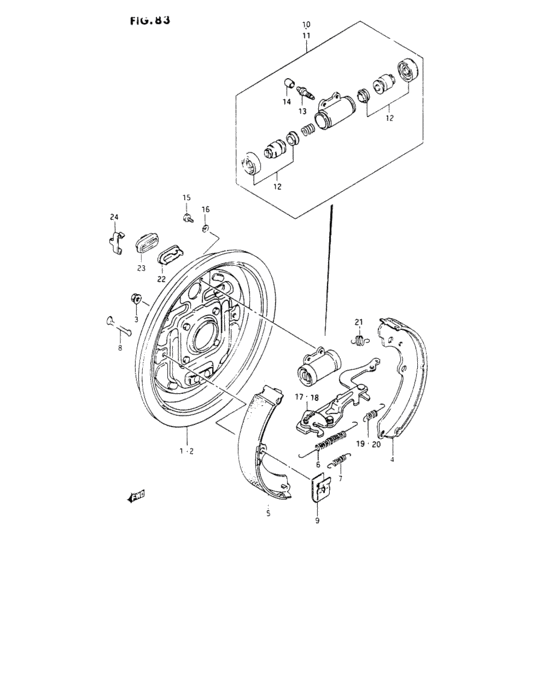

Rear wheel brake (TYPE 5:) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-83300-000
プレート,リヤブレーキバッキング,ライト
|
53110-83300-000 |
— | ||
| replacements | |||||
|
1
|
1
53110-83301-000 PLATE,RR BRAKE BACKING,R |
53110-83301-000 |
US $110.03 |
||
|
1
|
1
53141-70A00-000 PLUG,BACKING PLATE |
53141-70A00-000 |
US $1.76 |
||
|
2
|
2
53160-83300-000
プレート,リヤブレーキバッキング,レフト
|
53160-83300-000 |
— | ||
| replacements | |||||
|
2
|
2
53160-83301-000 PLATE,RR BRAKE BACKING,L |
53160-83301-000 |
US $110.03 |
||
|
2
|
2
53141-70A00-000 PLUG,BACKING PLATE |
53141-70A00-000 |
US $1.76 |
||
|
3
|
3
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
3
|
3
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
4
|
4
53201-83310-000
シュー,ブレーキ,リヤ
|
53201-83310-000 |
— | ||
|
4
|
4
53201-70A00-000
Shoe, rear
,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,7,Italy,Austria,Greece,Israel,8 |
53201-70A00-000 |
— | ||
| replacement | |||||
|
4
|
4
53200-70800-000 SHOE SET,BRAKE RR NON ASBESTOS,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,7,Italy,Austria,Greece,Israel,8 |
53200-70800-000 |
US $93.60 |
||
|
5
|
5
53202-83310-000
シュー,ブレーキ,フロント
|
53202-83310-000 |
— | ||
|
5
|
5
53202-70A00-000
Shoe, front
,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,7,Italy,Austria,Greece,Israel,8 |
53202-70A00-000 |
— | ||
|
6
|
6
53331-80050-000 SPRING,SHOE RETURN |
53331-80050-000 |
US $2.90 |
||
|
7
|
7
53231-83041-000 SPRING,SHOE RETURN B |
53231-83041-000 |
US $2.72 |
||
|
8
|
8
52241-85400-000
ピン,シューホールドダウン
|
52241-85400-000 |
— | ||
| replacement | |||||
|
8
|
8
52241-73040-000 PIN,SHOE HOLD DOWN |
52241-73040-000 |
from US $1.92 |
||
|
9
|
9
52243-79241-000 スプリング,シューホールドダウン |
52243-79241-000 |
US $2.13 |
||
| replacement | |||||
|
9
|
9
52243-70AA0-000 SPRING,SHOE CLAMP |
52243-70AA0-000 |
US $2.24 |
||
|
10
|
10
53401-83310-000 CYLINDER ASSY,REAR WHEEL |
53401-83310-000 |
US $120.85 |
||
|
11
|
11
53402-83300-000 CYLINDER ASSY,REAR WHEEL |
53402-83300-000 |
US $120.85 |
||
|
12
|
12
52400-80820-000 PISTON CUP&BOOT SET |
52400-80820-000 |
US $5.60 |
||
|
13
|
13
52473-83040-000
プラグ,ブリーダ
|
52473-83040-000 |
— | ||
| replacement | |||||
|
13
|
13
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
14
|
14
52474-85200-000
キャップ,ブリーダプラグ
|
52474-85200-000 |
— | ||
| replacements | |||||
|
14
|
14
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
14
|
14
59122-18410-000
Cap, bleeder plug
|
59122-18410-000 |
— | ||
|
15
|
15
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
15
|
15
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
16
|
16
08321-31063-000 Lock washer |
08321-31063-000 |
US $1.07 |
||
| replacement | |||||
|
16
|
16
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
17
|
17
53810-83300-000 LEVER ASSY,R |
53810-83300-000 |
US $42.69 |
||
|
18
|
18
53860-83300-000 LEVER ASSY,L |
53860-83300-000 |
US $42.69 |
||
|
19
|
19
53821-83300-000 SPRING,ROD,R |
53821-83300-000 |
US $2.24 |
||
|
20
|
20
53822-83300-000
スプリング,ロッド,レフト
|
53822-83300-000 |
— | ||
| replacement | |||||
|
20
|
20
53821-83300-000 SPRING,ROD,R |
53821-83300-000 |
US $2.24 |
||
|
21
|
21
53711-83300-000 SPRING,PARKING LEVER RETURN |
53711-83300-000 |
US $1.60 |
||
|
22
|
22
53712-83300-000 CLIP,BRAKE LEVER SEAL |
53712-83300-000 |
US $1.60 |
||
|
23
|
23
53713-83300-000 SEAL,PARKING LEVER |
53713-83300-000 |
US $3.04 |
||
|
24
|
24
53714-83300-000 STOPPER,LEVER |
53714-83300-000 |
US $1.60 |
||
