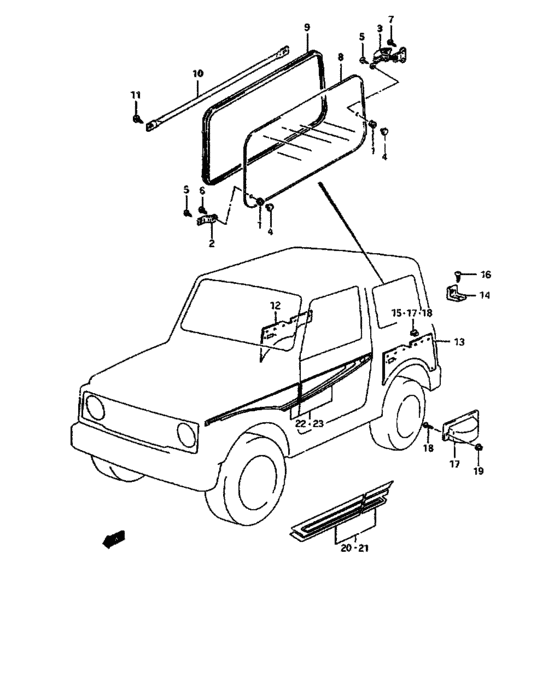

Side window (SIDE WINDOW) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69275-78200-000 PAD,QUARTER WINDOW |
69275-78200-000 |
US $1.44 |
||
|
2
|
2
81411-80101-000 HINGE,QTR WINDOW GLASS |
81411-80101-000 |
US $21.60 |
||
|
3
|
3
81430-80102-000 LOCK,QTR WINDOW GLASS |
81430-80102-000 |
US $60 |
||
|
4
|
4
81451-80102-000 COVER,QUARTER WINDOW GLASS |
81451-80102-000 |
US $2.24 |
||
|
5
|
5
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
6
|
6
09125-05117-000 SCREW(5X6)Screw (5x6) |
09125-05117-000 |
from US $0.96 |
||
|
7
|
7
02142-05167-000 SCREWScrew, air intk guide no.2 |
02142-05167-000 |
from US $0.76 |
||
|
8
|
8
84561-80112-000
ガラス,クォータウィンド(ホワイト)
|
84561-80112-000 |
— | ||
| replacement | |||||
|
8
|
8
84561-82C00-000
GLASS,QTR WINDOW
|
84561-82C00-000 |
— | ||
|
9
|
9
84621-80101-000 WEATHERSTRIP,QTR WDO |
84621-80101-000 |
US $87.20 |
||
|
10
|
10
81111-83001-000
BAR,SIDE WINDOW GUARD
|
81111-83001-000 |
— | ||
|
11
|
11
09125-08015-000
スクリュ,8X20
<-09125-08011 |
09125-08015-000 |
— | ||
| replacement | |||||
|
11
|
11
09125-08015-XC0 SCREW(8X20)<-09125-08011 |
09125-08015-XC0 |
US $1.60 |
||
|
12
|
12
76110-83000-5GR
Trim,side body inr,r(brown)
TYPE 6:JX |
76110-83000-5GR |
— | ||
|
12
|
12
76110-83000-5GT
TRIM,SIDE BODY INNER,R
TYPE 6,TYPE 7:JX |
76110-83000-5GT |
— | ||
|
12
|
12
76110-71X50-2AS
Trim, side body rh
TYPE 6:JX |
76110-71X50-2AS |
— | ||
|
12
|
12
76110-71X50-2AU
Trim, side body rh
TYPE 6:JX |
76110-71X50-2AU |
— | ||
|
12
|
12
76110-71X50-5GT
TRIM,SIDE BODY INNER,R
TYPE 7:JX |
76110-71X50-5GT |
— | ||
|
13
|
13
76120-50C10-5GR
Trim, body inner lh
TYPE 6:JX,<-76120-83000-5GR |
76120-50C10-5GR |
— | ||
|
13
|
13
76120-50C10-5GT
TRIM,SIDE BODY INNER,L
TYPE 6,TYPE 7:JX,<-76120-83000-5GT |
76120-50C10-5GT |
— | ||
|
13
|
13
76120-71A00-2AR
Trim, side body lh
TYPE 6:JX |
76120-71A00-2AR |
— | ||
|
13
|
13
76120-71A00-2AT
Trim, side body lh
TYPE 6:JX |
76120-71A00-2AT |
— | ||
|
13
|
13
76120-71A00-5GT
TRIM,SIDE BODY INNER,L
TYPE 7:JX |
76120-71A00-5GT |
— | ||
|
14
|
14
76131-83000-000
STAY,SIDE BODY TRIM
JX |
76131-83000-000 |
— | ||
|
15
|
15
09409-08303-281
クリップ(ブラック)
JX |
09409-08303-281 |
— | ||
| replacement | |||||
|
15
|
15
09409-08303-000 CLIPJX |
09409-08303-000 |
US $1.82 |
||
|
16
|
16
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
17
|
17
86370-58140-5PK
アッシュトレー,リヤ(ブラック)
JX |
86370-58140-5PK |
— | ||
| replacement | |||||
|
17
|
17
86370-58141-5PK ASHTRAY,RR DRJX |
86370-58141-5PK |
US $16.72 |
||
|
18
|
18
02122-04123-000
Screw
JX |
02122-04123-000 |
— | ||
| replacements | |||||
|
18
|
18
02122-0412B-000 SCREWJX |
02122-0412B-000 |
US $12.90 |
||
|
18
|
18
02122-0412A-000 SCREWScrew, cap JX |
02122-0412A-000 |
from US $3.04 |
||
|
19
|
19
08316-20043-000
Nut
JX |
08316-20043-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-2004A-000 NUTJX |
08316-2004A-000 |
US $12.50 |
||
|
20
|
20
77640-70A00-2HL
Tape, side stripe rh
TYPE 6:JX,BODY:26U,07P,38C,18J,27G,,19H,38B,0AA |
77640-70A00-2HL |
— | ||
|
20
|
20
77640-70A00-2HM
Tape, side stripe rh
TYPE 6:JX, BODY:37V |
77640-70A00-2HM |
— | ||
|
20
|
20
77640-70A00-2HN
Tape, side stripe rh
TYPE 6:JX, BODY:37T,0DM |
77640-70A00-2HN |
— | ||
|
20
|
20
77640-50C00-L84
TAPE,SIDE STRIPE,R
TYPE 7:JX,BODY:26U,38B,19H,1FH,1FG |
77640-50C00-L84 |
— | ||
|
20
|
20
77640-50C00-L85
TAPE,SIDE STRIPE,R
TYPE 7:JX,BODY:37V,0DG |
77640-50C00-L85 |
— | ||
|
21
|
21
77650-70A00-2HL
Tape,side stripe,lh
TYPE 6:JX,BODY:26U,07B,38C,18J,27G,,19H,38B,0AA |
77650-70A00-2HL |
— | ||
|
21
|
21
77650-70A00-2HM
Tape, side stripe lh
TYPE 6:JX, BODY:37V |
77650-70A00-2HM |
— | ||
|
21
|
21
77650-70A00-2HN
Tape, side stripe lh
TYPE 6:JX, BODY:37T,0DM |
77650-70A00-2HN |
— | ||
|
21
|
21
77650-50C00-L84
TAPE,SIDE STRIPE,L
TYPE 7:JX,BODY:26U,38B,19R,1FH,1FG |
77650-50C00-L84 |
— | ||
|
21
|
21
77650-50C00-L85
Tape,side stripe,l
TYPE 7:JX,BODY:37V,0DG |
77650-50C00-L85 |
— | ||
|
22
|
22
77640-70A10-B37
Tape, side stripe rh
SPECIAL |
77640-70A10-B37 |
— | ||
|
23
|
23
77650-70A10-B37
Tape, side stripe lh
SPECIAL |
77650-70A10-B37 |
— | ||
| replacement | |||||
|
23
|
23
77650-70A20-B37
Stripe, body lh
SPECIAL |
77650-70A20-B37 |
— | ||
