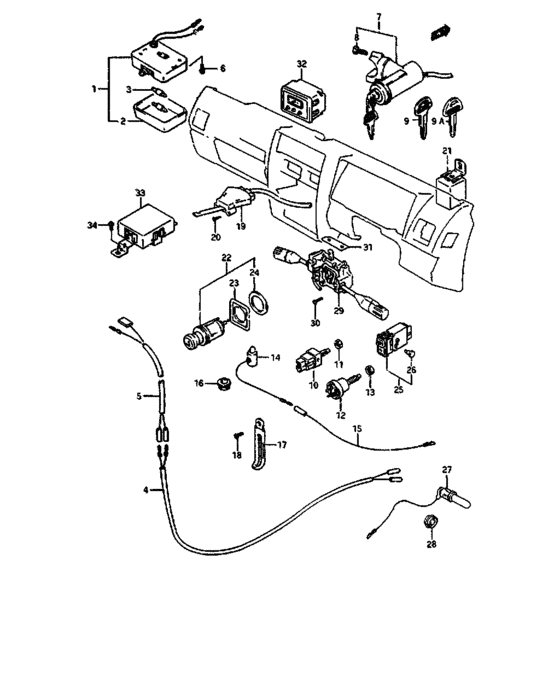

Switch (SWITCH) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-79003-000 LAMP ASSY,ROOM |
36210-79003-000 |
US $91.97 |
||
|
2
|
2
36212-79001-000 LENS,ROOM LAMPLens, room lamp |
36212-79001-000 |
from US $11.80 |
||
|
3
|
3
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.40 |
||
|
4
|
4
36820-80010-000 WIRE,ROOM LAMP NO.2 |
36820-80010-000 |
US $12.16 |
||
|
5
|
5
36820-80001-000 WIRE,ROOM LAMP NO.1 |
36820-80001-000 |
US $13.92 |
||
|
6
|
6
03212-04103-000
Screw
|
03212-04103-000 |
— | ||
| replacement | |||||
|
6
|
6
03211-0410B-000 SCREW |
03211-0410B-000 |
from US $0.80 |
||
|
7
|
7
37100-85210-000 LOCK ASSY,STEERING |
37100-85210-000 |
US $227.20 |
||
|
7
|
7
37100-83880-000 LOCK ASSY,STEERINGJSA0SJ70000406299~,JSA0SJ70V00402772~ |
37100-83880-000 |
US $237.36 |
||
|
8
|
8
37152-66010-000 BOLT,STEERING LOCK |
37152-66010-000 |
US $7.90 |
||
|
8
|
8
37152-60B00-000 BOLT,STEERING LOCKJSA0SJ70000406229~,JSA0SJ70V00402772~ |
37152-60B00-000 |
US $4.27 |
||
|
9
|
9
37145-70010-000
キー,ブランク
OPT,->37145-73302 |
37145-70010-000 |
— | ||
| replacement | |||||
|
9
|
9
37145-73302-000 KEY,BLANKOPT,->37145-73302 |
37145-73302-000 |
US $7.60 |
||
|
9A
|
9A
37145-60B10-000 KEY,BLANKOPT,JSA0SJ70000406229~,JSA0SJ70V00402772~,<-37860-50A00 |
37145-60B10-000 |
US $36.80 |
||
|
10
|
10
37740-60001-000
Switch assy, stop lamp
|
37740-60001-000 |
— | ||
|
11
|
11
09140-10043-000 NUTNut, tie rod rh thread |
09140-10043-000 |
from US $0.91 |
||
|
12
|
12
37830-71500-000
Switch assy,clutch
|
37830-71500-000 |
— | ||
|
13
|
13
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
13
|
13
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
14
|
14
37940-80C00-000
Switch assy, parking brake
|
37940-80C00-000 |
— | ||
|
15
|
15
36850-79500-000 WIRE,BACK DR SWITCH |
36850-79500-000 |
US $2.56 |
||
|
16
|
16
09308-14006-000 GROMMET |
09308-14006-000 |
from US $2.88 |
||
|
17
|
17
09404-06402-000
Clamp, hose (l:60)
|
09404-06402-000 |
— | ||
| replacements | |||||
|
17
|
17
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
17
|
17
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
17
|
17
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
17
|
17
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
18
|
18
03112-05123-000
Screw
|
03112-05123-000 |
— | ||
| replacement | |||||
|
18
|
18
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
19
|
19
37870-80000-000 SWITCH ASSY,HTR FAN MOTOR |
37870-80000-000 |
US $64 |
||
|
20
|
20
03212-04103-000
Screw
|
03212-04103-000 |
— | ||
| replacement | |||||
|
20
|
20
03211-0410B-000 SCREW |
03211-0410B-000 |
from US $0.80 |
||
|
21
|
21
38610-84001-000
リレー,ターンシグナル/4ウェイ
<-38610-50A01 |
38610-84001-000 |
— | ||
| replacement | |||||
|
21
|
21
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way <-38610-50A01 |
38610-76G00-000 |
US $56.80 |
||
|
22
|
22
39400-83810-000
ライタアッシ,シガレット
|
39400-83810-000 |
— | ||
| replacement | |||||
|
22
|
22
39400-83811-000 LIGHTER ASSY,CIGARETTE |
39400-83811-000 |
US $14.40 |
||
|
23
|
23
39471-78001-000 RIM,CIGARETTE LIGHTER |
39471-78001-000 |
US $4.31 |
||
|
24
|
24
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
25
|
25
37860-60A00-000 SWITCH ASSY,RR DEFOGGERW/DEFOGGER |
37860-60A00-000 |
from US $28.84 |
||
|
26
|
26
09471-12135-000 BULB(CLEAR) |
09471-12135-000 |
US $57 |
||
|
27
|
27
37670-80002-000 SWITCH ASSY,DOOR |
37670-80002-000 |
US $21.60 |
||
|
28
|
28
09250-14008-000 CAP(OD:17.3) |
09250-14008-000 |
US $1.12 |
||
|
29
|
29
37400-80410-000
Switch assy, combination
JA,->37400-80421 |
37400-80410-000 |
— | ||
| replacement | |||||
|
29
|
29
37400-80421-000 SWITCH ASSY,COMBJA,->37400-80421 |
37400-80421-000 |
US $766.40 |
||
|
29
|
29
37400-80421-000 SWITCH ASSY,COMBJX |
37400-80421-000 |
US $766.40 |
||
|
30
|
30
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
30
|
30
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
31
|
31
37495-80000-000 SEAT,COMB SW WATER PROOF |
37495-80000-000 |
US $2.72 |
||
|
32
|
32
34600-50A00-000
CLOCK ASSY
JX |
34600-50A00-000 |
— | ||
|
33
|
33
38850-83021-000
Controller, carb
|
38850-83021-000 |
— | ||
|
34
|
34
02142-06088-000
Screw 6 x 8
|
02142-06088-000 |
— | ||
| replacement | |||||
|
34
|
34
02142-06087-000 SCREW |
02142-06087-000 |
from US $0.77 |
||
