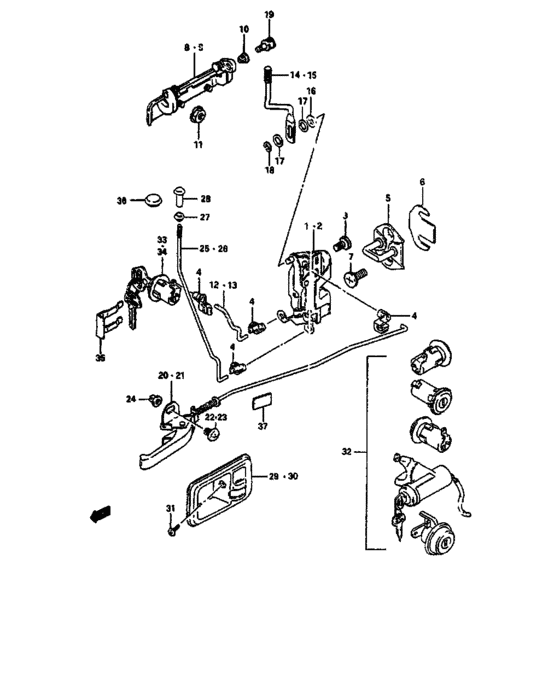

Front door lock (FRONT DOOR LOCK) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-70A01-000 LATCH ASSY,FR DR,R |
82201-70A01-000 |
US $140 |
||
|
1
|
1
82201-82C00-000 LATCH ASSY,FR DR,RJSA0SJ70000305333~,JSA0SJ70V00301540~ |
82201-82C00-000 |
from US $103.41 |
||
|
2
|
2
82202-70A01-000 LATCH ASSY,FR DR,L |
82202-70A01-000 |
US $133.01 |
||
|
2
|
2
82202-82C00-000 LATCH ASSY,FR DR,LJSA0SJ70000305333~,JSA0SJ70V00301540~ |
82202-82C00-000 |
US $104.14 |
||
|
3
|
3
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
3
|
3
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
4
|
4
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
4
|
4
09209-09016-000
Pin
JSA0SJ70000305333~406228,JSA0SJ70V00301540~402771 |
09209-09016-000 |
— | ||
|
5
|
5
82610-85001-000
Striker, latch
|
82610-85001-000 |
— | ||
| replacement | |||||
|
5
|
5
82610-85002-000 STRIKER,FR DOOR LATCH |
82610-85002-000 |
US $39.20 |
||
|
5
|
5
82610-70001-000
Striker, lock
JSA0SJ70000305333~,JSA0SJ70V00301540~ |
82610-70001-000 |
— | ||
|
6
|
6
82681-80100-000 SPACER,STRIKER |
82681-80100-000 |
US $1.60 |
||
|
7
|
7
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
7
|
7
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
7
|
7
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
|
8
|
8
82810-83000-000 HANDLE,DOOR OUTSIDE,R |
82810-83000-000 |
US $79.20 |
||
|
9
|
9
82820-83000-000 HANDLE,DOOR OUTSIDE,L |
82820-83000-000 |
US $79.04 |
||
|
10
|
10
82891-80100-000 SNAP,JOINT |
82891-80100-000 |
US $2.40 |
||
|
11
|
11
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
12
|
12
82291-80100-000 ROD,KEY CYLINDER CONTROL,R~JSA0SJ70000305332,~JSA0SJ70V00301539 |
82291-80100-000 |
US $5.74 |
||
|
13
|
13
82292-80100-000 ROD,KEY CYLINDER CONTROL,L~JSA0SJ70000305332,~JSA0SJ70V00301539 |
82292-80100-000 |
US $5.74 |
||
|
14
|
14
83211-80100-000 ROD,DOOR LOCK OUTSIDE HNDLE,R~JSA0SJ70000305332,~JSA0SJ70V00301539 |
83211-80100-000 |
US $4.38 |
||
|
15
|
15
83212-80100-000 ROD,DOOR LOCK OUTSIDE HNDLE,L~JSA0SJ70000305332,~JSA0SJ70V00301539 |
83212-80100-000 |
US $4.38 |
||
|
16
|
16
09161-04008-000 WASHER(4X12X2)~JSA0SJ70000305332,~JSA0SJ70V00301539 |
09161-04008-000 |
US $16.20 |
||
|
17
|
17
09161-06008-000 WASHER(6.5X13X1)~JSA0SJ70000305332,~JSA0SJ70V00301539 |
09161-06008-000 |
US $10.70 |
||
|
18
|
18
08332-11055-000
E-ring
~JSA0SJ70000305332,~JSA0SJ70V00301539 |
08332-11055-000 |
— | ||
| replacement | |||||
|
18
|
18
08332-1105A-000 E RING~JSA0SJ70000305332,~JSA0SJ70V00301539 |
08332-1105A-000 |
from US $0.91 |
||
|
19
|
19
77716-79000-000 JOINT,ROD~JSA0SJ70000305332,~JSA0SJ70V00301539 |
77716-79000-000 |
US $1.92 |
||
|
20
|
20
83110-80102-5ES HANDLE,DOOR INSIDE,R |
83110-80102-5ES |
US $38.77 |
||
|
20
|
20
83110-80102-5CW HANDLE,DOOR INSIDE,R |
83110-80102-5CW |
US $24.29 |
||
|
21
|
21
83130-80102-5ES HANDLE,DOOR INSIDE,L |
83130-80102-5ES |
US $38.77 |
||
|
21
|
21
83130-80102-5CW HANDLE,DOOR INSIDE,L |
83130-80102-5CW |
US $24.29 |
||
|
22
|
22
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
22
|
22
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
22
|
22
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
23
|
23
03241-06123-000
Screw
JSA0SJ70000413007~,JSA0SJ70V00407103~ |
03241-06123-000 |
— | ||
| replacement | |||||
|
23
|
23
03241-0612A-000 SCREWJSA0SJ70000413007~,JSA0SJ70V00407103~ |
03241-0612A-000 |
US $0.80 |
||
|
24
|
24
09148-06007-000 NUTJSA0SJ70000413007~,JSA0SJ70V00407103~ |
09148-06007-000 |
from US $0.86 |
||
|
25
|
25
83241-80100-000 ROD,DOOR SAFETY LOCK,R |
83241-80100-000 |
US $4.38 |
||
|
26
|
26
83242-80100-000 ROD,DOOR SAFETY LOCK,L |
83242-80100-000 |
US $4.38 |
||
|
27
|
27
78242-61000-000 CAP,LOCK KNOB |
78242-61000-000 |
US $1.52 |
||
|
28
|
28
78241-60002-000 KNOB |
78241-60002-000 |
US $1.52 |
||
|
29
|
29
78471-79001-5ES BEZEL,DR INSIDE HDL,R |
78471-79001-5ES |
US $16.80 |
||
|
29
|
29
78471-79001-5CW BEZEL,DR INSIDE HDL,R |
78471-79001-5CW |
US $6.48 |
||
|
30
|
30
78481-79001-5ES BEZEL,DR INSIDE HDL,L |
78481-79001-5ES |
US $16.80 |
||
|
30
|
30
78481-79001-5CW
Case, handle lh
|
78481-79001-5CW |
— | ||
| replacement | |||||
|
30
|
30
78481-79001-5ES BEZEL,DR INSIDE HDL,L |
78481-79001-5ES |
US $16.80 |
||
|
31
|
31
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
31
|
31
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
32
|
32
77403-80820-000
Lock set
|
77403-80820-000 |
— | ||
|
32
|
32
77403-80830-000
Lock set
|
77403-80830-000 |
— | ||
|
32
|
32
37101-83820-5PK
ロックセット
JSA0SJ70000406229~,JSA0SJ70V00402772~,<-37101-83860-5PK |
37101-83820-5PK |
— | ||
| replacements | |||||
|
32
|
32
03241-0410A-000 SCREWJSA0SJ70000406229~,JSA0SJ70V00402772~,<-37101-83860-5PK |
03241-0410A-000 |
from US $0.80 |
||
|
32
|
32
37101-83822-5PK
LOCK SET
JSA0SJ70000406229~,JSA0SJ70V00402772~,<-37101-83860-5PK |
37101-83822-5PK |
— | ||
|
32
|
32
03242-04103-000
Screw
JSA0SJ70000406229~,JSA0SJ70V00402772~,<-37101-83860-5PK |
03242-04103-000 |
— | ||
|
33
|
33
77400-70812-000 CYLINDER,FR DR LATCH LOCK,R |
77400-70812-000 |
US $36.80 |
||
|
33
|
33
82200-80851-000 CYLINDER,DR LOCKJSA0SJ70000406229~,JSA0SJ70V00402772~ |
82200-80851-000 |
US $53.73 |
||
|
34
|
34
77400-70832-000 CYLINDER,FR DR LATCH LOCK,L |
77400-70832-000 |
US $36.80 |
||
|
34
|
34
82200-80861-000 CYLINDER,FR DR LOCK,LJSA0SJ70000406229~,JSA0SJ70V00402772~ |
82200-80861-000 |
US $53.73 |
||
|
35
|
35
77461-78000-000 CLIP |
77461-78000-000 |
US $6.88 |
||
|
35
|
35
89345-60B00-000 CLIP,FUEL FILLER LID KEY LOCKJSA0SJ70000406229~,JSA0SJ70V00402772~ |
89345-60B00-000 |
US $2.13 |
||
|
36
|
36
09250-14003-000 CAP(OD:18) |
09250-14003-000 |
US $2.08 |
||
|
37
|
37
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
