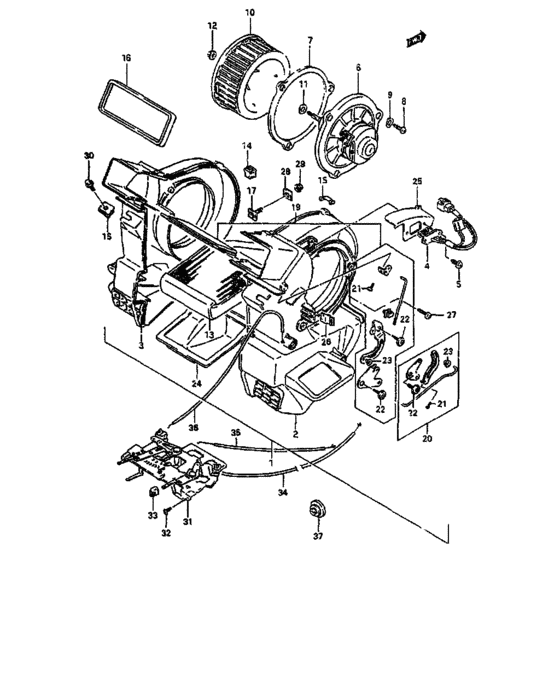

Car heater (~JSA0SJ70000413354,~JSA0SJ70V00407736) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-70A01-000
ヒータアッシ
->74100-70A02 |
74100-70A01-000 |
— | ||
| replacement | |||||
|
1
|
1
74100-70A02-000
Heater unit
->74100-70A02 |
74100-70A02-000 |
— | ||
|
2
|
2
74111-83003-000
ケース,ヒータ,ライト
->74111-83004 |
74111-83003-000 |
— | ||
| replacements | |||||
|
2
|
2
74111-83004-000 CASE,HEATER,R->74111-83004 |
74111-83004-000 |
US $60.35 |
||
|
2
|
2
74140-70A40-000 REGISTER->74111-83004 |
74140-70A40-000 |
US $29.26 |
||
|
3
|
3
74112-83004-000 CASE,HEATER,L |
74112-83004-000 |
US $55.94 |
||
|
4
|
4
74120-83000-000 REGISTER |
74120-83000-000 |
US $32 |
||
|
5
|
5
03141-04103-000
スクリュ
|
03141-04103-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0410A-000 SCREW |
03141-0410A-000 |
US $0.80 |
||
|
6
|
6
74140-83000-000 MOTOR ASSY,HEATER |
74140-83000-000 |
US $299.92 |
||
|
7
|
7
88153-80070-000
パッキング
|
88153-80070-000 |
— | ||
| replacement | |||||
|
7
|
7
74261-86000-000 PACKING,MOTOR |
74261-86000-000 |
US $9.64 |
||
|
8
|
8
03212-05163-000
Screw
|
03212-05163-000 |
— | ||
| replacements | |||||
|
8
|
8
03212-0516B-000
SCREW
|
03212-0516B-000 |
— | ||
|
8
|
8
13765-48GV0-000 Screw |
13765-48GV0-000 |
from US $3.55 |
||
|
9
|
9
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
10
|
10
88140-80070-000
ファン,ブロア
|
88140-80070-000 |
— | ||
| replacement | |||||
|
10
|
10
74141-50A00-000 FAN,BLOWER |
74141-50A00-000 |
US $31.20 |
||
|
11
|
11
74131-82000-000
ワッシャ,ファン
|
74131-82000-000 |
— | ||
| replacement | |||||
|
11
|
11
17112-82000-000 WASHER,FAN |
17112-82000-000 |
US $0.85 |
||
|
12
|
12
08316-20053-000
Nut
|
08316-20053-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-2005A-000 NUT |
08316-2005A-000 |
from US $0.80 |
||
|
13
|
13
74130-83000-000 UNIT,HEATER |
74130-83000-000 |
US $382.72 |
||
|
14
|
14
74175-8000G-000
Bush
|
74175-8000G-000 |
— | ||
|
15
|
15
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
16
|
16
74165-83000-000 PACKING |
74165-83000-000 |
US $6.40 |
||
|
17
|
17
74180-80000-000 BRACKET |
74180-80000-000 |
US $4.05 |
||
|
18
|
18
74171-80000-000 HOLDER,HEATER UNIT |
74171-80000-000 |
US $4.86 |
||
|
19
|
19
74170-70A01-000 LEVER ASSY,VENT |
74170-70A01-000 |
US $24.66 |
||
|
20
|
20
74180-70A01-000
LEVER ASSY,HEAT
|
74180-70A01-000 |
— | ||
|
21
|
21
02112-03083-000
Screw
|
02112-03083-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0308A-000 SCREW |
02112-0308A-000 |
from US $2.84 |
||
|
22
|
22
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
23
|
23
74146-70B00-000 BUSH,AIR MIX LEVER |
74146-70B00-000 |
US $3.90 |
||
|
24
|
24
74114-83001-000
ダンパ
|
74114-83001-000 |
— | ||
| replacement | |||||
|
24
|
24
74114-83002-000 DAMPER |
74114-83002-000 |
US $12.64 |
||
|
25
|
25
74119-83000-000
PLATE
|
74119-83000-000 |
— | ||
|
26
|
26
74151-85000-000 CLAMP,LOCK |
74151-85000-000 |
US $3.72 |
||
|
27
|
27
03511-05163-000
Screw
|
03511-05163-000 |
— | ||
| replacement | |||||
|
27
|
27
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
28
|
28
74172-80000-000
パッド
|
74172-80000-000 |
— | ||
| replacement | |||||
|
28
|
28
61544-94500-000 PAD |
61544-94500-000 |
from US $0.99 |
||
|
29
|
29
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
30
|
30
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
30
|
30
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
31
|
31
74400-70A00-000 LEVER ASSY,HTR CONT |
74400-70A00-000 |
US $91.20 |
||
|
32
|
32
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
32
|
32
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
33
|
33
74417-60A00-000 KNOB,CONTROL LEVER |
74417-60A00-000 |
US $1.60 |
||
|
34
|
34
74512-83000-000 WIRE,WATER VALVE CONTROLL:745 |
74512-83000-000 |
US $10.88 |
||
|
35
|
35
74513-83000-000 WIRE,CIRC/FRESH CONTROL(L:775)L:775 |
74513-83000-000 |
US $2.13 |
||
|
36
|
36
74514-83000-000 WIRE,ROOM&DEF CONTROL L:521L:521 |
74514-83000-000 |
US $2.13 |
||
|
37
|
37
82191-50E00-000 GROMMET,LATCH RELEASE CABLE |
82191-50E00-000 |
US $3.52 |
||
