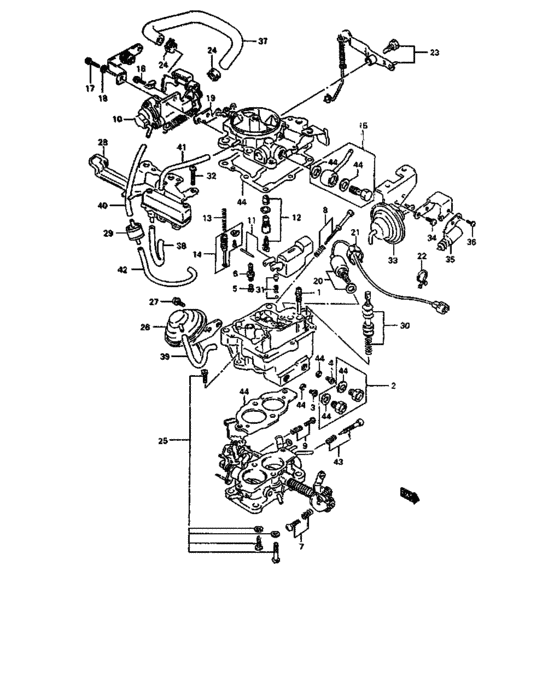

Carburetor (CARBURETOR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-83110-000
CARBURETOR ASSY
|
13200-83110-000 |
— | ||
|
1
|
1
13252-83000-000 JET ASSY,SLOW |
13252-83000-000 |
US $14.06 |
||
|
2
|
2
13374-821T0-000 PLUG SET |
13374-821T0-000 |
US $14.65 |
||
|
3
|
3
09491-99001-000
JET,1ST MAIN
|
09491-99001-000 |
— | ||
|
4
|
4
09491-21022-000
JET,2ND MAIN
|
09491-21022-000 |
— | ||
|
5
|
5
09491-55005-000
JET,MAIN
|
09491-55005-000 |
— | ||
|
6
|
6
13263-82100-000
VALVE ASSY,POWER
|
13263-82100-000 |
— | ||
|
7
|
7
13275-852T0-000 SCREW SET,THROTTLE ADJUST |
13275-852T0-000 |
US $10.97 |
||
|
8
|
8
13275-821T0-000
Screw set,throttle adjust
|
13275-821T0-000 |
— | ||
|
9
|
9
13272-821T0-000
Screw set, idle adjust
|
13272-821T0-000 |
— | ||
|
10
|
10
13212-83090-000
ADAPTER
|
13212-83090-000 |
— | ||
|
11
|
11
13250-822T0-000
FLOAT SET
|
13250-822T0-000 |
— | ||
|
12
|
12
13214-82100-000 VALVE ASSY,NEEDLE |
13214-82100-000 |
US $29.62 |
||
|
13
|
13
13219-82640-000
SPRING,POWER PISTON
|
13219-82640-000 |
— | ||
|
14
|
14
13320-821T0-000
VALVE SET,POWER
|
13320-821T0-000 |
— | ||
|
15
|
15
13274-830T0-000
Nipple set,union
|
13274-830T0-000 |
— | ||
|
16
|
16
13225-82100-000
SCREW
|
13225-82100-000 |
— | ||
|
17
|
17
02112-35203-000
Screw
|
02112-35203-000 |
— | ||
| replacement | |||||
|
17
|
17
02112-3520B-000 SCREW |
02112-3520B-000 |
from US $2.21 |
||
|
18
|
18
13238-02100-000
Washer
|
13238-02100-000 |
— | ||
|
21
|
21
13254-83090-000 CLAMP |
13254-83090-000 |
US $4.82 |
||
|
22
|
22
09408-00020-000 CLIPClamp, lead wire |
09408-00020-000 |
US $9.90 |
||
|
23
|
23
13345-823T0-000
Lever set
|
13345-823T0-000 |
— | ||
| replacement | |||||
|
23
|
23
13345-820T0-000
LEVER SET
|
13345-820T0-000 |
— | ||
|
24
|
24
09401-13407-000
クリップ
|
09401-13407-000 |
— | ||
| replacement | |||||
|
24
|
24
09401-13419-000 CLIP |
09401-13419-000 |
from US $1.60 |
||
|
25
|
25
13390-821T0-000
SCREW SET
|
13390-821T0-000 |
— | ||
|
26
|
26
13330-82100-000
DIAPHRAGM ASSY
|
13330-82100-000 |
— | ||
|
27
|
27
02112-36123-000
Screw
|
02112-36123-000 |
— | ||
| replacements | |||||
|
27
|
27
02112-3612B-000 SCREW |
02112-3612B-000 |
US $13.60 |
||
|
27
|
27
02112-3612A-000 SCREW |
02112-3612A-000 |
from US $0.80 |
||
|
28
|
28
13320-83011-000
Valve assy
|
13320-83011-000 |
— | ||
|
29
|
29
18115-83010-000
JET,50CC
|
18115-83010-000 |
— | ||
|
30
|
30
13355-821T0-000 PLUNGER SET |
13355-821T0-000 |
US $25.09 |
||
|
31
|
31
13245-830T0-000 VALVE SET,CHECK |
13245-830T0-000 |
US $15.06 |
||
|
32
|
32
02112-35253-000
Screw
|
02112-35253-000 |
— | ||
| replacement | |||||
|
32
|
32
02112-3525B-000 SCREW |
02112-3525B-000 |
from US $2.21 |
||
|
33
|
33
13360-83000-000
Diaphragm assy
|
13360-83000-000 |
— | ||
| replacement | |||||
|
33
|
33
13360-83020-000
DIAPHRAGM ASSY
|
13360-83020-000 |
— | ||
|
34
|
34
02112-35083-000
Screw, cap steering lock
|
02112-35083-000 |
— | ||
| replacement | |||||
|
34
|
34
02112-3508B-000 SCREW |
02112-3508B-000 |
from US $1.87 |
||
|
35
|
35
13350-83090-000
Switch assy
|
13350-83090-000 |
— | ||
|
36
|
36
02112-34063-000
Screw
|
02112-34063-000 |
— | ||
| replacement | |||||
|
36
|
36
02112-3406A-000 SCREW |
02112-3406A-000 |
from US $0.76 |
||
|
37
|
37
13341-83010-000
HOSE
|
13341-83010-000 |
— | ||
|
38
|
38
09355-40805-600 HOSE(4X8X600) |
09355-40805-600 |
from US $6.24 |
||
|
39
|
39
09355-35754-600
ホース,3.5X7.5X600
|
09355-35754-600 |
— | ||
| replacements | |||||
|
39
|
39
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
39
|
39
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
40
|
40
09355-35754-600
ホース,3.5X7.5X600
|
09355-35754-600 |
— | ||
| replacements | |||||
|
40
|
40
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
40
|
40
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
41
|
41
09355-35754-600
ホース,3.5X7.5X600
|
09355-35754-600 |
— | ||
| replacements | |||||
|
41
|
41
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
41
|
41
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
42
|
42
09355-35754-600
ホース,3.5X7.5X600
|
09355-35754-600 |
— | ||
| replacements | |||||
|
42
|
42
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
42
|
42
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
43
|
43
13270-821T0-000
SCREW SET,IDLE ADJUST
|
13270-821T0-000 |
— | ||
|
44
|
44
13380-820T0-000
GASKET SET,CARB
|
13380-820T0-000 |
— | ||
