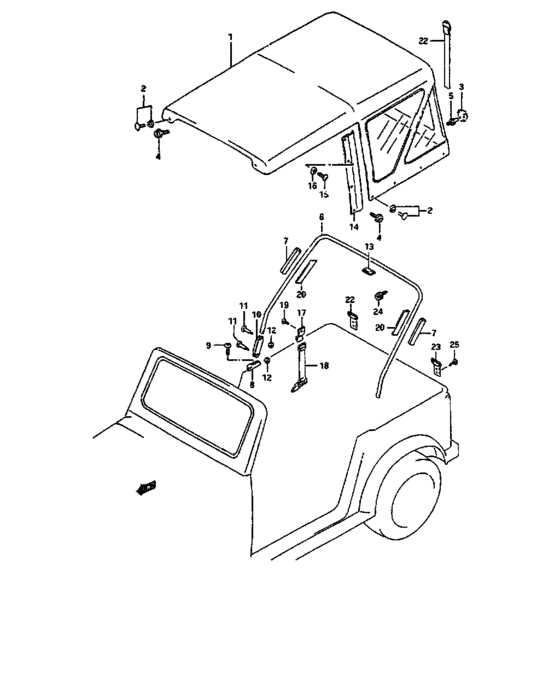

Deck top (Q) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78310-83216-55M
TOP ASSY,DECK
<-78310-83216-5BA |
78310-83216-55M |
— | ||
|
1
|
1
78310-83216-6ER
DECK ASSY,TOP
<-78310-83216-5MF |
78310-83216-6ER |
— | ||
|
1
|
1
78310-57C00-B39
Top assy, deck
SPECIAL |
78310-57C00-B39 |
— | ||
|
2
|
2
79100-63860-000
ホックセット(メッキ)
|
79100-63860-000 |
— | ||
| replacement | |||||
|
2
|
2
79100-63861-000 HOOK SET |
79100-63861-000 |
US $13.60 |
||
|
3
|
3
79133-63041-000 FEMALE,RR HOOK |
79133-63041-000 |
US $8.64 |
||
|
4
|
4
78491-80011-000
メール,トップデッキフック
|
78491-80011-000 |
— | ||
| replacement | |||||
|
4
|
4
78490-82CA2-000 MALE,TOP DECK FR HOOK |
78490-82CA2-000 |
US $1.52 |
||
|
5
|
5
79134-73002-000 HOOK,MALE TOP DECK |
79134-73002-000 |
US $1.52 |
||
|
6
|
6
78470-50C00-000 FRAME,TOP BOW RR |
78470-50C00-000 |
US $281.20 |
||
|
7
|
7
78483-80301-000
CUSHION,TOP BOW,UPPER
~JSA0SJ70000408835 |
78483-80301-000 |
— | ||
|
8
|
8
78481-80001-000 MALE,RR TOPBOW HNG |
78481-80001-000 |
US $14.74 |
||
|
9
|
9
02112-06303-000
Screw
|
02112-06303-000 |
— | ||
| replacements | |||||
|
9
|
9
02112-0630B-000 SCREW |
02112-0630B-000 |
US $0.76 |
||
|
9
|
9
02112-0630A-000 SCREW |
02112-0630A-000 |
from US $0.80 |
||
|
10
|
10
78485-80000-000 FEMALE,RR TOP BOW HINGE |
78485-80000-000 |
US $4.86 |
||
|
11
|
11
78488-80000-000
ピン,トップボウヒンジ
|
78488-80000-000 |
— | ||
| replacement | |||||
|
11
|
11
78488-8000V-000 PIN,TOPBOW HINGE |
78488-8000V-000 |
US $1.82 |
||
|
12
|
12
08313-10063-000
Nut
|
08313-10063-000 |
— | ||
| replacements | |||||
|
12
|
12
08313-1006B-000 NUT |
08313-1006B-000 |
from US $0.80 |
||
|
12
|
12
08313-1006A-000 NUT |
08313-1006A-000 |
from US $0.80 |
||
|
13
|
13
78476-80002-000
PAT,RR TOPBOW
~JSA0SJ70000408835 |
78476-80002-000 |
— | ||
|
14
|
14
78411-80101-000 RAIL,DECK TOP SIDE |
78411-80101-000 |
US $27.36 |
||
|
15
|
15
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
15
|
15
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
15
|
15
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
16
|
16
09161-04011-000 WASHER(3.8X12X0.8) |
09161-04011-000 |
US $1.52 |
||
|
17
|
17
76421-80001-000
HOOK,TOP BOW
|
76421-80001-000 |
— | ||
|
18
|
18
09462-00040-000 BANDBand, battery |
09462-00040-000 |
from US $8.99 |
||
|
19
|
19
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
19
|
19
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
20
|
20
78484-80300-000
SHEET,CUSHION TOPBOW UPPER
~JSA0SJ70000408835 |
78484-80300-000 |
— | ||
|
21
|
21
78490-83000-5EB BAND,TOP BOW |
78490-83000-5EB |
US $58.40 |
||
|
22
|
22
78416-83000-000 BRACKET,TENSION BAND |
78416-83000-000 |
US $16.80 |
||
|
23
|
23
78416-83000-000 BRACKET,TENSION BAND |
78416-83000-000 |
US $16.80 |
||
|
24
|
24
78491-83000-000
メール
|
78491-83000-000 |
— | ||
| replacement | |||||
|
24
|
24
78491-8300V-000 MALE,TOPBOW RR |
78491-8300V-000 |
US $2.94 |
||
|
25
|
25
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
25
|
25
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
25
|
25
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
