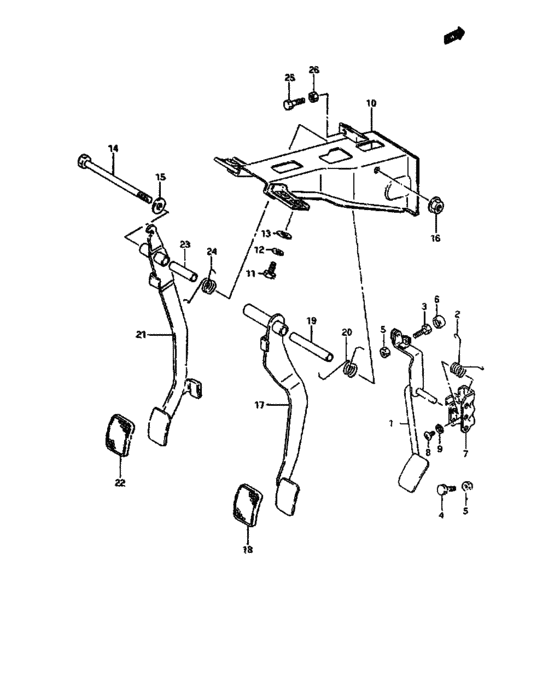

Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-83002-000
ペダル,アクセレレータ
|
49410-83002-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-83003-000
PEDAL,ACCELERATOR
|
49410-83003-000 |
— | ||
|
2
|
2
09448-21003-000
スプリング
|
09448-21003-000 |
— | ||
| replacement | |||||
|
2
|
2
09448-21005-000 SPRING |
09448-21005-000 |
US $36.10 |
||
|
3
|
3
01500-06253-000 BoltBolt, fuel injection bracket <-09100-06055 |
01500-06253-000 |
US $2.49 |
||
| replacement | |||||
|
3
|
3
01500-0625A-000 BOLTBolt, gear shift arm <-09100-06055 |
01500-0625A-000 |
from US $0.80 |
||
|
4
|
4
01500-06253-000 BoltBolt, fuel injection bracket <-09100-06055 |
01500-06253-000 |
US $2.49 |
||
| replacement | |||||
|
4
|
4
01500-0625A-000 BOLTBolt, gear shift arm <-09100-06055 |
01500-0625A-000 |
from US $0.80 |
||
|
5
|
5
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
5
|
5
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
6
|
6
09251-09002-000
CAP(OD:13.6)
|
09251-09002-000 |
— | ||
| replacement | |||||
|
6
|
6
09251-09008-000 Cap(Od:13.6) |
09251-09008-000 |
from US $5.61 |
||
|
7
|
7
49511-80100-000
ブラケット,アクセレレータ
->49511-80101 |
49511-80100-000 |
— | ||
| replacement | |||||
|
7
|
7
49511-80102-000 BRACKET,ACCELERATOR->49511-80101 |
49511-80102-000 |
US $8.10 |
||
|
8
|
8
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
8
|
8
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
9
|
9
08321-01063-000
Washer, lock
|
08321-01063-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
10
|
10
49710-70A01-000
Bracket,pedal
|
49710-70A01-000 |
— | ||
|
11
|
11
01500-08203-000
Bolt
|
01500-08203-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
12
|
12
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
12
|
12
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
13
|
13
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
13
|
13
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
13
|
13
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
14
|
14
09100-10056-000 BOLT(10X160) |
09100-10056-000 |
from US $10.33 |
||
|
15
|
15
08322-01103-000
Washer
|
08322-01103-000 |
— | ||
| replacements | |||||
|
15
|
15
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
15
|
15
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
16
|
16
08316-20103-000
Nut
|
08316-20103-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
|
17
|
17
49610-80100-000 PEDAL,BRAKE |
49610-80100-000 |
US $257.60 |
||
|
18
|
18
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
18
|
18
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
19
|
19
09180-10097-000 SPACER(10.1X13X88) |
09180-10097-000 |
US $42 |
||
|
20
|
20
09448-31029-000 SPRING |
09448-31029-000 |
US $38.60 |
||
|
21
|
21
49810-70A00-000 PEDAL,CLUTCH |
49810-70A00-000 |
US $42.69 |
||
|
22
|
22
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
22
|
22
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
23
|
23
09180-10018-000
SPACER(10.1X13X56)
|
09180-10018-000 |
— | ||
|
24
|
24
09448-29004-000 SPRING |
09448-29004-000 |
from US $2.12 |
||
|
25
|
25
01500-06253-000 BoltBolt, fuel injection bracket <-09100-06255 |
01500-06253-000 |
US $2.49 |
||
| replacement | |||||
|
25
|
25
01500-0625A-000 BOLTBolt, gear shift arm <-09100-06255 |
01500-0625A-000 |
from US $0.80 |
||
|
26
|
26
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
26
|
26
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
26
|
26
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
