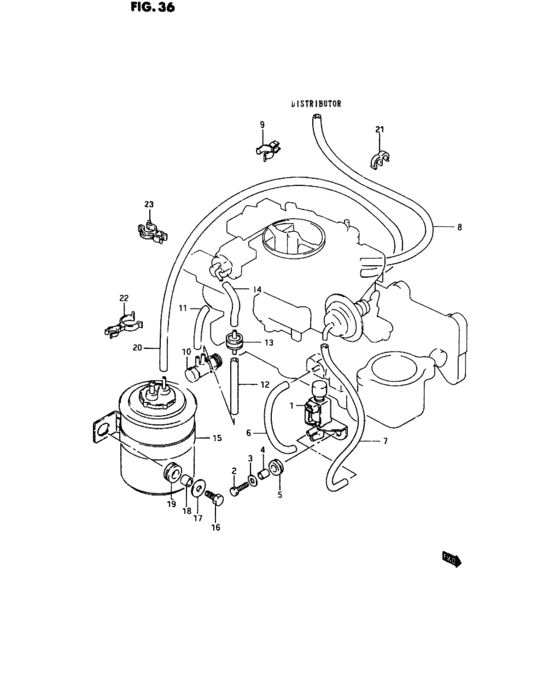

Emission control (EC,Saudi Arabia) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-60A00-000
VALVE,VACUUM SWITCHING
|
18117-60A00-000 |
— | ||
|
2
|
2
09136-06133-000 BOLT(6X16)Screw |
09136-06133-000 |
US $12.50 |
||
|
3
|
3
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
4
|
4
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
5
|
5
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
6
|
6
09355-35754-601
HOSE(3.5X7.5X601)
L:601->90 |
09355-35754-601 |
— | ||
| replacement | |||||
|
6
|
6
09355-35006-601 Hose(3.5X7.5X601)L:601->90 |
09355-35006-601 |
from US $5.78 |
||
|
7
|
7
09355-35754-601
HOSE(3.5X7.5X601)
L:601->150 |
09355-35754-601 |
— | ||
| replacement | |||||
|
7
|
7
09355-35006-601 Hose(3.5X7.5X601)L:601->150 |
09355-35006-601 |
from US $5.78 |
||
|
8
|
8
09355-35754-601
HOSE(3.5X7.5X601)
L:601->320 |
09355-35754-601 |
— | ||
| replacement | |||||
|
8
|
8
09355-35006-601 Hose(3.5X7.5X601)L:601->320 |
09355-35006-601 |
from US $5.78 |
||
|
9
|
9
09408-00060-000 CLAMP |
09408-00060-000 |
US $13.20 |
||
|
10
|
10
18123-80400-000 VALVE,BIMETAL VACUUM SWITCHING |
18123-80400-000 |
US $113.60 |
||
|
11
|
11
09355-35754-601
HOSE(3.5X7.5X601)
L:601->70 |
09355-35754-601 |
— | ||
| replacement | |||||
|
11
|
11
09355-35006-601 Hose(3.5X7.5X601)L:601->70 |
09355-35006-601 |
from US $5.78 |
||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
L:601->90 |
09355-35754-601 |
— | ||
| replacement | |||||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)L:601->90 |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
18115-83010-000
JET,50CC
|
18115-83010-000 |
— | ||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:601->50 |
09355-35754-601 |
— | ||
| replacement | |||||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:601->50 |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
18560-80C00-000
CANISTER
|
18560-80C00-000 |
— | ||
|
16
|
16
01500-08203-000
Bolt
|
01500-08203-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
17
|
17
09160-08133-000
Washer
|
09160-08133-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) |
09160-08151-000 |
from US $0.91 |
||
|
18
|
18
09180-08185-000 SPACER(8.5X12X6) |
09180-08185-000 |
US $23.20 |
||
|
19
|
19
09320-12011-000
CUSHION
|
09320-12011-000 |
— | ||
| replacement | |||||
|
19
|
19
09320-12090-000 Cushion(11.8X25X7.5) |
09320-12090-000 |
from US $1.67 |
||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
L:601->525 |
09355-35754-601 |
— | ||
| replacement | |||||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601)L:601->525 |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
22
|
22
09408-00069-000 CLIPClip |
09408-00069-000 |
US $18 |
||
|
23
|
23
09408-00142-000 CLIP |
09408-00142-000 |
US $17.70 |
||
