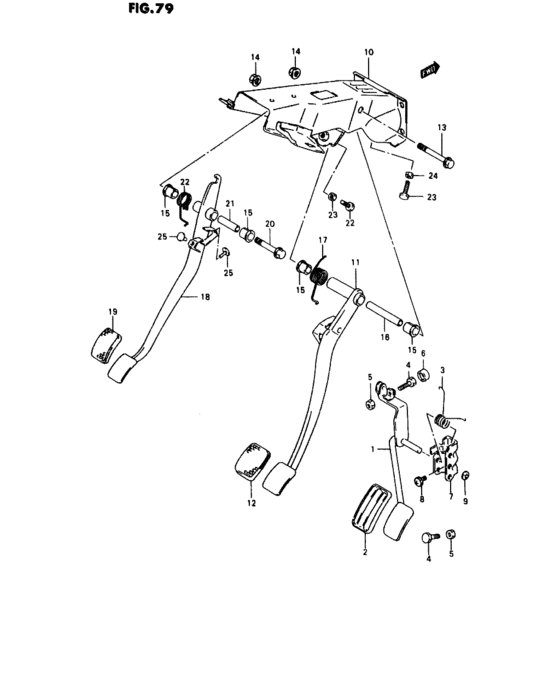

Pedal and pedal bracket (RHD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-82CA0-000
ペダル,アクセレレータ
TYPE 8,->49410-82CA1 |
49410-82CA0-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-82CA2-000 PEDAL,ACCELERATORTYPE 8,->49410-82CA1 |
49410-82CA2-000 |
US $30.36 |
||
|
1
|
1
49410-82CA1-000
ペダル,アクセレレータ
TYPE 9 |
49410-82CA1-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-82CA2-000 PEDAL,ACCELERATORTYPE 9 |
49410-82CA2-000 |
US $30.36 |
||
|
1
|
1
49410-70AA1-000
PEDAL,ACCELERATOR
|
49410-70AA1-000 |
— | ||
|
2
|
2
49451-80100-000 PAD,ACCELERATOR PEDAL |
49451-80100-000 |
US $11.52 |
||
|
3
|
3
09448-21005-000 SPRING |
09448-21005-000 |
US $36.10 |
||
|
4
|
4
01500-06253-000 BoltBolt, fuel injection bracket |
01500-06253-000 |
US $2.49 |
||
| replacement | |||||
|
4
|
4
01500-0625A-000 BOLTBolt, gear shift arm |
01500-0625A-000 |
from US $0.80 |
||
|
5
|
5
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
5
|
5
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
6
|
6
09251-09002-000
CAP(OD:13.6)
|
09251-09002-000 |
— | ||
| replacement | |||||
|
6
|
6
09251-09008-000 Cap(Od:13.6) |
09251-09008-000 |
from US $5.61 |
||
|
7
|
7
49511-80101-000
ブラケット,アクセレレータ
|
49511-80101-000 |
— | ||
| replacement | |||||
|
7
|
7
49511-80102-000 BRACKET,ACCELERATOR |
49511-80102-000 |
US $8.10 |
||
|
8
|
8
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
8
|
8
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
9
|
9
09148-09001-000 NUT |
09148-09001-000 |
from US $2.02 |
||
|
10
|
10
49710-70AA0-000
BRACKET,PEDAL
|
49710-70AA0-000 |
— | ||
|
11
|
11
49610-70AA0-000
Pedal comp,brake
|
49610-70AA0-000 |
— | ||
|
12
|
12
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
12
|
12
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
13
|
13
09100-10226-000 BOLT(10X85) |
09100-10226-000 |
US $14.40 |
||
|
14
|
14
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
15
|
15
09307-13005-000 BUSHBushing |
09307-13005-000 |
from US $2.72 |
||
|
16
|
16
09180-10121-000 SPACER(10.1X13X73.8) |
09180-10121-000 |
US $30.20 |
||
|
17
|
17
49691-70AA0-000
SPRING,BRAKE PEDAL
|
49691-70AA0-000 |
— | ||
|
18
|
18
49810-70AB0-000
PEDAL,CLUTCH
|
49810-70AB0-000 |
— | ||
|
19
|
19
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
19
|
19
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
20
|
20
09100-10240-000 BOLT(10X62) |
09100-10240-000 |
US $19.10 |
||
|
21
|
21
09180-10122-000 SPACER(10.1X13X50.8) |
09180-10122-000 |
US $30.20 |
||
|
22
|
22
49891-70AA0-000 SPRING,CLUTCH PEDAL |
49891-70AA0-000 |
US $4.89 |
||
|
23
|
23
09100-06088-000 BOLT(6X30) |
09100-06088-000 |
US $22.40 |
||
|
24
|
24
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
24
|
24
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
25
|
25
09321-06026-000 CUSHION |
09321-06026-000 |
from US $1.60 |
||
