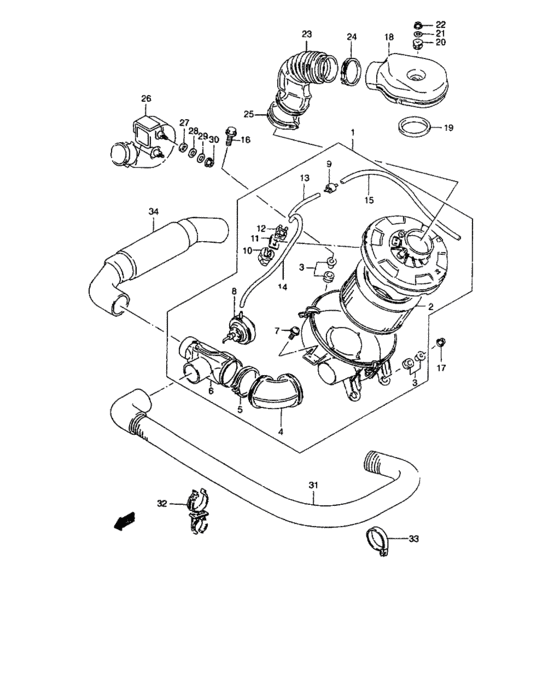

Air cleaner (W/CARBURETOR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-83X50-000
Cleaner assy, air
W/WARM AIR |
13700-83X50-000 |
— | ||
|
1
|
1
13700-83001-000
CLEANER ASSY,AIR
N/WARM AIR |
13700-83001-000 |
— | ||
|
2
|
2
13780-83000-000 ELEMENT,AIR CLEANER |
13780-83000-000 |
US $38.40 |
||
| replacement | |||||
|
2
|
2
99000-990YJ-002
Filter, air cle
|
99000-990YJ-002 |
— | ||
|
3
|
3
13813-61AT0-000 GROMMET SET,AIR CLEANER |
13813-61AT0-000 |
US $6.56 |
||
|
4
|
4
13731-83001-000 JOINT,WARM AIR VALVE |
13731-83001-000 |
US $27.36 |
||
|
5
|
5
09402-70306-000
Clamp
|
09402-70306-000 |
— | ||
| replacement | |||||
|
5
|
5
09402-70306-XC0 CLAMP |
09402-70306-XC0 |
from US $8.87 |
||
|
6
|
6
13740-83030-000
VALVE,WARM AIR
W/WARM AIR |
13740-83030-000 |
— | ||
|
6
|
6
13740-83010-000
INTAKE,AIR
N/WARM AIR |
13740-83010-000 |
— | ||
|
7
|
7
02112-76163-000
Screw
|
02112-76163-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-7616A-000 SCREW |
02112-7616A-000 |
from US $0.96 |
||
|
8
|
8
13748-83030-000
ACTUATOR,WARM AIR VALVE
W/WARM AIR |
13748-83030-000 |
— | ||
|
9
|
9
13715-82110-000
Valve,check
W/WARM AIR |
13715-82110-000 |
— | ||
|
10
|
10
13749-82111-000 SENSOR ASSY,THERMOW/WARM AIR |
13749-82111-000 |
US $75.25 |
||
|
11
|
11
13818-82000-000
GASKET,THERMO SENSOR
W/WARM AIR |
13818-82000-000 |
— | ||
|
12
|
12
13819-83000-000
Clamp,thermo sensor
W/WARM AIR |
13819-83000-000 |
— | ||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
W/WARM AIR |
09355-35754-601 |
— | ||
| replacement | |||||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)W/WARM AIR |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
W/WARM AIR |
09355-35754-601 |
— | ||
| replacement | |||||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)W/WARM AIR |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
W/WARM AIR |
09355-35754-601 |
— | ||
| replacement | |||||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)W/WARM AIR |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
02162-06253-000
Bolt
|
02162-06253-000 |
— | ||
| replacement | |||||
|
16
|
16
02162-0625A-000 SCREW |
02162-0625A-000 |
from US $0.76 |
||
|
17
|
17
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
18
|
18
13830-83002-000
CASE,CARB AIR INTAKE
|
13830-83002-000 |
— | ||
|
19
|
19
13885-83000-000 SEAL,CARB AIR INTAKE CASE |
13885-83000-000 |
US $2.13 |
||
|
20
|
20
09320-09034-000
GROMMET
|
09320-09034-000 |
— | ||
| replacement | |||||
|
20
|
20
09320-09063-000 Cushion |
09320-09063-000 |
from US $4.22 |
||
|
21
|
21
09169-06057-000 WASHER |
09169-06057-000 |
from US $1.76 |
||
|
22
|
22
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
13881-83020-000
HOSE,AIR CLEANER OUTLET
|
13881-83020-000 |
— | ||
|
24
|
24
09402-68208-000 CLAMP |
09402-68208-000 |
from US $6.72 |
||
|
25
|
25
09402-82202-000
Clamp
|
09402-82202-000 |
— | ||
| replacement | |||||
|
25
|
25
09402-82208-000 CLAMP |
09402-82208-000 |
from US $9.62 |
||
|
26
|
26
13820-80C00-000
CASE,AIR CLNR SUCTION
|
13820-80C00-000 |
— | ||
|
27
|
27
09320-12502-000
Cushion
|
09320-12502-000 |
— | ||
|
28
|
28
09320-10003-000 CUSHIONCushion |
09320-10003-000 |
from US $3.25 |
||
|
29
|
29
09160-06114-000 WASHER(6.5X24X1.2)Washer (6.5x24x1.2) |
09160-06114-000 |
from US $0.98 |
||
|
30
|
30
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
31
|
31
13840-83011-000
HOSE,WARM AIR
W/WARM AIR |
13840-83011-000 |
— | ||
|
32
|
32
13860-83000-000
CLAMP ASSY,WARM AIR HOSE
W/WARM AIR |
13860-83000-000 |
— | ||
|
33
|
33
09403-48401-000 CLAMPW/WARM AIR |
09403-48401-000 |
US $2.13 |
||
|
34
|
34
13870-83010-000
HOSE,COOL AIR
|
13870-83010-000 |
— | ||
