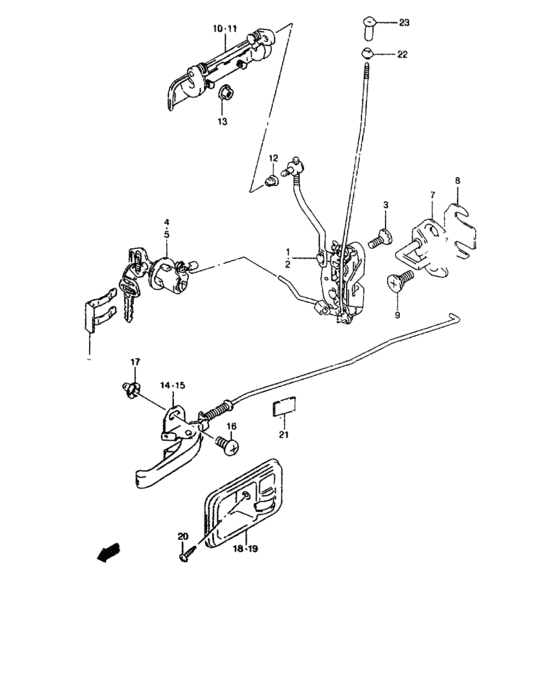

Fr dr lock (FR DR LOCK) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-84C01-000
LATCH ASSY,FR DR,R
|
82201-84C01-000 |
— | ||
|
2
|
2
82202-84C01-000 LATCH ASSY,FR DR,L |
82202-84C01-000 |
US $109.30 |
||
|
3
|
3
09137-06024-000 SCREW(6X18) |
09137-06024-000 |
US $1.28 |
||
|
4
|
4
82200-80851-000 CYLINDER,DR LOCK |
82200-80851-000 |
US $53.73 |
||
|
4
|
4
82200-81810-000
Cylinder, back door lock
Saudi Arabia,JSAOSJ80000120167~,JSAOSJ80V00120243~ |
82200-81810-000 |
— | ||
|
5
|
5
82200-80861-000 CYLINDER,FR DR LOCK,L |
82200-80861-000 |
US $53.73 |
||
|
5
|
5
82200-81820-000
Cylinder, front door lock lh
Saudi Arabia,JSAOSJ80000120167~,JSAOSJ80V00120243~ |
82200-81820-000 |
— | ||
|
6
|
6
89345-60B00-000 CLIP,FUEL FILLER LID KEY LOCK |
89345-60B00-000 |
US $2.13 |
||
|
7
|
7
82610-84C01-000
Striker,front door latch
|
82610-84C01-000 |
— | ||
|
8
|
8
82681-80100-000 SPACER,STRIKER |
82681-80100-000 |
US $1.60 |
||
|
9
|
9
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
9
|
9
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
9
|
9
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
|
10
|
10
82810-83000-000 HANDLE,DOOR OUTSIDE,R |
82810-83000-000 |
US $79.20 |
||
|
11
|
11
82820-83000-000 HANDLE,DOOR OUTSIDE,L |
82820-83000-000 |
US $79.04 |
||
|
12
|
12
82891-80100-000 SNAP,JOINT |
82891-80100-000 |
US $2.40 |
||
|
13
|
13
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
14
|
14
83110-84C01-5ES
HANDLE,DOOR INSIDE,R
TYPE 8 |
83110-84C01-5ES |
— | ||
|
14
|
14
83110-84C01-T01 HANDLE,DOOR INSIDE,RTYPE 9 |
83110-84C01-T01 |
US $22.26 |
||
|
15
|
15
83130-84C01-5ES HANDLE,DOOR INSIDE,LTYPE 8 |
83130-84C01-5ES |
US $21.90 |
||
|
15
|
15
83130-84C01-T01 HANDLE,DOOR INSIDE,LTYPE 9 |
83130-84C01-T01 |
US $22.26 |
||
|
16
|
16
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
17
|
17
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
18
|
18
78471-79001-5ES BEZEL,DR INSIDE HDL,RTYPE 8 |
78471-79001-5ES |
US $16.80 |
||
|
18
|
18
78471-79001-T01
BEZEL,DR INSIDE HDL,R
TYPE 9 |
78471-79001-T01 |
— | ||
|
19
|
19
78481-79001-5ES BEZEL,DR INSIDE HDL,LTYPE 8 |
78481-79001-5ES |
US $16.80 |
||
|
19
|
19
78481-79001-T01 BEZEL,DR INSIDE HDL,LTYPE 9 |
78481-79001-T01 |
US $5.89 |
||
|
20
|
20
03142-04083-000
スクリュ
|
03142-04083-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
21
|
21
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
22
|
22
78242-61000-000 CAP,LOCK KNOBJA |
78242-61000-000 |
US $1.52 |
||
|
23
|
23
78241-60002-000 KNOB |
78241-60002-000 |
US $1.52 |
||
