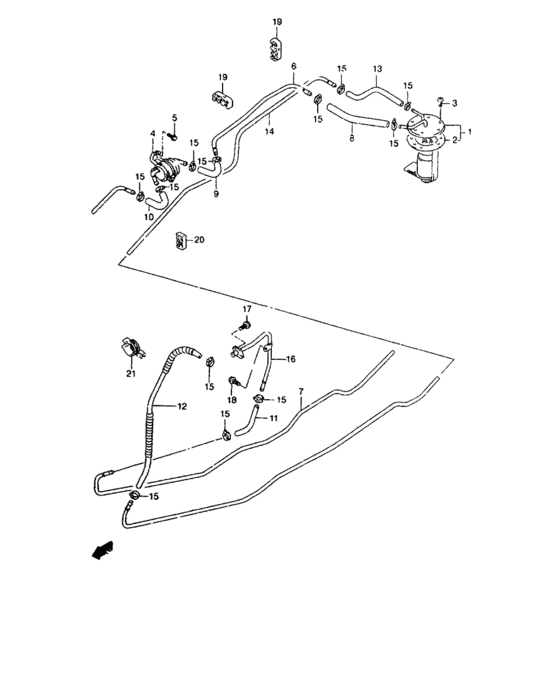

Fuel Pump (W/FUEL INJECTION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-80C30-000
PUMP ASSY,FUEL
|
15100-80C30-000 |
— | ||
|
2
|
2
15111-85550-000 GASKET,FUEL PUMP |
15111-85550-000 |
US $24.80 |
||
|
3
|
3
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
4
|
4
15410-80C30-000
FILTER,FUEL
|
15410-80C30-000 |
— | ||
|
5
|
5
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
5
|
5
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
6
|
6
15811-80C00-000
Pipe,fuel(tank to filter)
|
15811-80C00-000 |
— | ||
|
7
|
7
15821-80C00-000
Pipe,fuel(filter to engine)
|
15821-80C00-000 |
— | ||
|
8
|
8
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600->340 |
09356-75147-600 |
US $51.68 |
||
|
9
|
9
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600->170 |
09356-75147-600 |
US $51.68 |
||
|
10
|
10
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600->170 |
09356-75147-600 |
US $51.68 |
||
|
11
|
11
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600->290 |
09356-75147-600 |
US $51.68 |
||
|
12
|
12
15870-61A00-000 HOSE,RETURN ENGINE TO PIPE |
15870-61A00-000 |
US $38.40 |
||
|
12
|
12
15870-61A20-000
Hose comp,return(eng to pipe)
Brazil |
15870-61A20-000 |
— | ||
|
13
|
13
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600->380 |
09356-58127-600 |
from US $15.84 |
||
|
13
|
13
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) Brazil,L:600->380 |
09356-55117-600 |
US $69.60 |
||
|
14
|
14
15861-80C00-000
Pipe,fuel return
|
15861-80C00-000 |
— | ||
|
15
|
15
09402-15511-000
New Genuine Part
|
09402-15511-000 |
— | ||
| replacement | |||||
|
15
|
15
09402-17511-000 CLAMP |
09402-17511-000 |
US $52.60 |
||
|
16
|
16
15830-80C10-000
Joint, fuel main
|
15830-80C10-000 |
— | ||
|
17
|
17
01570-06163-000
Bolt
|
01570-06163-000 |
— | ||
| replacements | |||||
|
17
|
17
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
|
17
|
17
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.80 |
||
|
18
|
18
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
18
|
18
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
15893-60A11-000 CLAMP,FUEL PIPE |
15893-60A11-000 |
US $2.24 |
||
|
20
|
20
15895-60A11-000 CLAMP,FUEL PIPE |
15895-60A11-000 |
US $2.56 |
||
|
21
|
21
09408-00063-000 CLAMP |
09408-00063-000 |
US $30.20 |
||
