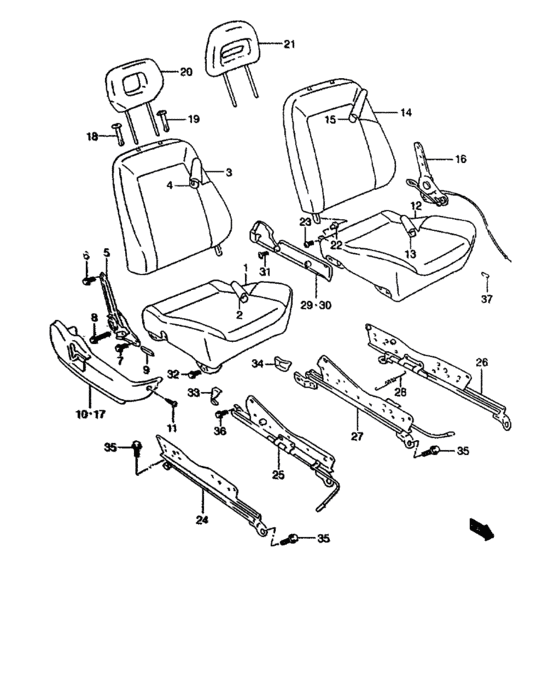

Front seat (JX) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-82C00-000
Cushion sub assy,front,r
|
85105-82C00-000 |
— | ||
|
2
|
2
85180-82C00-F0W
Trim comp,front seat cushion,r
TYPE 8 |
85180-82C00-F0W |
— | ||
|
2
|
2
85180-82C00-F0U
Trim comp,front seat cushion,r
TYPE 8:Israel |
85180-82C00-F0U |
— | ||
|
2
|
2
85180-82C00-J7L
Trim comp,front seat cushion,r
TYPE 9 |
85180-82C00-J7L |
— | ||
|
2
|
2
85180-82C00-J7D
Trim comp,front seat cushion,r
TYPE 9:Israel |
85180-82C00-J7D |
— | ||
|
2
|
2
85180-82C00-K4K
Cover, cushion rh
TYPE 9:Australia:SPECIAL |
85180-82C00-K4K |
— | ||
|
3
|
3
85305-82C00-000
BACK S/ASSY,FR,R
|
85305-82C00-000 |
— | ||
|
4
|
4
85380-82C00-F0W
Trim comp,fr seat back,r
TYPE 8 |
85380-82C00-F0W |
— | ||
|
4
|
4
85380-82C00-F0U
TRIM,FR SEAT BACK,R
TYPE 8:Israel |
85380-82C00-F0U |
— | ||
|
4
|
4
85380-82C00-J7L
Trim comp,front seat back,r
TYPE 9 |
85380-82C00-J7L |
— | ||
|
4
|
4
85380-82C00-J7D
トリム,フロントシートバック,ライト
TYPE 9:Israel |
85380-82C00-J7D |
— | ||
|
4
|
4
85380-82C00-K4K
Cover, back lh
TYPE 9:Australia:SPECIAL |
85380-82C00-K4K |
— | ||
|
5
|
5
85210-82C10-000
Reclining assy, rh
LHD |
85210-82C10-000 |
— | ||
|
5
|
5
85210-82C00-000
RECLINING ASSY,FR SEAT,R
RHD |
85210-82C00-000 |
— | ||
|
6
|
6
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
7
|
7
01570-10253-000
ボルト
|
01570-10253-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-1025A-000 Bolt |
01570-1025A-000 |
US $1.12 |
||
|
8
|
8
01570-10403-000
Bolt, upper
|
01570-10403-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-1040A-000 Bolt |
01570-1040A-000 |
US $1.06 |
||
|
9
|
9
85211-82000-5ES
Knob,recl(black)
|
85211-82000-5ES |
— | ||
| replacement | |||||
|
9
|
9
85211-82000-T01 KNOB,RECL |
85211-82000-T01 |
US $4.05 |
||
|
10
|
10
85221-82C00-5ES
Cover,reclining,r
TYPE 6 |
85221-82C00-5ES |
— | ||
|
10
|
10
85221-82C00-T01
Cover,fr recl,r
TYPE 9 |
85221-82C00-T01 |
— | ||
|
11
|
11
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
12
|
12
85106-82C00-000
CUSHION SUB ASSY,FR,L
|
85106-82C00-000 |
— | ||
|
13
|
13
85680-82C00-F0W
TRIM,FR SEAT CUSHION,L
TYPE 8 |
85680-82C00-F0W |
— | ||
|
13
|
13
85880-82C00-F0U
Cover, cushion lh
TYPE 8:Israel |
85880-82C00-F0U |
— | ||
|
13
|
13
85680-82C00-J7L
Trim comp,front seat cushion,l
TYPE 9 |
85680-82C00-J7L |
— | ||
|
13
|
13
85680-82C00-J7D
トリム,フロントシートクッション,レフト
TYPE 9:Israel |
85680-82C00-J7D |
— | ||
|
13
|
13
85680-82C00-F0U
Trim comp,front seat cushion,l
TYPE 8 |
85680-82C00-F0U |
— | ||
|
13
|
13
85680-82C00-K4K
Cover, cushion lh
TYPE 9:Australia:SPECIAL |
85680-82C00-K4K |
— | ||
|
14
|
14
85306-82C00-000
Back sub assy,front,l
|
85306-82C00-000 |
— | ||
|
15
|
15
85380-82C00-F0W
Trim comp,fr seat back,r
TYPE 8 |
85380-82C00-F0W |
— | ||
|
15
|
15
85380-82C00-F0U
TRIM,FR SEAT BACK,R
TYPE 8:Israel |
85380-82C00-F0U |
— | ||
|
15
|
15
85380-82C00-J7L
Trim comp,front seat back,r
TYPE 9 |
85380-82C00-J7L |
— | ||
|
15
|
15
85380-82C00-J7D
トリム,フロントシートバック,ライト
TYPE 9:Israel |
85380-82C00-J7D |
— | ||
|
15
|
15
85380-82C00-K4K
Cover, back lh
TYPE 9:Australia:SPECIAL |
85380-82C00-K4K |
— | ||
|
16
|
16
85710-82C00-000
Reclining assy,fr seat,l
LHD |
85710-82C00-000 |
— | ||
|
16
|
16
85710-82C10-000
RECLINING ASSY,FR SEAT,L
RHD |
85710-82C10-000 |
— | ||
|
17
|
17
85721-82C00-5ES
Cover,reclining,l
|
85721-82C00-5ES |
— | ||
|
18
|
18
85341-72C10-5PK GUIDE,HEADRESTRAINT,R |
85341-72C10-5PK |
US $5.45 |
||
|
19
|
19
85840-72C10-5PK GUIDE,HEADRESTRAINT,L |
85840-72C10-5PK |
US $15.12 |
||
|
20
|
20
86401-74F10-5GF
HEADRESTRAINT ASSY
TYPE 8 |
86401-74F10-5GF |
— | ||
|
20
|
20
86401-74F10-T02 HEADRESTRAINT ASSYTYPE 9 |
86401-74F10-T02 |
US $112.24 |
||
|
21
|
21
86401-82C20-5GF
Headrestraint assy
TYPE 8,,,2,4,Austria,Israel |
86401-82C20-5GF |
— | ||
|
21
|
21
86401-82C20-T02
Headrestraint assy,fr
TYPE 9,,Germany,Australia,Austria,Israel |
86401-82C20-T02 |
— | ||
|
22
|
22
85291-82C00-000 BUSH |
85291-82C00-000 |
US $2.50 |
||
|
23
|
23
09136-06004-000 SCREW(6X12) |
09136-06004-000 |
from US $0.77 |
||
|
24
|
24
86630-82C20-000
Adjuster,fr seat slide outer,r
RH SEAT |
86630-82C20-000 |
— | ||
|
25
|
25
86610-82C31-000
ADJUSTER,FR SEAT SLIDE INNER,R
LHD RH SEAT |
86610-82C31-000 |
— | ||
|
26
|
26
86830-82C20-000
Adjuster,fr seat slide outer,l
LH SEAT |
86830-82C20-000 |
— | ||
|
27
|
27
86810-82C21-000
Adjuster, outer
LHD LH SEAT |
86810-82C21-000 |
— | ||
|
27
|
27
86810-02C31-000
Adjuster, inner
RHD LH SEAT |
86810-02C31-000 |
— | ||
|
28
|
28
86621-82C00-000
Rod,fr seat slide adj
|
86621-82C00-000 |
— | ||
|
29
|
29
85261-82C00-5ES
カバー,インナアジャスタ,ライト(ブラック)
TYPE 8 |
85261-82C00-5ES |
— | ||
| replacement | |||||
|
29
|
29
85261-82C00-T01
Cover,inner adjuster,r(gray)
TYPE 8 |
85261-82C00-T01 |
— | ||
|
29
|
29
85261-82C00-T01
Cover,inner adjuster,r(gray)
TYPE 9 |
85261-82C00-T01 |
— | ||
|
30
|
30
85761-82C00-5ES
カバー,インナアジャスタ,レフト(ブラック)
TYPE 8 |
85761-82C00-5ES |
— | ||
| replacement | |||||
|
30
|
30
85761-82C00-T01
COVER,INNER ADJ,L
TYPE 8 |
85761-82C00-T01 |
— | ||
|
30
|
30
85761-82C00-T01
COVER,INNER ADJ,L
TYPE 9 |
85761-82C00-T01 |
— | ||
|
31
|
31
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
31
|
31
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
32
|
32
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
32
|
32
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
33
|
33
86735-82C00-5ES
COVER,ADJUSTER INR,RR,R
TYPE 8 |
86735-82C00-5ES |
— | ||
|
33
|
33
86735-82C00-T01
カバー,スライドアジャスタ(グレー)
TYPE 9 |
86735-82C00-T01 |
— | ||
|
34
|
34
86736-82C00-5ES
COVER,ADJUSTER INR RR,L
TYPE 8 |
86736-82C00-5ES |
— | ||
|
34
|
34
86736-82C00-T01 COVER,ADJUSTER INR,RR,LTYPE 9 |
86736-82C00-T01 |
US $5.30 |
||
|
35
|
35
01551-10253-000
Bolt
|
01551-10253-000 |
— | ||
| replacement | |||||
|
35
|
35
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
36
|
36
09103-12020-000
ボルト
|
09103-12020-000 |
— | ||
| replacement | |||||
|
36
|
36
09103-12040-000 BOLT(12X22) |
09103-12040-000 |
US $1.92 |
||
|
37
|
37
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
